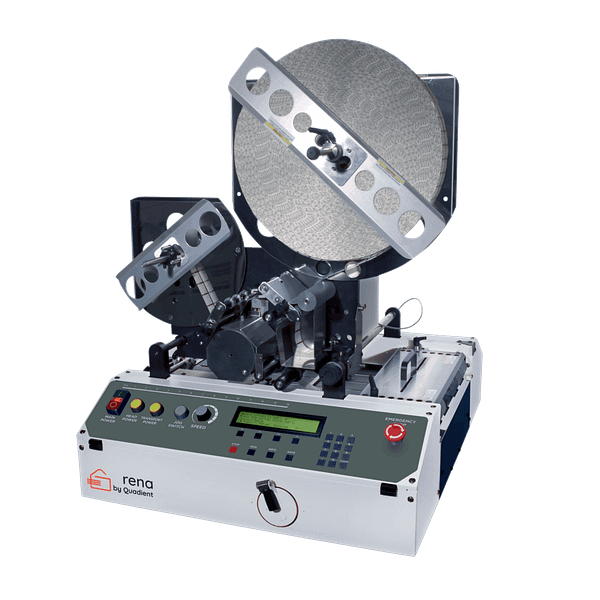

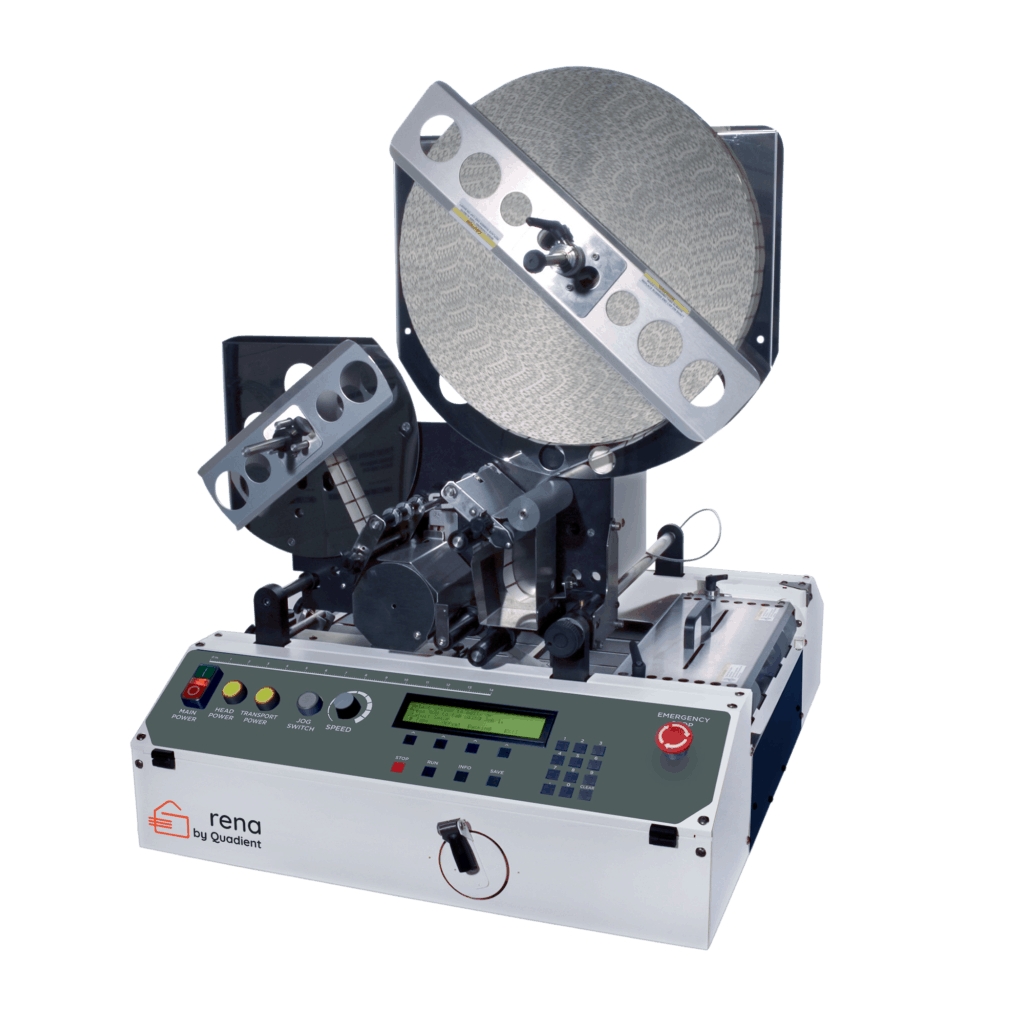

T-950 Tabber/Labeler/Stamp Affixer

  • Tab Compatibility
    Clear, Translucent, Paper Tabs, and Postage Stamps
  • Label Compatibility
    Up to 4″ x 7″ (Roll or Fan Fold)
  • Speed
    Up to 35,000 pieces/hr
  • Roll Compatibility
    Up to 19″ Diameter (3″ Core)

The T-950 Tabber is the best high-speed system we have ever offered. It doesn’t just have high speed ratings like the competition; it runs and runs smoothly at over 35,000 per hour. Just watch our video. While the competition is vibrating and thrumming at less than 30,000 per hour, the T-950 runs like a fine European sports car. Fast, but controlled. Stamps? Check. Labels? Yep. Clear, Translucent, or Paper tabs? Of course. It can apply up to three tabs per pass and can apply multiple stamps at one time – something no other system can do. It has a precision cam system that raises the entire head to handle material 1/2″ thick. It also tabs from the front or back of the transport. The massive 19” reel capacity holds enough tabs to run uninterrupted for an hour straight – true productivity.

Features

  • Folded Self Mailers

    Folded Self Mailers

    The T-950 can apply up to three tabs on one edge of the piece in a single pass. For added productivity, run the T-950 inline with the AS-850 Inline Address Printer and apply tabs and print the address in a single pass.

  • Booklets

    Booklet Tabbing

    The T-950 can apply up to three tabs on one side of the piece in a single tab. Booklets requiring two sided tabbing will require two passes through the machine.

  • Stamp Affixing

    Stamp Affixing

    The T-950 will apply live or pre-canceled stamps at speeds of up to 35,000 pieces per hour. For added productivity and personalization, run the T-950 inline with the AS-850 Inline Address Printer and print the USPS IMB barcode, recipient address, return address, and cancelation marks on top of the stamp in a single pass.

  • Gate Fold Tabs

    Gate Fold Tabs

    The T-950 features a tabbing head that can be placed directly over the piece instead of being limited to just the edges. This flexibility allows users to securely seal gate folded materials.

  • Apply Labels

    Apply Labels

    The T-950 will apply up to a 4″ x 7″ label and is compatible with rolls of labels or fan fold labels.

  • Application Finder

    Application Finder

    Do you have a specific application in mind and need help matching products to your application? Check out the Application Finder for more information.

Specifications

Tab Materials Clear, Translucent, or Paper

Tabbing Speed Single Tab: Up to 35,000 pieces per hour
Double Tab: Up to 30,000 pieces per hour
Triple Tab: Up to 20,000 pieces per hour

Labeling Speed Fan-Folded Labels: Up to 9,500 pieces per hour
1″ x 4″ Roll Labels: Up to 24,000 pieces per hour

Material Size Minimum (W x L): 3″ x 5″
Maximum (W x L): 13” x 17”

Material Thickness Up to 1/2”

Label Size Up To 4” x 7″ wide with supplied Wide Applicator Head

Tab Size MIN: 3/4” x 3/4”
MAX: 2” x 7”

Tab Sensitivity Adjusts for density in tab/wafer seals

Reel Capacity  19” Diameter (3” core)

Number Of Tabs 1, 2, or 3 Tabs

Tab Accuracy +/- 1/8”

Feeder Control Start/Stop Control for other RENA Systems Feeders

Production Monitors Life and Job Count and Production rate and speed

Error Reporting Yes

Feed Direction Left to Right Operation

Maximum Tabs Applies up to three tabs or stamps per pass

Safety Interlocks on all adjustments, Emergency Stop Switch

Duty Cycle 120 million addresses total or 2,000,000 per month over a 5-year life cycle

Dimensions 27” W x 33” D x 37” H

Weight 150 lbs

Electrical 115VAC or 240VAC 50/60 Hz

Options Conveyor
