T-750 Tabber/Stamp Affixer

  • Tab Compatibility
    Clear, Translucent, Paper Tabs, and Postage Stamps
  • Speed
    Up to 20,000 pieces/hr
  • Roll Compatibility
    Up to 14″ Diameter (3″ Core)

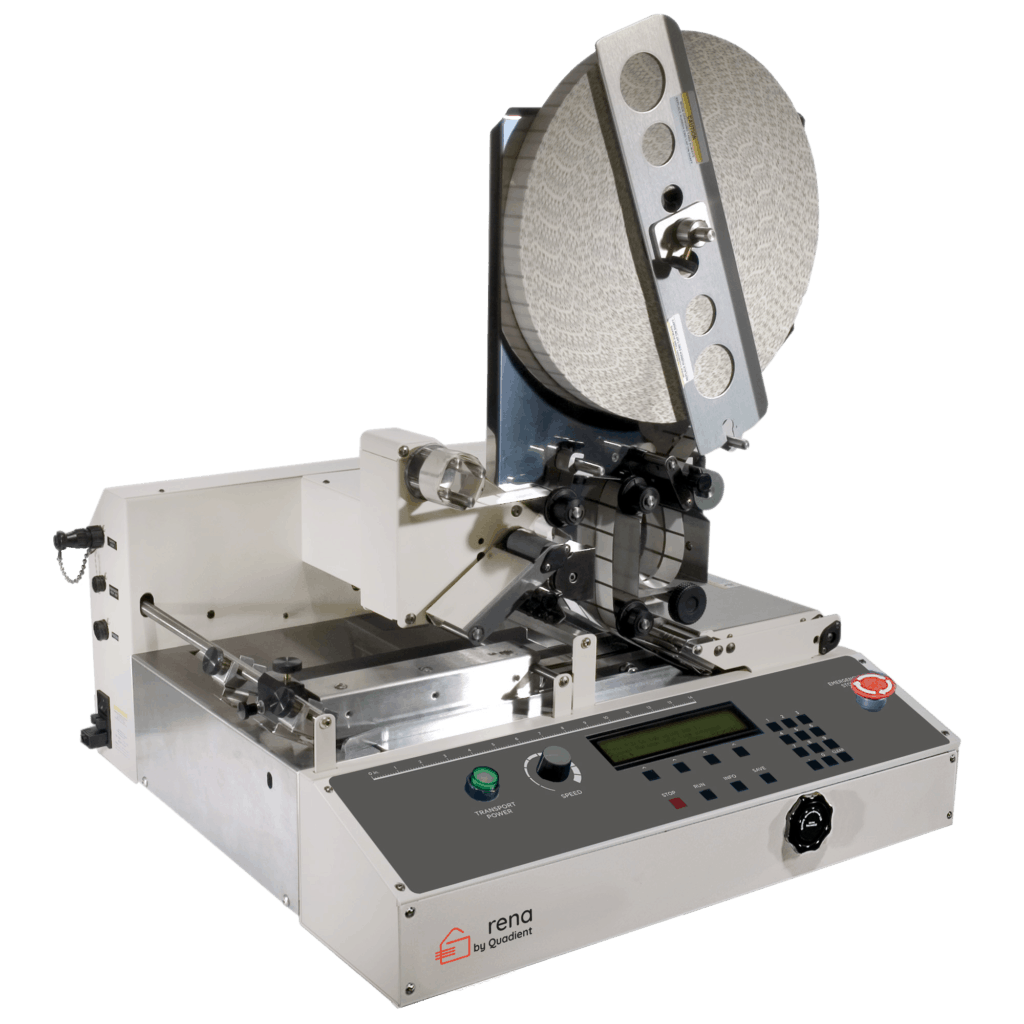

The T-750 Inline Tabber can apply tabs or stamps at speeds over 20,000 per hour. It has the ability to single, double and triple tab. It can run clear, translucent, or paper tabs all while running inline with several of our inkjet address printers. The automatic speed integration of our EASYFeed Lite feeder option makes the T-750 one affordable stand-alone tabber that outperforms all challengers. It has our new intelligent system control software that is easier to use and offers exclusive features like Automatic Tab Positioning and Automatic Length Measuring.

Features

  • Folded Self Mailers

    Folded Self Mailers

    The T-750 can apply up to three tabs on one edge of the piece in a single pass. For added productivity, run the T-750 inline with the AS-850 Inline Address Printer and apply tabs and print the address in a single pass.

  • Booklets

    Booklet Tabbing

    The T-750 can apply up to three tabs on one side of the piece in a single tab. Booklets requiring two sided tabbing will require two passes through the machine.

  • Stamp Affixing

    Stamp Affixing

    The T-750 will apply live or pre-canceled stamps at speeds of up to 20,000 pieces per hour. For added productivity and personalization, run the T-750 inline with the AS-850 Inline Address Printer and print the USPS IMB barcode, recipient address, return address, and cancelation marks on top of the stamp in a single pass.

  • Application Finder

    Application Finder

    Do you have a specific application in mind and need help matching products to your application? Check out the Application Finder for more information.

Specifications

Tab Materials Clear, Translucent, or Paper

Tabbing Speed Single Tab: Up to 20,000 pieces per hour
Double Tab: Up to 12,000 pieces per hour
Triple Tab: Up to 8,000 pieces per hour

Material Size Minimum (W x L): 3″ x 5″
Maximum (W x L): 13” x 17”

Material Thickness Up to 3/8”

Feeder In-line design works with various input devices

Tab Size MIN: 3/4” x 3/4”
MAX: 1.5” x 1.5”

Tab Sensitivity Adjusts for density in tab/wafer seals

Reel Capacity 14” Diameter (3” core)

Number Of Tabs Up to 3 tabs applied per piece

Tab Accuracy +/- 1/16”

Feeder Control Synchronized Speed Control with EASYFeed Lite
Start/Stop Control for other RENA Systems Feeders

Production Monitors Life and Job Count and Production rate and speed

Error Reporting Yes

Safety Interlocks on all adjustments
Emergency Stop Switch

Duty Cycle 60 million addresses total or 1,000,000 per month over a 5-year life cycle

Dimensions 25” W x 27” H x 25” L (41” with EASYFeed Lite)

Weight 90 lbs

Electrical 115VAC or 240VAC 50/60 Hz

OptionsEasyFeed Lite, Conveyor
