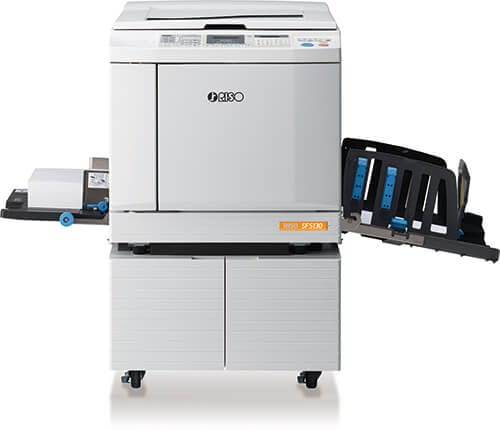

The SF5130 Digital Duplicator

Introducing the SF series, the all-new global brand that meets all kinds of user needs.

Employed in over 190 countries and regions, RISO has been successfully meeting all user needs by constantly listening to the feedback from our customers in order to continually improve our products. The SF series is an important milestone and a masterpiece of our ceaseless innovation. With the fastest speed in its class plus the superior operability and print quality, the SF series ushers you into a higher dimension of printing.

Benefits

  • Quick Master Making Mode

    The SF series makes prints from a master. A new function, speed priority mode, shortens the master-making time while still maintaining high image quality. As a result, the more pages generated from each master the lower the cost per print, making it highly economical for medium- to high-volume printing.

  • Versatile Paper Handling

    The SF series plays multiple roles, accepting a wide range of paper types such as recycled paper, coarse paper, cards and envelopes. Page layout printing combines multiple copies of the same page, or copies of multiple pages onto a single printed page to save paper. Conveniently condense bulky multiple-page documents in an easy-to-read format.

  • Easy Operation

    New, easy-to-use control panel provides intuitive operation. The information on the 128 × 64 dot LCD panel can be easily viewed, and it also shows the residual capacity of supplies to prevent an out-of-stock situation occurring. The total management system improves convenience by integrating applications in one place. Product, consumables and system information can all be checked easily on your PC.

  • Outstanding Quality

    The newly designed scanner attains smooth tonal gradation even with photo images. It can now reduced blown-out highlights, decrease image deterioration through improved image processing, and deliver a clearer output.

  • Information Management

    The SF series provides enhanced security by an optional IC card activation kit. Only an authorized user can perform printing, effective to prevent divulging information from secret documents. Running a usage report is easy with the RISO Copy Count Viewer. It counts users’ printouts which is useful for understanding expenses and usage restriction.

  • Go Green

    The SF series consumes 1/10th the energy, compared with energy star guidelines. The rice bran oil ink contributes to environment sustainability. Rice bran, which would be otherwise wasted, is a raw material with no VOCs, so after the oil is extracted for the ink. It can subsequently be used as fertilizer or animal feed.

Specifications

Master-Making/Printing Methods High-speed digital master-making/Fully automatic printing

Original Type Book or sheet

Master Making Time Quick Master Making mode: Approx. 17 seconds (Letter, short-edge feed)
Normal master making mode: Approx. 19 seconds (Letter, short-edge feed)

Resolution Scanning Resolution: 600 dpi × 600 dpi
Printing: 300 dpi × 600 dpi
Quick Master Making mode: 300 dpi × 400 dpi

Maximum Scanning Area 11 11/16 inches × 17 inches (297 mm × 432 mm)

Image Processing Mode Line, Photo, Duo, Pencil

Print Reproduction Ratio Type: inch
Zoom: (50% to 200%), Free, 100% reduction ratio, 3 levels of enlargement (154%, 129%, 121%), 4 levels of reduction (94%, 78%, 65%, 61%)
Type: mm
Zoom: (50% to 200%), Free, 100% reduction ratio, 3 levels of enlargement (141%, 122%, 116%), 4 levels of reduction (94%, 87%, 82%, 71%)

User Interface LCD panel

Functions Original Scanning mode, Scanning Level, Enlargement/Reproduction, Dot Process, 2-Up, Book, Ink Saving, Quick Master Making, ADF-Semi-Auto*3, Speed, Density, Print Position, Program A/B, Job Separation*3, Idling, Confidential, Meter Display, Count Report Output, Proof, Direct Printing, USB Flash-via-Printing, Auto Sleep Setting, Auto Power-OFF Setting, ECO mode, RISO iQuality System
*Optional accessories required.

Ink Supply Fully automatic (1,000 ml per cartridge)

Master Supply/Disposal Full automatic (Legal: approx. 250 sheets per roll)/Disposal capacity: approx. 100 sheets

Optional Accessories RISO SF Drum, RISO Auto Document Feeder VII, Job Separator IV; NIII, Card Feed Kit, RISO Key Card Counter IV; N, RISO Stand D Type III, RISO Stand N Type III, IC Card Reader Activation Kit RG, RISO Network Kit RG, RISO Printer driver for Macintosh.

Operating Environment

  • Power Source
  • AC 100-120 V 3.4 A, AC 220-240 V 1.6 A, 50-60 Hz
  • Power Consumption
  • Standard: Max.: 300 W, Ready: 20 W or lower, Sleep: 5 W or lower, Power-OFF: 0.5 W or lower
    Optional Accessories Connected*: Max.: 315 W, Ready: 30 W or lower, Sleep: 10 W or lower, Power-OFF: 0.5 W or lower
    *When all the following optional accessories are installed, Auto Document Feeder, Job Separator, Key/Card Counter.
  • Dimensions (W×D×H)
  • When in use: 55 23/32 inches × 26 3/8 inches* × 41 15/16 inches† (1415 mm × 670 mm* × 1065 mm†)
    When in storage: 30 23/32 inches × 26 3/8 inches* × 41 15/16 inches† (780 mm × 670 mm* × 1065 mm†)
    *The depth does not include the stabilizers for the stand.
    †The height includes the stand.
  • Required Space (W×D×H)
  • 55 23/32 inches × 48 13/16 inches × 59 21/32 inches* (1415 mm × 1240 mm × 1515 mm*)
    *The height includes the stand.
  • Weight
  • 221 lb (100 kg)
    The weight does not include the ink, master roll, and stand.
  • Safety Information
  • IEC-60950-1 compliant, indoor, pollution degree 2, at altitudes of 2000 m or lower.
    The pollution degree of the usage environment due to dirt and dust in the air. Degree “2” corresponds to a general indoor environment.
