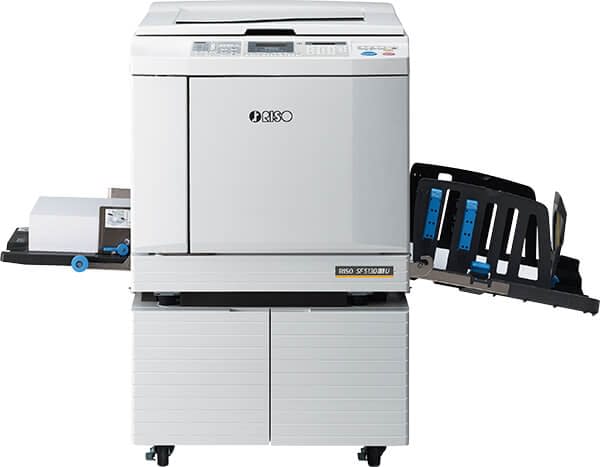

SF5130 EII

Home / Shop / Riso / Digital Duplicators / SF5130 EII

High-speed printing with excellent efficiency

The SF EII series is a significant milestone as well as being a masterpiece of RISO’s ceaseless innovation. With its superior operability, high speed and outstanding print quality, the SF EII series advances you into a whole new dimension of printing.

Benefits

  • Overwhelmingly Economical Print Costs

    The SF EII series makes prints from a master. The more pages generated from each master the lower the cost per print. This means you can benefit from highly economical large-volume printing in the long run.

  • Multiple Page Printing

    Page layout printing combines multiple copies of the same page, or copies of multiple pages onto a single printed page to save paper. Conveniently condense bulky multiple-page documents in an easy-to-read format. These functions are available when using the printer driver.

  • Easy Guidance for Changing Consumables

    Reading the QR code attached on the duplicator body with a smart device leads to an instruction video on RISO's YouTube channel showing how to replace the master roll and ink cartridge, and empty the master disposal box.

  • Overlapped Feeding Detection

    If paper is fed overlapped, it is automatically detected and the user is informed.

  • Paper Insertion Function for Easier Sorting

    The SF EII series can be programmed to insert a white sheet each time a designated number of pages has been printed. This makes it easier to sort and confirm the amount of documents completed.

  • Energy Saving

    RISO Digital Duplicators do not use toner so a heater that is usually required for bonding toner to the paper is not necessary. They employ automatic shut-off and sleep functions after a certain time interval elapses, to effectively reduce power consumption.

Specifications

Master-Making/Printing Methods High-speed digital master-making/Fully automatic printing

Original Type Book or sheet

Master Making Time Quick Master Making mode: Approx. 17 seconds (Letter, short-edge feed)
Normal master making mode: Approx. 19 seconds (Letter, short-edge feed)

Resolution Scanning Resolution: 600 dpi × 600 dpi
Printing: 300 dpi × 600 dpi
Quick Master Making mode: 300 dpi × 400 dpi

Maximum Scanning Area 11 11/16 inches × 17 inches (297 mm × 432 mm)

Image Processing Mode Line, Photo, Duo, Pencil

Print Reproduction Ratio Type: inch
Zoom: (50% to 200%), 100% reduction ratio, 3 levels of enlargement (154%, 129%, 121%), 4 levels of reduction (94%, 78%, 65%, 61%)
Type: mm
Zoom: (50% to 200%), 100% reduction ratio, 3 levels of enlargement (141%, 122%, 116%), 4 levels of reduction (94%, 87%, 82%, 71%)

User Interface LCD Panel

Functions Original Scanning mode, Scanning Level, Enlargement/Reproduction, Dot Process, 2-Up, Book, Ink Saving, Quick Master Making, ADF-Semi-Auto*3, Speed, Density, Print Position, Program A/B, D-feed check, Slip sheet sorting, Job Separation*4, Idling, Confidential, Meter Display, Count Report Output, Proof, Direct Printing, USB Flash-via-Printing, Paper Memory Print, Auto Sleep Setting, Auto Power-OFF Setting, ECO mode, RISO iQuality System

Ink Supply Fully automatic (1,000 ml per cartridge)

Master Supply/Disposal Full automatic (Legal: approx. 250 sheets per roll)/Disposal capacity: approx. 100 sheets

Optional Accessories RISO FII Drum, RISO Auto Document Feeder VII, Job Separator IV; NIII, Card Feed Kit, RISO Stand D Type III, RISO Stand N Type III, IC Card Reader Activation Kit RG, RISO Network Kit S10, RISO Printer driver for Macintosh, Envelope Feed Kit

Printing & Paper

  • Print Paper Size
  • 3 15/16 inches × 5 13/16 inches to 12 7/32 inches × 17 inches (100 mm × 148 mm to 310 mm × 432 mm)
  • Print Paper Weight
  • 12-lb bond to 42-lb bond (46 gsm to 157 gsm)
  • Maximum Printing Area
  • 8 1/4 inches x 14 1/16 inches (210 mm × 357 mm)
  • Paper Feed Tray Stacking Capacity
  • 1000 sheets*, stacking height of 4 11/32 inches (110 mm) or lower.
    *When using the following weight of paper: 17-lb bond to 21-lb bond (64 gsm to 80 gsm)
  • Paper Receiving Tray Stacking Capacity
  • 1000 sheets*, stacking height of 4 11/32 inches (110 mm) or lower.
    *When using the following weight of paper: 17-lb bond to 21-lb bond (64 gsm to 80 gsm)
  • Print Speed
  • 5 levels: 60, 80, 100, 120 and 130 ppm
  • Print Position Adjustment
  • Horizontal: ±19/32 inches, Vertical: ±13/32 inches (Horizontal: ±15 mm, Vertical: ±10 mm)

Operating Environment

  • Power Source
  • AC 100-120 V/AC 220-240 V 50-60 Hz <3.4-1.6 A>
  • Power Consumption
  • Standard: Max.: 300 W, Ready: 20 W or lower, Sleep: 5 W or lower, Power-OFF: 0.5 W or lower
    Optional Accessories Connected*: Max.: 315 W, Ready: 30 W or lower, Sleep: 10 W or lower, Power-OFF: 0.5 W or lower
    *When all the following optional accessories are installed, Auto Document Feeder, IC Card Reader.
  • Dimensions (W×D×H)
  • When in use: 55 23/32 inches × 26 3/8 inches*7 × 41 15/16 inches*8 (1415 mm × 670 mm* × 1065 mm*†)
    When in storage: 30 23/32 inches × 26 3/8 inches*7 × 41 15/16 inches*8 (780 mm × 670 mm* × 1065 mm*†)
    *The depth does not include the stabilizers for the stand.
    †The height includes the stand.
  • Required Space (W×D×H)
  • 55 23/32 inches × 48 13/16 inches × 59 21/32 inches*8 (1415 mm × 1240 mm × 1515 mm*)
    *The height includes the stand.
  • Weight
  • 221 lb (100 kg)
    The weight does not include the ink, master roll, and stand.
