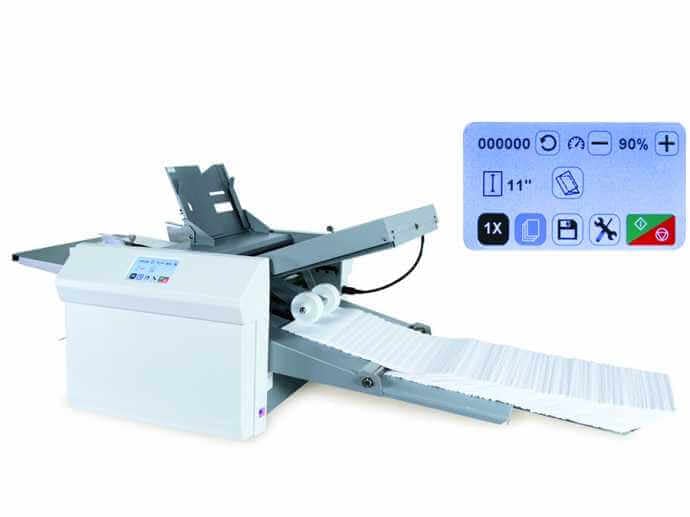

PF-90 Automatic Paper Folder

Home / Shop / Quadient / Digital printers & addressing / PF-90 Automatic Paper Folder

Fast document folder, easy to set up

The Fully Automatic PF-90 Document Folder is ideal for any business, church, school or print-for-pay center that demands quick and easy set-up. Jobs are completed in no time, with speeds of up to 20,100 folded pieces per hour! The backlit LCD display and control panel makes the PF-90 extremely easy to use. Fully automated fold plates provide one touch set-up of the 18 pre-programmed fold settings or for choosing one of the 35 custom folds that can be stored into memory.


  • Fast

    Up to 20,100 sheets per hour

  • Easy to use

    Walk up and run one touch setup

  • Capable

    18 Pre-programmed fold settings

  • Productive

    Load, fold and stack over 500 sheets in under 2 minutes

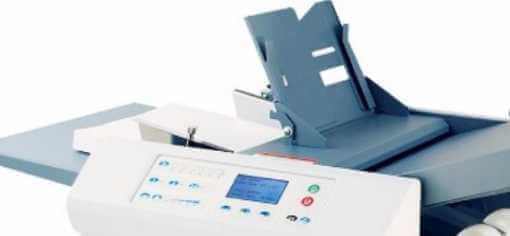

User Friendly

A large 2.8” backlit LCD screen and user-friendly controls allow anyone to walk up and start folding in seconds. Fold plates auto-adjust simply by selecting a fold type or a custom job preset on the control panel. Drop-in feed system has a loading capacity of 500 sheets with automatic paper size detection.


Large jobs can be completed at speeds of up to 20,100 pieces per hour. Dedicated multi-sheet feeder allows 4 stapled or unstapled sheets to be folded at the same time. 6-digit counter keeps a running total or allows a pre-entered number of sheets to be folded.


Pre-programmed for 6 popular fold types in letter, legal and ledger paper sizes equaling 18 preset fold settings. Up to 35 custom folds can be programmed and stored into memory.

Office Friendly

Insulated fold plates reduce operating noise while crisply folding up to 20,100 sheets per hour. Stores up to 35 user-customized folds in memory for instant job recall and setup.


Processing Speed Up to 20,100 sheets/hr.

Hopper Capacity Up to 500 sheets 20#

Pre-Set Folds C, V, Z, Gate, Fold Out & Double Parallel

Custom Folds Stores up to 35 custom folds into memory

Paper Sizes Min: 3.5” W x 5” L

Max: 12.25” W x 18” L

Power 110-240VAC 50/60 Hz

Pre-Set Paper Sizes 11”, 14”, & 17”

System Dimensions Closed: 33” L x 20” W x 19” H

Fully Extended: 60” L x 20” W x 19” H

Weight 74 lbs.

Safety Certifications UL & CE applied for
