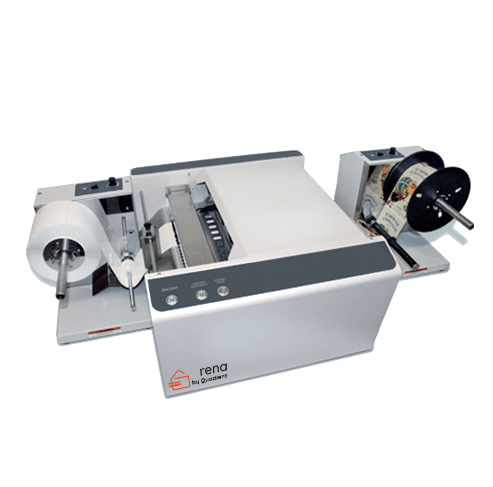

MACH X Digital Color Label Printer

  • Print Area
    8.5″ wide x 30″ long
  • Speed
    Up to 12 inches per second
  • Connectivity
    USB and Ethernet

Utilizing Memjet technology, the Mach X Digital Color Label Printer is the perfect production solution for efficient modern label printing needs. You can produce brilliant full color on rolls up to 9″ wide and 10″ in diameter. It is a fully digital inkjet label printer and it’s the answer to your label printing needs. No setup costs, no plates, no production minimums. Print labels for almost anything you can imagine: wine, snacks, tools, household products, you name it. The great thing about this label printer is that it allows you to print short runs so you can save time and money on stock and also eliminate waste from outdated stock.

Enhance the performance of the MACH X by pairing the printer with the optional mColor RIP & Workflow software to deliver the color consistency and accuracy required by creative and production-oriented users.


  • Full Color Labels

    The MACH X can print full color labels in the following formats:
    Print roll to roll
    Print roll to cut
    Print fan folded labels


Print Technology Memjet Print Technology

Speed 12 inches per second; 60 feet per minute (NORMAL mode)

6 inches per second; 30 feet per minute (BEST mode)

Material Size MIN: 2″ wide rolls
MAX: 9″ wide rolls

Material Thickness Up to 13 pt (0.33 mm / 285 gsm / 158# Index)

Print Quality Normal (1600 x 800 dpi @ 12 ips); Best (1600 x 1600 dpi @ 6 ips)

Ink Capacity Cyan (250 ml); Yellow (250 ml); Magenta (250 ml); Black (500 ml)

Print Area 8.5″ x 30″ with full bleed capability

Media Types Rolls or fanfolded label stock

Media Handling Autofeed web design with integrated batch cutter

Media Sensing Label gap, tick marks, notches

Roll Capacity Optional unwinder & winder can hold up to 10″ O.D. Rolls. Prints up to
500′ continuously before cleaning is required.

Interface USB & Ethernet with Electronic Firmware Uploading

Features Full color inkjet; fixed head design; high capacity ink tanks; automatic printhead cleaning and capping service station

Fonts All available TruType or Postscript system fonts

Barcodes All available system or software barcodes

Dimensions Printer: 22″ W x 12″ H x 19″ D; With both Winders: 44″ W

Weight Printer: 75 lbs; 115 lbs with both Winders

Electrical 110-240 VAC 60Hz / 2A

Options mColor RIP & Workflow Software; Roll unwinder for feeding; roll winder for take-up; Console table
