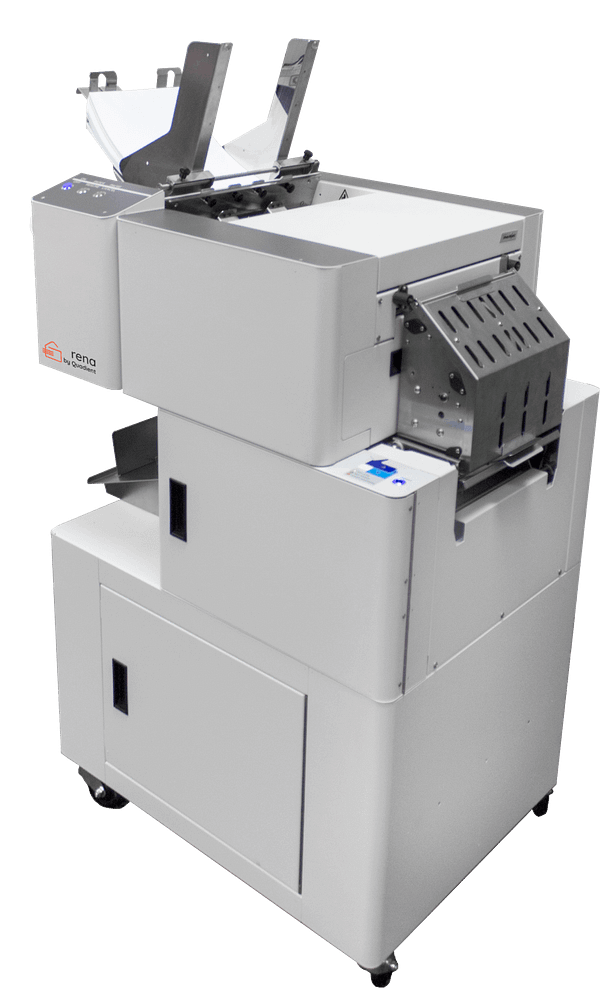

MACH 5DX Full Color Duplex Printer

  • Print Area
    8.5″ wide x 17″ long
  • Speed
    Up to 12 inches per second
  • Connectivity
    USB and Ethernet

We have added duplex ability to the Mach 5! It’s the same exceptional technology from Memjet, but this time, it can print on both sides!

The Mach 5DX is capable of printing full color at 6 inches per second and an amazing 1600 x 1600 dots per inch. The faster option is 1600 x 800 dpi at 12 inches per second. These speeds are both for single and double-sided printing. The Mach 5DX is still packed with the same Memjet five ink channels (Cyan, Yellow, Magenta, Black, and Black) and the same single 8.77” wide print bar. Inside these channels is a whopping 70,400 nozzles from which the ink is sprayed onto the substrate.

The five ink tanks each hold 250 mL of ink for long job runs and low cost per piece. If your business is looking for a machine that will produce short runs, the Mach 5DX is perfect for that as well. Print what you need, when you need it. It will eliminate outdated cardstock and free you up on storage.

Enhance the performance of the MACH 5DX by pairing the printer with the optional mColor RIP & Workflow software to deliver the color consistency and accuracy required by creative and production-oriented users.

Features

  • Full Color Envelopes

    Full Color Envelopes

    Print full color envelopes at speeds of up to 7,500 #10 envelopes per hour. The MACH 5DX does not use heat during the printing process, so there is no need for expensive, laser safe window envelopes.

  • Full Bleed

    Full Bleed

    Print to the edge without the need to cut, trim, or convert.

  • Duplex Envelopes

    Full Color Duplex Envelopes

    Print full color duplex envelopes at speeds of up to 7,500 #10 envelopes per hour in a single pass. Printing duplex does not result in loss of speed.

  • Invitations

    Add color and full bleed to invitations

  • Color Matching

    Color Matching

    Color matching can be accomplished using our mColor RIP software.

  • Application Finder

    Application Finder

    Do you have a specific application in mind and need help matching products to your application? Check out the Application Finder for more information.

Specifications

Print Technology Memjet Print Technology

Speed Up to 7,500 #10 envelopes per hour (1600 x 800 dpi @ 12 ips)
Up to 3,600 pages per hour (1600 x 800 dpi @ 12 ips – 8.5″ x 11″ sheets)

Material Size Single Sided: MIN: 4.2″ L x 3″ W

MAX: 17″ L x 9.5″ W

Duplex: MIN: 6″ L x 4″ W
MAX: 17″ L x 9″ W

Material Thickness Up to 0.020″ (0.5 mm)

Print Quality Normal (1600 x 800 dpi @ 12 ips); Best (1600 x 1600 dpi @ 6 ips)

Ink Capacity Cyan (250 ml); Yellow (250 ml); Magenta (250 ml); Black (500 ml)

Print Area 8.5″ x 30″ with full bleed capability

Color Matrix Up to 16.8 million colors

Feeder Top Load Friction Feeder Built-In

PC Interface USB & ETHERNET

Firmware Update Electronic Download via PC Connection

Transport Pressure Roller Transport System with Star Rollers

Features Full color inkjet; fixed head design; high capacity ink tanks; automatic printhead cleaning and capping service station; duplexing unit

Fonts All available TruType or Postscript system fonts

Dimensions With Printer: 39″ L x 54.5″ H x 21.5″ D
Without Printer: 28.25″ L x 33″ x 21.5″ D

Weight With Printer: 146 lbs
Without Printer: 72 lbs

Electrical 110-240 VAC 60Hz / 2A

Options mColor RIP & Workflow Software; TB-390 conveyor; BCC Bulk Mailer SMB
