IM-306 High Volume Envelope Opener

Home / Shop / Quadient / Document handling equipment / IM-306 High Volume Envelope Opener

Automatic high speed mail processing

The Model 306 with its ability to operate at a rated speed of up to 40,000 envelopes per hour, sets a new standard for high volume mail processing. The improved milling cutter with 8 cut-depth positions removes chips as small as 0.01” from the envelope edge, producing a soft, feathered edge while protecting valuable envelope contents. Even overnight delivery envelopes are no match for the Model 306. Equipped with a user-friendly interface, job setup is simple and quick.


  • Fast

    Up to 667 envelopes per minute

  • Proven Technology

    Minimizes cut contents

  • Flexible

    Even opens large and thick envelopes

  • User Friendly

    Backlit LCD control pane


High Efficiency

Opens up to 400 envelopes per minute but is ideal for handful in, handful out, operations. Reverse flow conveyor permits operators to stay in place to both feed and remove envelopes. Auto chaff collection provides a clean workspace while preventing jams and static buildup.

Low Waste

The Series 306 minimizes the amount of waste produced throughout the extraction process. Since our milling cutter "chips" away the edge of the envelope, the tiny waste chips are guided into a large capacity chip bin that can be easily emptied. Ergonomic rolling stand with three mail tray supports and a waste bin are included.

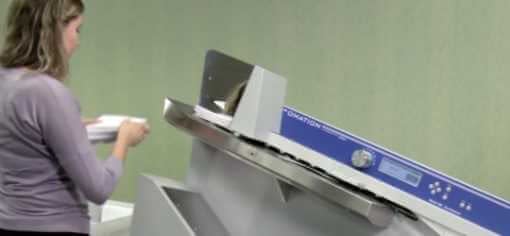

User Friendly

Opens a variety of mixed mail sizes and thicknesses, including flats. Easy-to-read backlit LCD display with multiple job, operator and language settings.

Proven Technology

Precision milling cutter with 8 cut-depth positions protects the contents of your mail. Processed envelopes have a soft, feathered-edge opening, eliminating paper cuts. Cut depth adjustment knob lets you select from three cut-depth settings, plus a no-cut setting for piece counting.


Processing Speed – Envelopes per. Minute

Up to 667

Envelope Opening

All sizes up to 13.5″ long (including overnight packs)

Maximum Envelope Thickness Up to .50” (1.27 cm)

Feeder Hopper Capacity Up to 400 envelopes

Depth of Cut From 0.01” (0.03 cm) from envelope edge up to 0.125” (0.32 cm) in depth

Weight 245 lbs.

System Dimensions 47.75”L x 21”D x 58”H

Power 115 VAC, 60HZ, 8.5A

230 VAC, 50HZ, 5.5A
