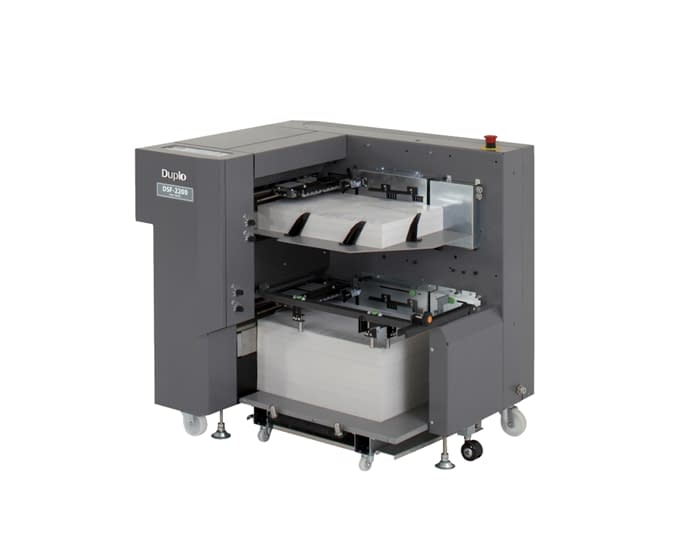

DSF-2200 Sheet Feeder

Automated, Digital Sheet Feeding

  • Feeds pre-collated sets
  • Processes small to mid volume sets
  • Feeds into a Duplo bookletmaker


The DSF-2200 Sheet Feeder handles the output from your digital presses for on demand bookletmaking. Similar to its higher-end counterpart, the DSF-6000, the DSF-2200 utilizes Duplo’s patented technology to provide a constant and steady supply of air and suction up to 200 sheets per minute. Front/side air separation and an anti-static device minimize the effects of static commonly seen in digitally printed media and the optional barcode reader helps process variable data with integrity.


  • High resolution sensors for double feed detection

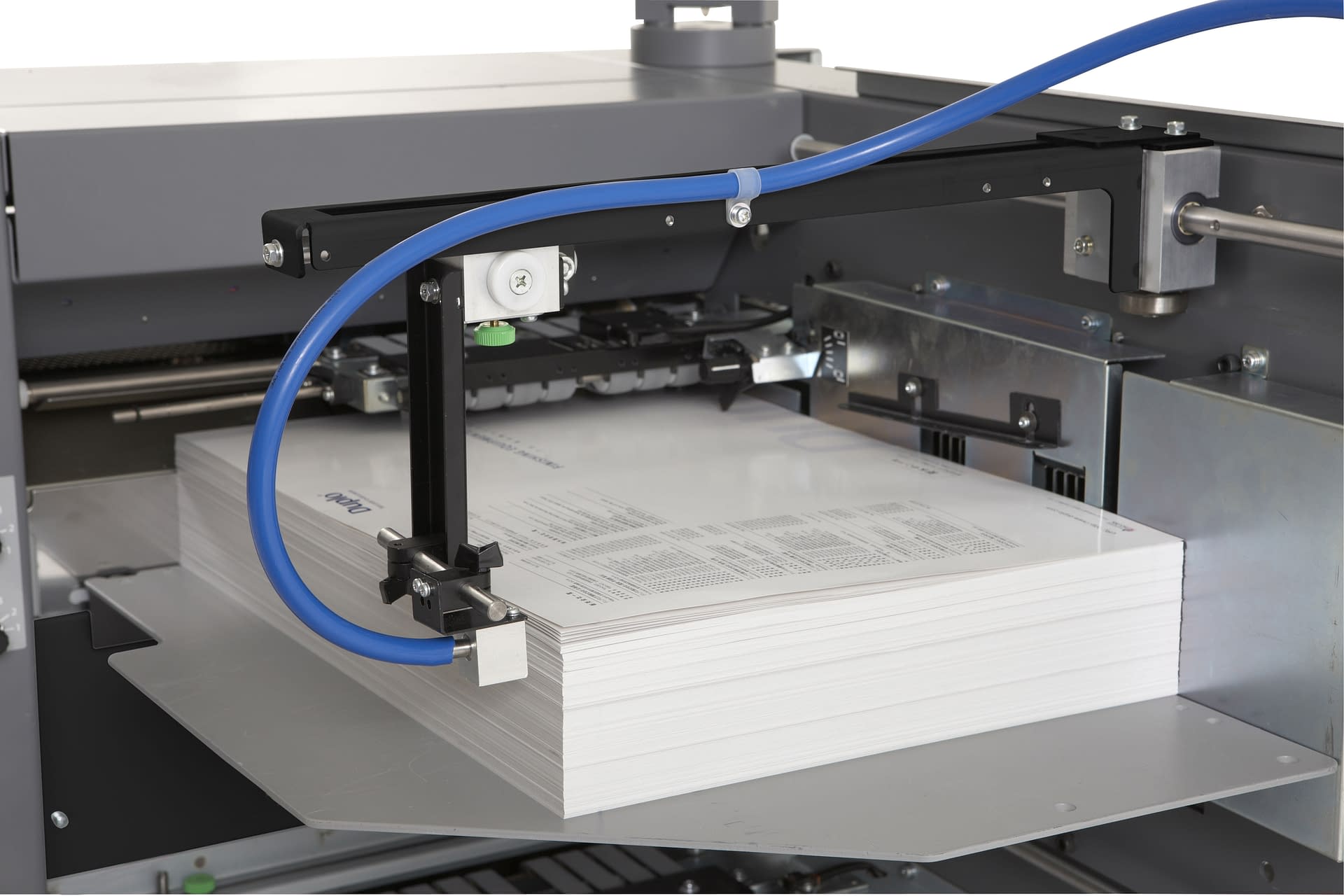

  • Two air suction bins with built-in end mark reader
  • Air management system for fine tune adjustments
  • Configuration with DBM-600/350/150 Bookletmaker and iSaddle 5.0


Key Applications

  • Digital bookletmaking


SPEED Up to 200 sheets per minute

BIN CAPACITY Tray A 2.56″, Tray B 7.87″

INPUT PAPER SIZE 4.13″ x 7.87″ to 14.02″ x 20″

OPTIONS Barcode kit, Extension tray, Pre-loading kit, Trail edge air kit
