DS-85i Folder Inserter

Home / Shop / Quadient / Folder Inserters / DS-85i Folder Inserter

Your Mail Center Assistant

Fold, insert and seal up to 60,000 envelopes per month

Ideally suited for businesses that need to automate a wide variety of document sizes and types, the DS-85i folder inserter handles them all with ease. Modular in design, the DS-85i can come with, or be expanded to, up to six feed stations at any time to process your most challenging combinations of document sizes and types.

With the full-page Contact Image Sensor (CIS) scanning technology, the DS-85i can read any type of coding including optical mark, optical character, and 1D and 2D data matrix barcodes. Because the scanner reads the entire area of the page, codes can be printed anywhere on the document and read horizontally and vertically.

The DS-85i can be connected to your network to provide you with access to unique online services such as remote assistance and diagnostics to help you reduce downtime and minimize assembly times. With its large loading and unloading capabilities and many intelligent features, the DS-85i fits perfectly into any work environment.

Benefits

  • Easy to use

    Color touch screen and wizard-based software

  • Grow revenue

    Maximize opportunities through better communication

  • Mitigate risk

    Ensure information is secure with document traceability

  • Control expense

    Reduce postage, preparation, equipment, and material costs

Features

Easy

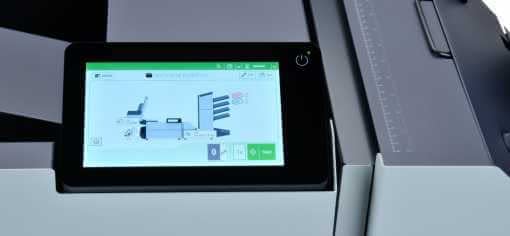

The 7” color touch screen and wizard-based guidance simplify operation. Quickly recall up to 50 stored jobs or create new ones with ease. Load documents and envelopes, press start, and the DS-85i automatically measures the materials and sets itself up.

Productive

Continuous operation is achieved by linking feeders. If one feeder runs empty, another one automatically takes over, allowing you to refill as needed until your job is complete. Automatically fold & insert up to 4,000 mail pieces per hour.

Automated

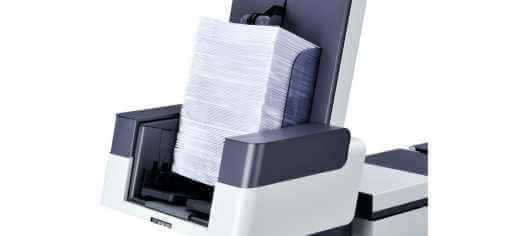

The high capacity vertical stacker reduces the frequency of unloading, freeing the operator to attend to other tasks. It requires less handling and makes it possible to complete up to 500 envelopes every 8 minutes while running at maximum speed.

Versatile

DS-85i can be configured with barcode reading technology to automate variable-page jobs, incorporating another layer of security that ensures the right documents are always sent to the right person.

Specifications

Speed Up to 4,000 / hour

Load’n Go automatic job set-up Standard

FlexFeed multi-format feeder Standard

Multiple sheet feeding Standard

Cascade feeding Standard

Number of feeders Up to 6

Job memories 25

Manual feeding Standard

Accumulate before folding Standard

Tip to tip sealing Standard

MaxiFeeder capacity 1,200 sheets- optional

Envelope feeder capacity 325 envelopes

Vertical envelope stacker Up to 500

1D and 2D Barcode reader optional

Document height 3.5”- 14”

Document width 5.1” x 9”

Document weight 16 – 66lbs

Envelope length 3.5” – 6”

Envelope width 6” x 9”

PowerFold folding capacity Up to 10 sheets

Maximum Set thickness 0.01”

Fold types Letter, z-fold, single, double parallel, no fold

Mail Assembly Accuracy

Secure’n Feed doubles detection Standard

Document loading detecton Standard

Remote Assistance Standard

LAN embedded Standard

Optical Mark Recognition (OMR) reader Optional

AIMS-500 Mail Assembly Verification Software Optional

Output Management Software (OMS) Optional

Wireless embedded Standard

Connectivity

Remote Diagnostics Standard
