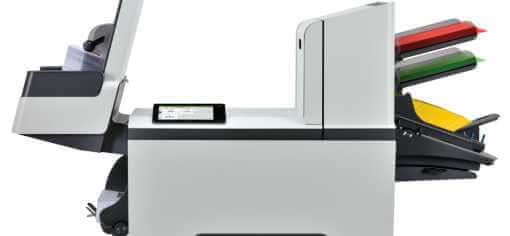

Advanced technology in a compact footprint, the DS-75i is the ideal folding inserting solution for any medium size company. It allows you to quickly and securely process your important business communications.
With the full-page Contact Image Sensor (CIS) scanning technology, the DS-75i can read any type of coding including optical mark, optical character, and 1D and 2D data matrix barcodes. Because the scanner reads the entire area of the page, codes can be printed anywhere on the document and read horizontally and vertically.
The DS-75i can be connected to your network to provide you with access to unique online services such as remote assistance and diagnostics to help you reduce downtime and minimize assembly times. With its large loading and unloading capabilities and many intelligent features, the DS-75i fits perfectly into any work environment.
Color touch screen and wizard-based software
Maximize opportunities to better communicate with customers
Ensure information is secure with document traceability
Reduce postage, preparation, equipment, and material costs

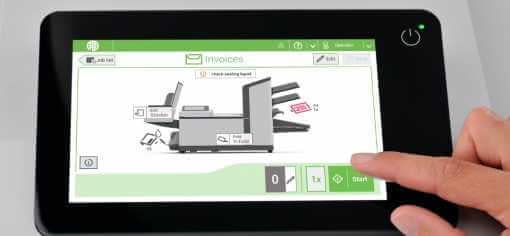

The 7” color touch screen and wizard-based guidance simplify operation. Quickly recall up to 50 stored jobs or create new ones with ease. Load documents and envelopes, press start, and the DS-75i automatically measures the materials and sets itself up.

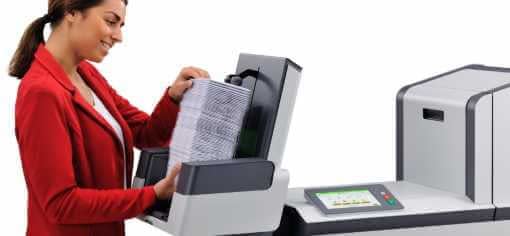

Continuously feed 325 sheets from each feeder, or up to 975 documents using three feeders in cascading mode. Automatically fold & insert up to 3,800 mail pieces per hour.
The high capacity vertical stacker reduces the frequency of unloading, freeing the operator to attend to other tasks. It requires less handling and makes it possible to complete up to 500 envelopes every 8 minutes while running at maximum speed.
Customize your DS-75i to fit your needs. With several feeder configurations, you can design and deliver attractive mailshots. The exclusive FlexFeed® tray enables you to process any document size or type. In combination with the unique semi-automatic envelope separation mechanism, this provides full flexibility for feeding a wide variety of document types.
Processing speed Up to 3,800/hour
Color touch screen Standard
WiFi embedded Standard
Automatic settings Standard
Multi-sheet feeding Standard
Cascade from feeders Standard
Feeders Up to 3
Folding capacity (one set, single fold) Standard (Up to 10 sheets 20 lb.)
Job memory 50
Hand feeding Standard
Document feeder capacity 325 sheets
High capacity feeder capacity 725 sheets
Envelope feeder capacity 325
Automatic double detection Standard
Accumulate before folding Standard
High capacity vertical stacker Up to 500 envelopes
Barcode Reader (BCR) for 1D and 2D barcodes Available
Fold types Letter, z-fold, single, double, parallel, no fold
Tip-to-tip sealing Standard
Noise level 67.3 dB
Document height 3.5″ – 14″
Document width 5.1″ – 9.1″
Envelope length 3.5″ – 6.35″
Envelope width 6.3″ – 9.7″
Maximum insert thickness 1 mm
Maximum set thickness 2.5 mm
Options
MaxiFeeder capacity 1,200 sheets /325 BRE
Side exit Up to 225 envelopes
Mailing system interface Available
Optical Mark Recognition (OMR) Available
Optical Character Recognition (OCR) Available
Output Management Software (OMS) Available
Remote Assistance Available
Remote Diagnostics Available
System Dimensions Length x Depth x Height
DS-75i (3 feeders with catch tray) 50″ × 20″ × 29″
Weight 175 lbs.
LAN embedded Standard
