DS-64i Folder Inserter

Home / Shop / Quadient / Folder Inserters / DS-64i Folder Inserter

User friendly mail assembly

Dependably folds, and inserts up to 20,000 envelopes per month

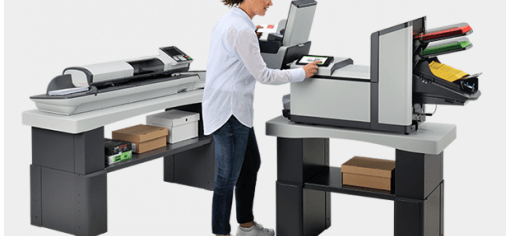

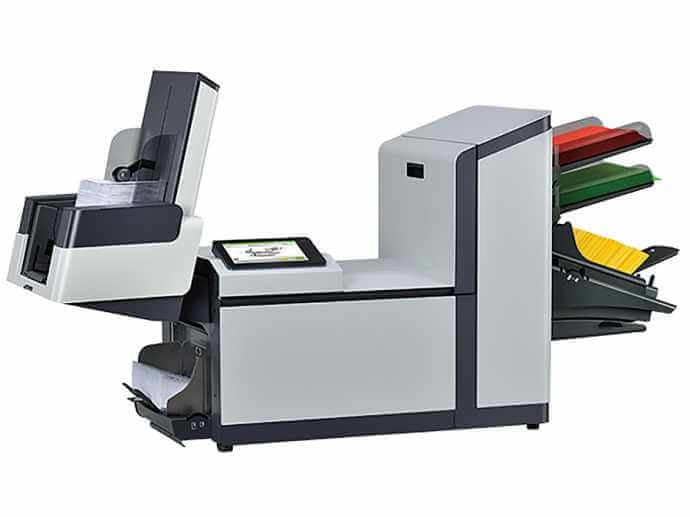

Ergonomic in design and suited for any work environment, the DS-64i is a robust folding inserting solution recognized for its reliability and ease of use. At speeds of up to 2,500 envelopes per hour, the DS-64i folding inserting system will prepare your business mailings quickly and efficiently.

The FlexFeed multi-format feeding technology allows you to process all document sizes including inserts, reply forms and return envelopes from a single tray. When combined with our output management solutions (OMS) featuring grouping, sorting, and splitting capabilities, the DS-64i will optimize your mail flow and contribute to significant cost savings.

Contact Image Sensor (CIS) scanning reads a full range of barcodes and optical marks printed on your documents, allowing you to efficiently and securely process variable page documents.

When you automate mail creation with the DS-64i folder inserter, you lower costs, eliminate user error, and ensure that the right document is always sent to the right customer.

Benefits

  • Easy to use

    Color touch screen and wizard-based software

  • Grow revenue

    Maximize opportunities to better communicate with customers

  • Mitigate risk

    Ensure that every recipient receives the right mail piece

  • Control expense

    Maximize productivity due to speed, reliability and content accuracy

Features

Easy

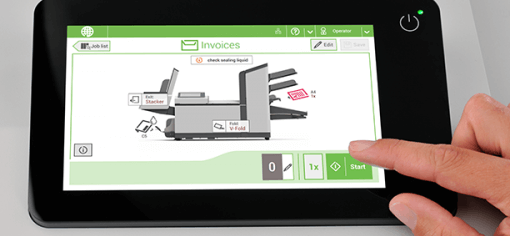

The 7” color touch screen and wizard-based guidance simplify operation. Quickly recall up to 50 stored jobs or create new ones with ease. Load documents and envelopes, press start, and the DS-64i automatically measures the materials and sets itself up.

Productive

Continuously feed 325 sheets from each feeder, or up to 650 documents using two feeders in cascading mode. Automatically folds & inserts up to 2,000 mail pieces per hour. Further enhance productivity with the optional performance package and process up to 2,500 mail pieces per hour, increase folding capacity to up to 8 sheets single fold.

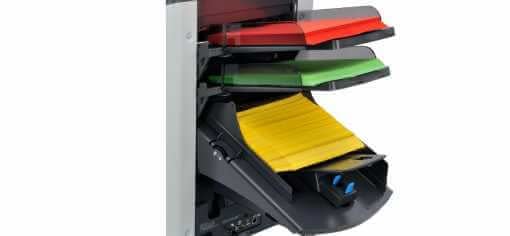

Flexible

Document feeders accommodate a wide variety of material combinations, including full sheets, inserts and business reply envelopes. Five system configurations are available to meet your specific needs.

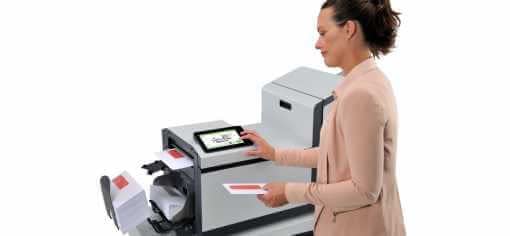

Accurate

Our exclusive feeder technology prevents double document errors. When equipped with optional document code reading, you can assemble variable-page document sets and selectively include enclosures with absolute accuracy.

Specifications

Processing speed Up to 2,500 envelopes / hour

Monthly volume 15,000/month (basic) 20,000/month (Premium)

7″ Color touch screen Standard

Automatic settings Standard

FlexFeed® feeders Standard

Multi-document feeding Up to 3 documents

Cascade feeder linking Standard

Multi-license reading technology (OMR, BCR, 1D, 2D) Standard

Job memory 50

Daily Mail/Multi-page hand feeding Standard

Short tray feeder capacity Up to 50 BRE/325 inserts

High-capacity vertical stacker Standard, up to 325 envelopes

MaxiFeeder capacity Up to 325 BRE/1,200 inserts

Envelope feeder capacity 150

Envelope width 6.3″ – 9.7″

Envelope length 3.5″ – 6.35″

Maximum set thickness 2.5 mm

Catch tray Up to 100 envelopes

Document width 5.1″ – 9.1″

Document height 3.5″ – 14″

Accumulate before folding Up to 8 documents

Folding capacity Up to 8 sheets single fold

Noise level 64.8 dB

Double document detection Standard

Wireless/LAN enabled Standard

Remote diagnostics/assistance Standard

Document feeder capacity 325

Side exit (RH or LH) Up to 225 envelopes

Fold types Letter, z-fold, single, double parallel, no fold

Maximum insert thickness 1 mm

CIS document scanner Standard

Output Management Software (OMS) Output Management Software (OMS)
