DS-180i Folder Inserter

Home / Shop / Quadient / Folder Inserters / DS-180i Folder Inserter

For high-volume mailers

Fold and insert up to 180,000 envelopes per month

Ideal for high-volume mailers, the DS-180i folder inserter is designed to meet the productivity needs of your mail center. Modular in design, it can be expanded to up to 17 feed stations to ensure you always have the capacity to meet the requirements of your business.

The DS-180i maximizes productivity every step of the way, from efficient paper loading to predictive intelligence that estimates when your job will be completed. The 22” color touch screen is designed for simplicity, making it easy for users in any department to assemble their own mail. And once a job has been programmed into memory, running it is as simple as loading the trays, selecting the job, and pressing start.

When assembling mail with variable pages, the DS-180i’s state-of-the-art feeding technology, IMOS operating system, and Automated Insertion Management System (AIMS) guarantee the right documents are inserted into the correct envelope, every time. Each feeder calibrates the first document fed and checks each subsequent document to ensure there are no double feeds.

Automated job changeover and an infinite number of pre-set jobs combine to ensure the versatility and ease of use of the DS-180i.

Benefits

  • Easy to use

    Color touch screen and wizard-based software

  • Grow revenue

    Maximize opportunities through better communication

  • Mitigate risk

    Ensure information is secure with document traceability

  • Control expense

    Reduce postage, preparation, equipment, and material costs

Features

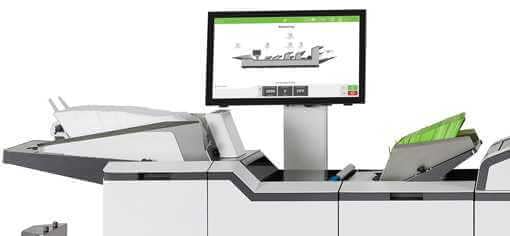

Easy

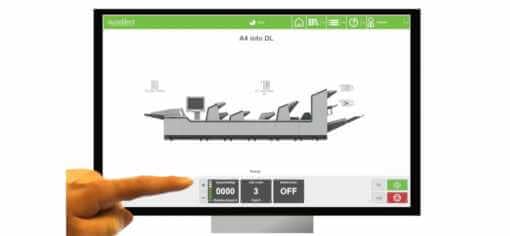

The 22” color touch screen and wizard-based guidance simplify operation. Quickly recall stored jobs or create new ones with ease. Load documents and envelopes, press start, and the DS-180i automatically measures the materials and sets itself up.

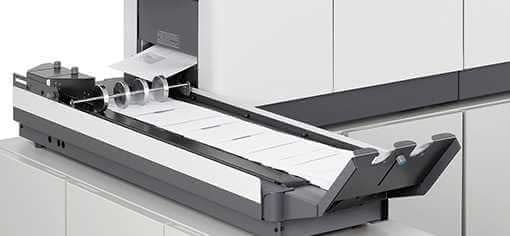

Speedy

Speed is achieved by increased internal processing enhancements and well-balanced input and output capacities. Automatically collate, fold, insert, seal, and count up to 4,500 mail pieces per hour.

Flexible

The Flex Tower Folder can be configured with one to three stations for maximum flexibility. For secure feeding of a wide variety of printed paper, the feeders use mechanical double detection. Each tower can read both paper sides for maximum compatibility with existing applications.

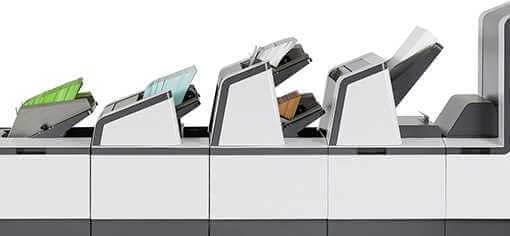

Versatile

The DS-180i provides multiple output options to further optimize costs and efficiency. Envelopes can be sorted in up to three directions based on criteria including weight, destination or type of output processing.

Specifications

Processing speed Up to 4,500/hour (5,500/hour with Productivity Pack)

Accumulation speed (multiple sheets) Up to 6,900/hour (9,400/hour with Productivity Pack)

Document feeder capacity 500 or 1,000 sheets

Envelopes feeder capacity 800

Sealing fluid capacity 10 liters

22″ touch screen PC control Standard

Automatic job setup Standard

Cascade from feeders Standard

Job memory Unlimited

Fold types Letter, z-fold, single, double parallel, no fold

Folding capacity Up to 8 sheets

Conveyor/catch tray Yes/Yes

Envelope types #10, 6 x 9.5

Maximum insert thickness 4 mm

Document reading Face-up and face-down

Online help/Remote assistance Yes

Volume 180,000/month

Automatic barcode recognition Yes

Embedded datalogging/reporting Yes (AIMS-100)

Closed loop/file-based processing Yes (OMS-500 and AIMS-500)

Double feed detection Mechanical

Sorting/diverting Up to three outputs

Modularity Up to 17 feeders

Options

Optimal Mark Recognition (OMR) Available

Barcode Recognition (BCR) Available

2D Data Matrix Available

In-line metering Available
