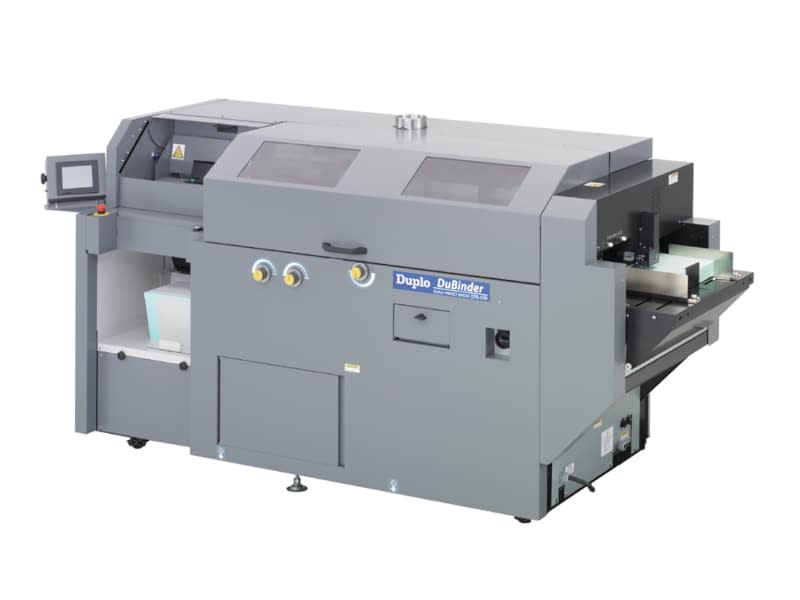

DPB-500 Perfect Binder

Home / Shop / Duplo / Bookletmaker Options / DPB-500 Perfect Binder

Automated Book Binding On Demand

  • Binds book blocks with soft covers
  • Applies hot-melt EVA glue to the spine and sides

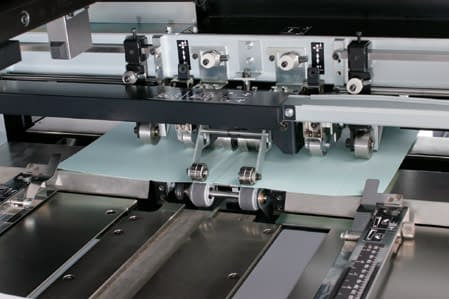

  • Performs cover hinge scoring

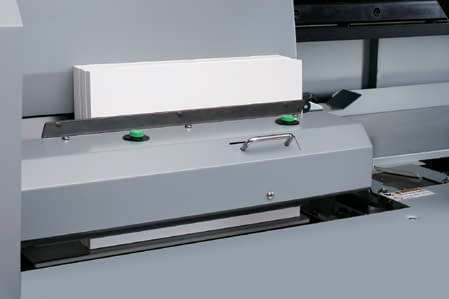

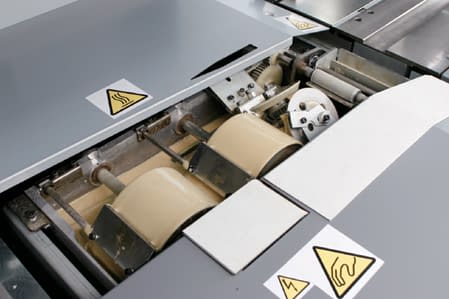

Ideal for short to medium runs and variable productions, the single-clamp DPB-500 Perfect Binder produces books up to 2″ thick and up to 525 cycles per hour. With the cover automatically fed into position, the book block is moved across the milling and notching station to properly prepare the spine for strong glue penetration. The DPB-500 features a large glue tank with two heated drums and two side gluing wheels to bind the edge of the cover to the side of the book block for proper opening and closing. The clamp can also automatically adjust to process variable thicknesses and set the nipping and hinge scoring station for precision book binding.


  • Automated job set up and changeovers
  • Strong notching with 2 tools and dust extraction
  • Automatic cover feeder with double feed detection sensors

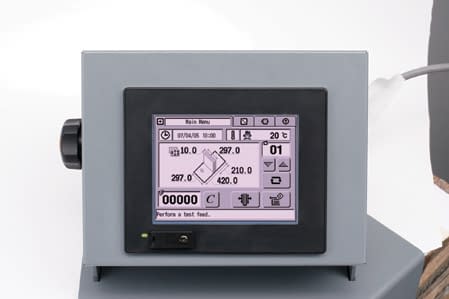

  • Touchscreen control panel with 20-job memory


Key Applications

  • Paperback books
  • Textbooks and workbooks
  • Notebooks and journals
  • Catalogs and manuals
  • Books with spot UV covers


SPEED Up to 525 cycles per hour

INPUT PAPER SIZE Book block: 4.72″ x 4.72″ to 12.6″ x 14.17″, Cover: 4.72″ x 9.84″ to 14.17″ x 27.4″

BINDING THICKNESS 0.04″ to 2.01″


PAPER WEIGHT Book block: Fine quality 52 to 157 gsm, Art coated 79 to 157 gsm, Cover: Fine quality 81.4 to 302 gsm, Art coated 104.7 to 302 gsm

OPTIONS Barcode kit, DPB-LS Long Stacker, Wing scoring
