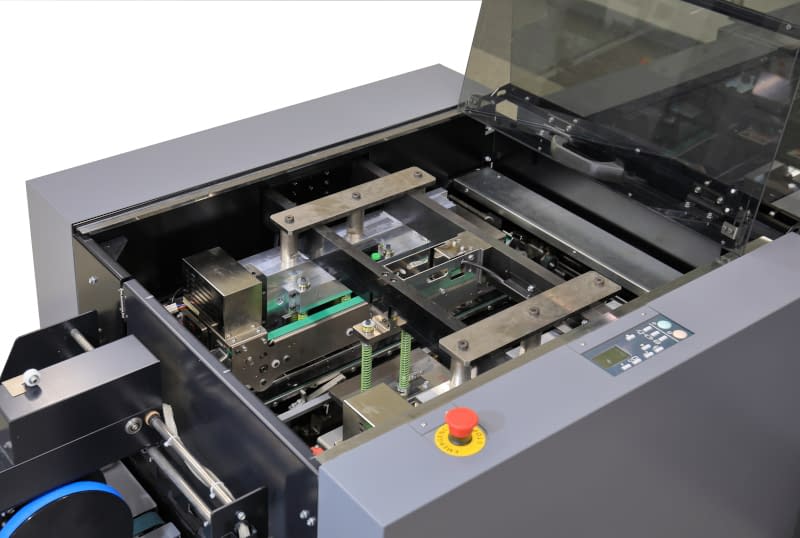

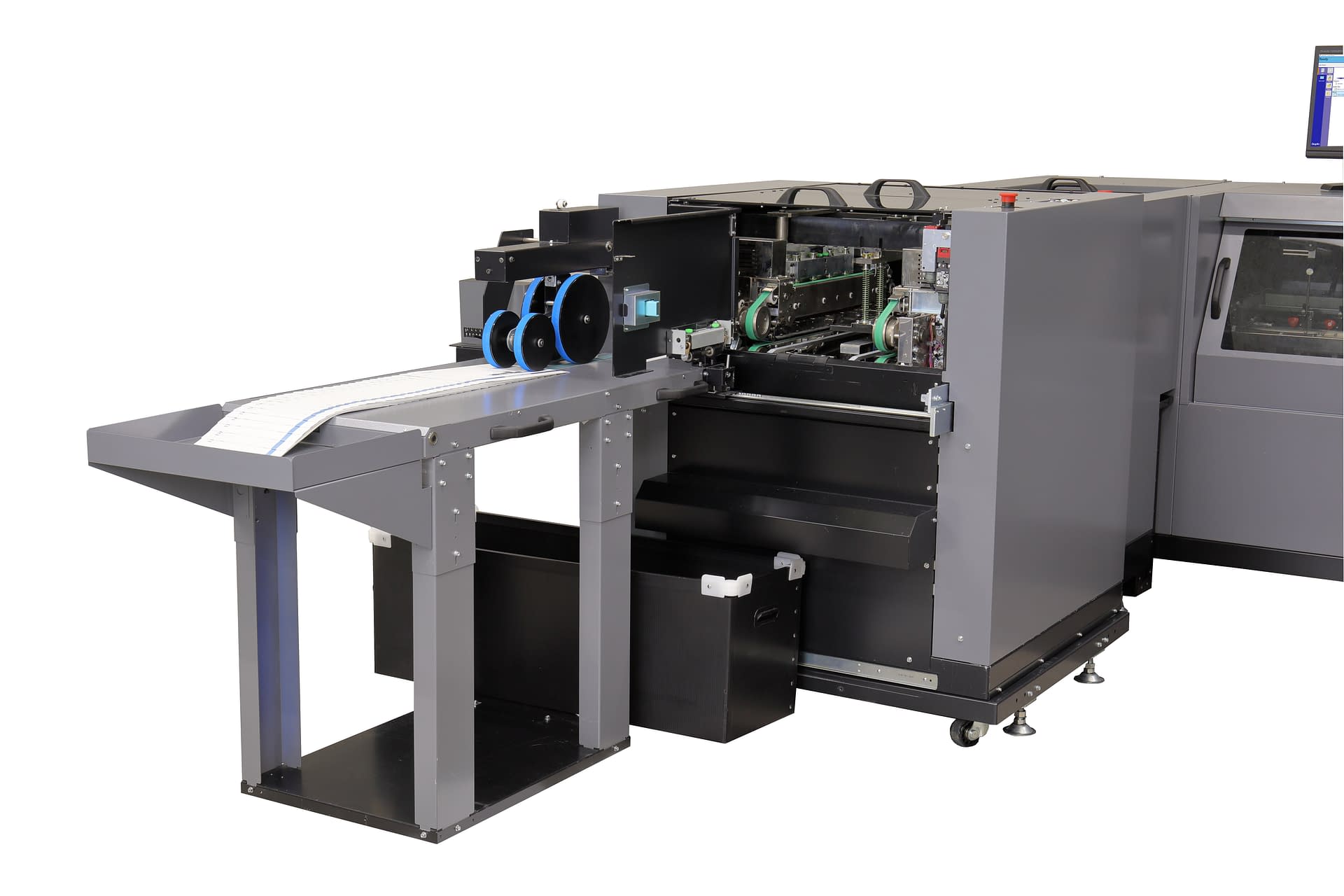

DKTS-200 Two Knife Trimmer

Home / Shop / Duplo / Bookletmaker Options / DKTS-200 Two Knife Trimmer

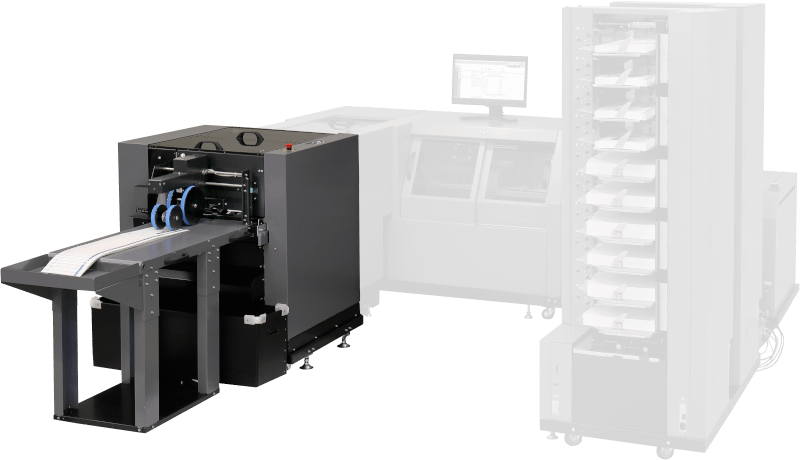

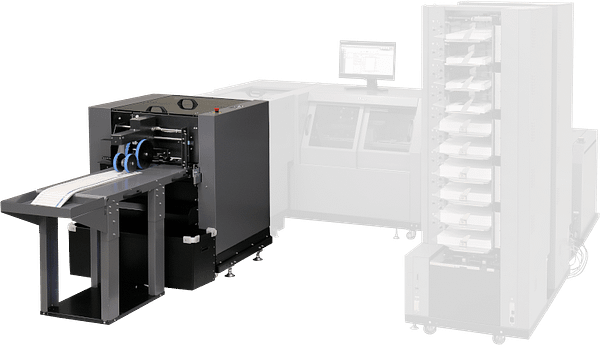

Add Full-Bleed Finishing to your iSaddle and 600i Booklet System

  • Removes white borders
  • Removes gutters
  • Performs offset trimming

The DKTS-200 Two Knife Trimmer brings full-bleed finishing to your bookletmaking by trimming the head and foot of each booklet in-line. No tools are required to change over from one size to another. Add any of these options to increase its versatility such as the 8mm gutter cutter to perform 2-up bookletmaking, angle blade to prevent nicking along the spine, and the batch kicker to offset a booklet at a specified count.

Features

  • Automated set up and changeovers
  • Job programming via system’s PC Controller
  • Easy waste removal



Key Applications

  • Catalogs
  • Newsletters
  • Magazines
  • Brochures
  • Marketing collateral with spot UV covers

Specifications

SPEED Up to 5050 sets per hour

RECEIVABLE BOOKLET SIZE 2.95″ x 4.13″ to 12.59″ x 14.33″

TRIM AMOUNT 0.04″ to 1.18″

TRIM THICKNESS 0.23″

OPTIONS Angle bade, Batch kicker, Gutter cutter, Long conveyor stacker
