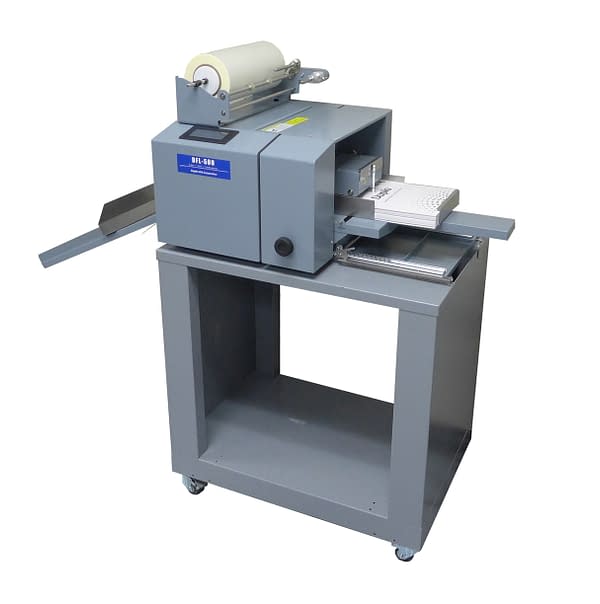

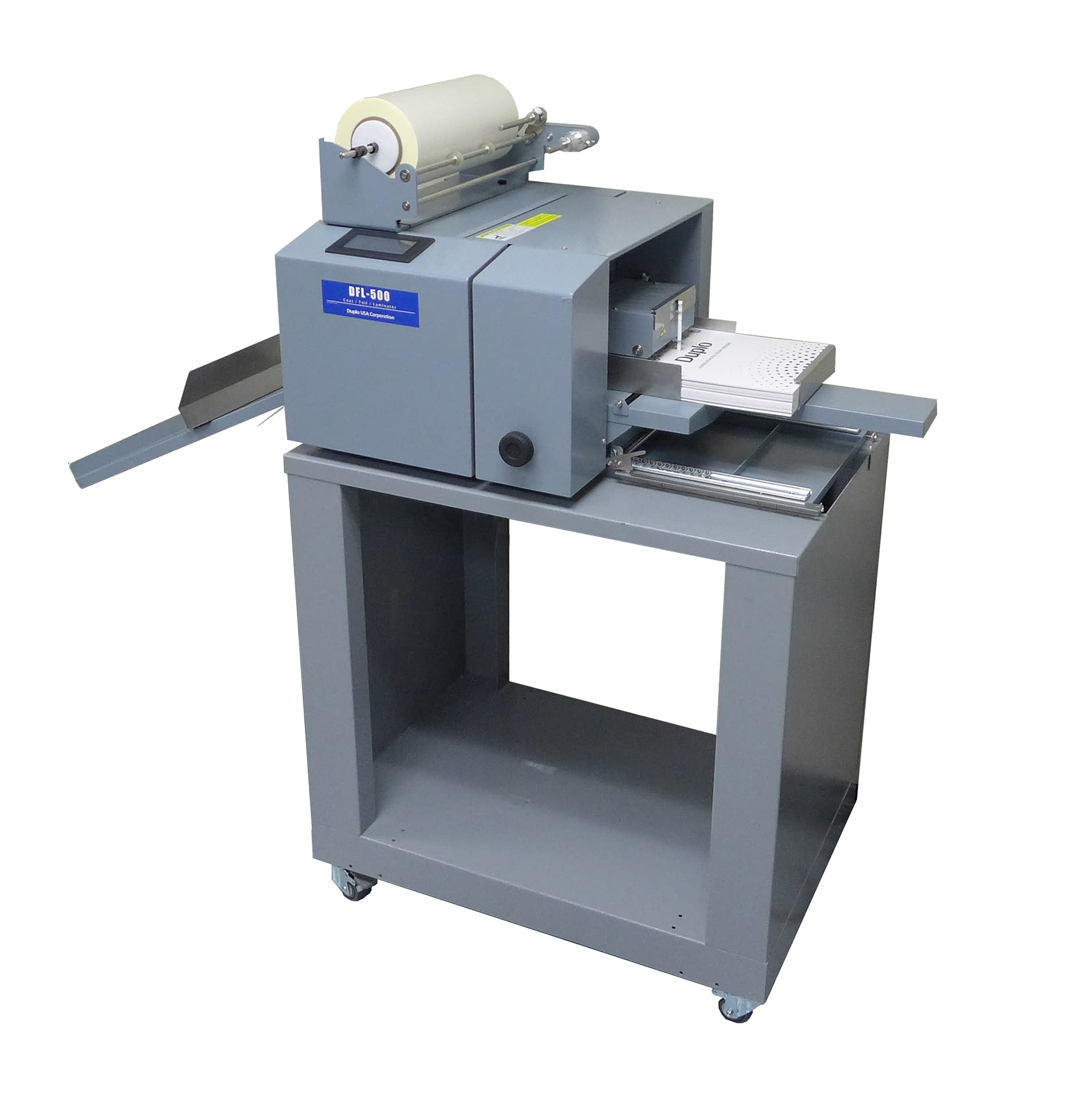

DFL-500 Dry Coat/Foil/Laminator

Home / Shop / Print Embellishment / DFL-500 Dry Coat/Foil/Laminator

    Multi-Purpose Embellishment Solution for Shorter Runs

    • Applies foil over printed toner
    • Applies dry coating and laminating films
    • Creates visually-appealing applications on a budget

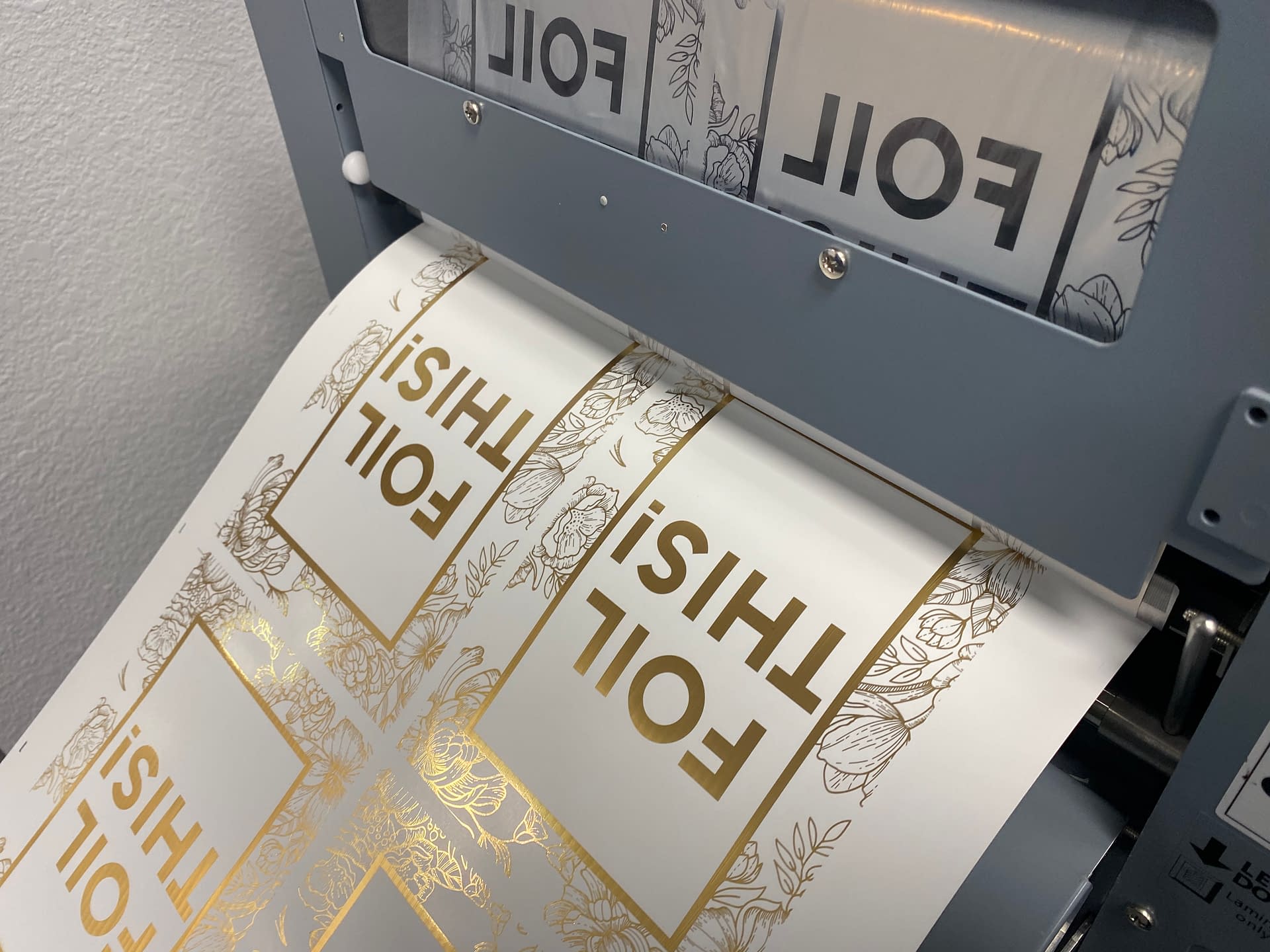

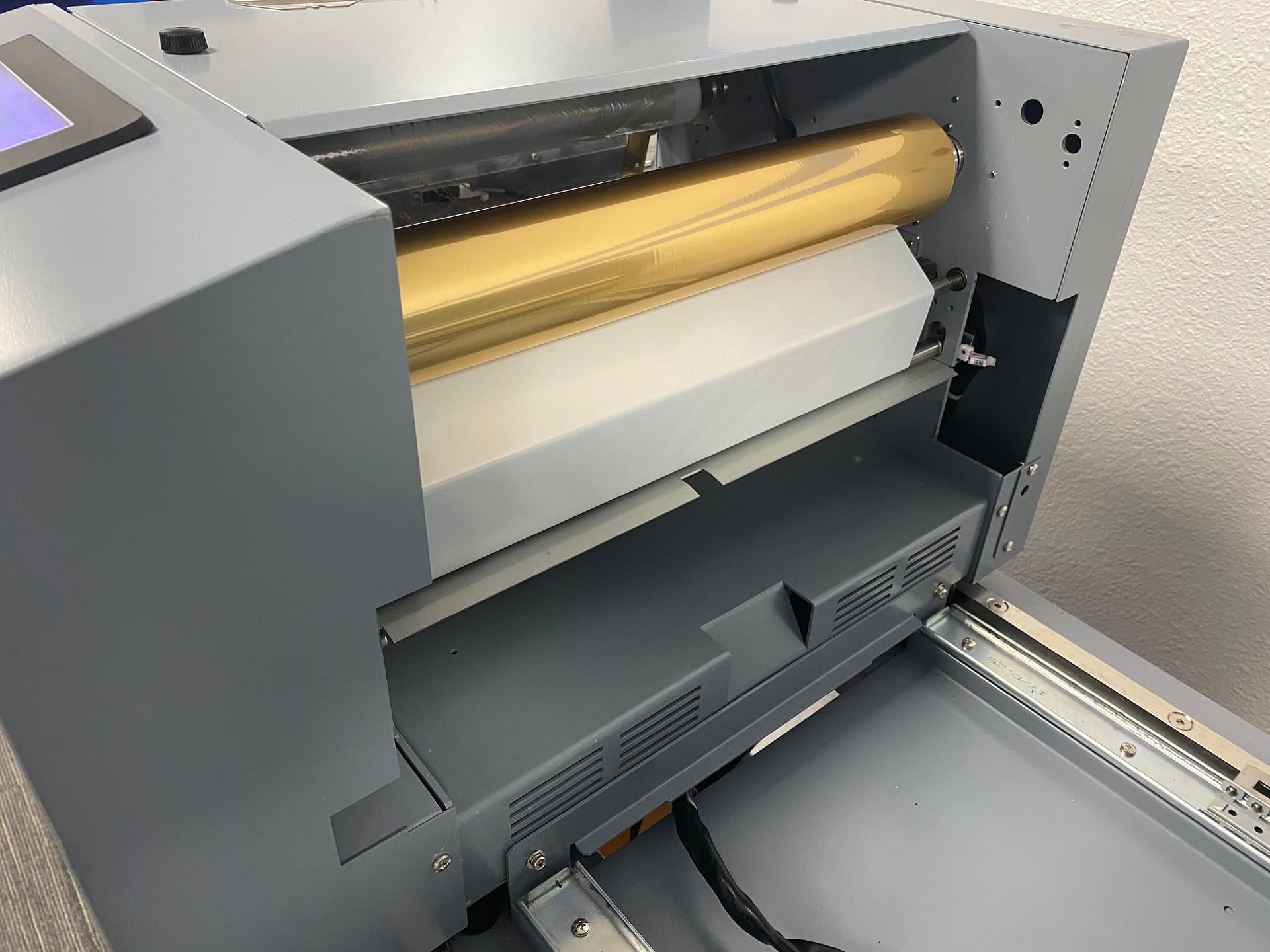

    The DFL-500 offers the flexibility to dry coat, foil, or laminate digitally-printed applications with ease. For dry coating, DFL-500 utilizes a ceramic thermal roller and heat control system to apply the film over the sheet. Matte and gloss lamination can be used, providing an added-value layer of protection that also helps spot coating embellishments stand out. For toner foiling, the DFL-500 applies adhesive foil anywhere black toner is printed without the use of dies. Foiling on top polymer can also be done for a raised foil effect.

    *Note: Dry coating film supply from Duplo USA has been discontinued and is no longer available.



    Features

    • Easy job set up and changeover
    • Foiling with gold, silver, blue, green, red, and matte gold colors
    • Automatic film cutting system to separate laminated sheets
    • Dust removing and de-curling system featured in more expensive laminators



    Key Applications

    • Packaging
    • Book covers
    • Business cards
    • Invitations
    • Tickets

    Specifications

    SPEED 15 sheets per minute

    INPUT PAPER SIZE Foil: 5.8” x 8.3” to 13” x 24”, Laminate: 8.3” x 11.7” to 13” x 24”

    FEEDER CAPACITY 2.5″

    PAPER WEIGHT 110-400 gsm
