DF-990A Folder

Home / Shop / Duplo / Folders / Office Products / DF-990A Folder

Semi-Automatic, Friction Feed Folding

  • Performs common fold types as well as custom and cross folds
  • Handles bond, NCR, and cover stock
  • Eliminates folding by hand

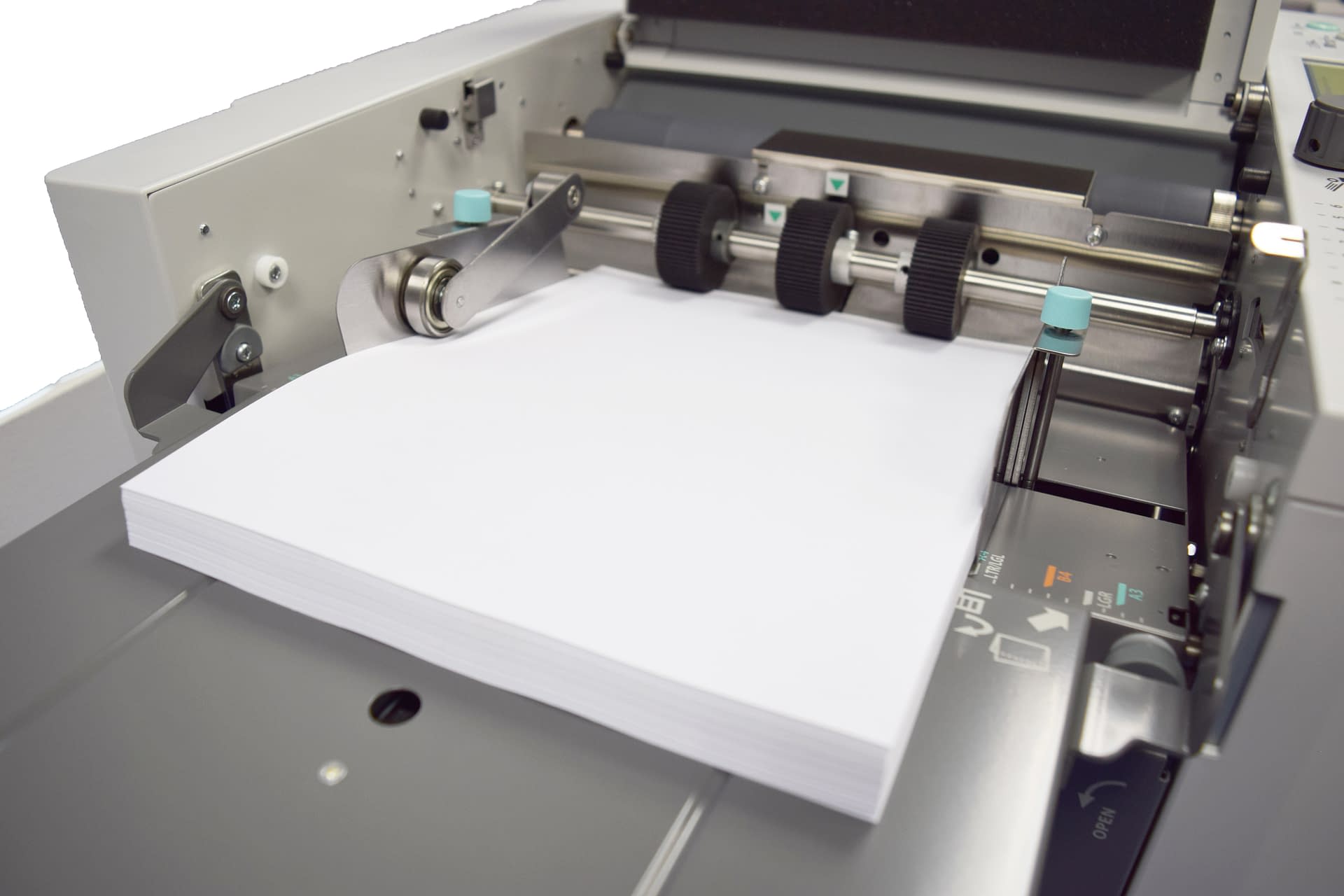

The DF-990A Folder is one of Duplo’s quietest tabletop folding machines. It features a speed of up to 260 sheets per minute and can process 12″ x 18″ sheets. The DF-990A utilizes a three-roller friction feed system to process a wide range of paper stocks and offers a hand-feed kit option which allows operators to manually feed one to three sheets a time. It can also perform cross folds by reprocessing single folded sheets and folding them in a second direction.

Features

  • Pre-programmed with 6 fold styles

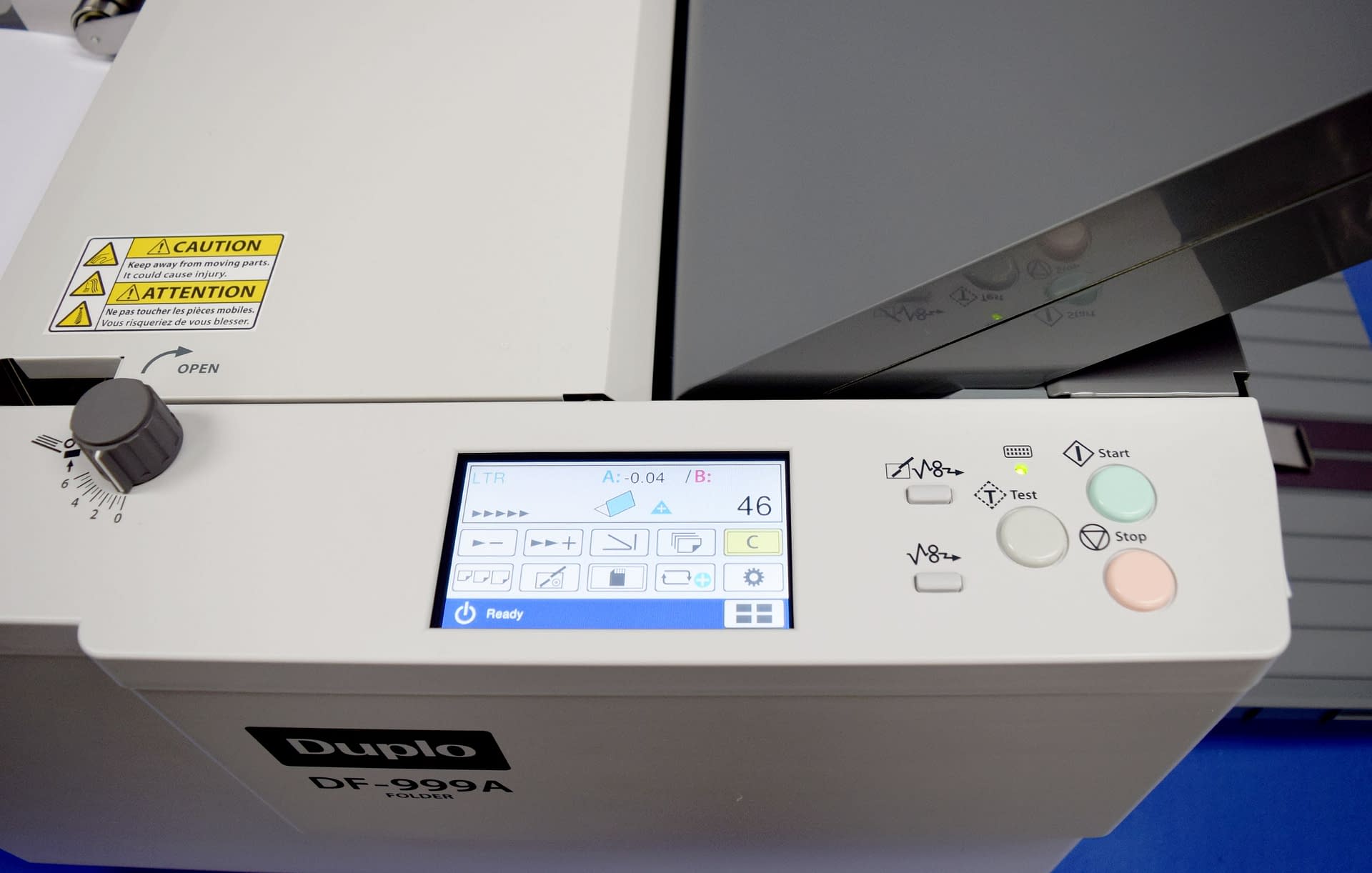

  • Easy job set up via LCD touchscreen panel
  • Sound absorbers for quiet operation
  • 15-job memory for most common jobs

Key Applications

  • Brochures
  • Menus
  • Newsletters
  • Invoices
  • Transpromos

Specifications

INPUT PAPER SIZE2.91″ x 4.13″ to 12.24″ x 18″

PAPER WEIGHTCoated: 84.9 to 127.9 gsm, Uncoated: 46.5 to 157 gsm

SPEEDUp to 260 sheets per minute

FEEDER CAPACITYUp to 500 sheets
