DC-646 Slitter/Cutter/Creaser

Home / Shop / Duplo / Slitter / Cutter / Creasers / DC-646 Slitter/Cutter/Creaser

All-in-One Precision Finishing for Mid-Range Production

  • Removes margins/gutters and prevents toner cracking
  • Creates custom T- and L-shape perforations and can fold in-line
  • Eliminates touchpoints and streamlines workflow

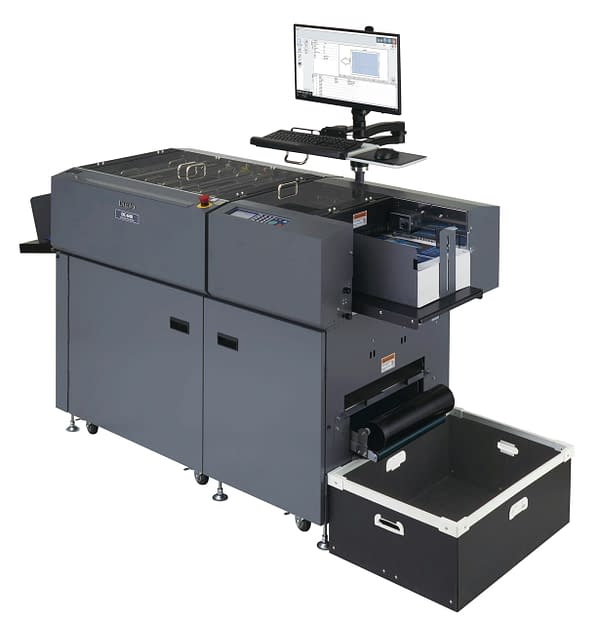

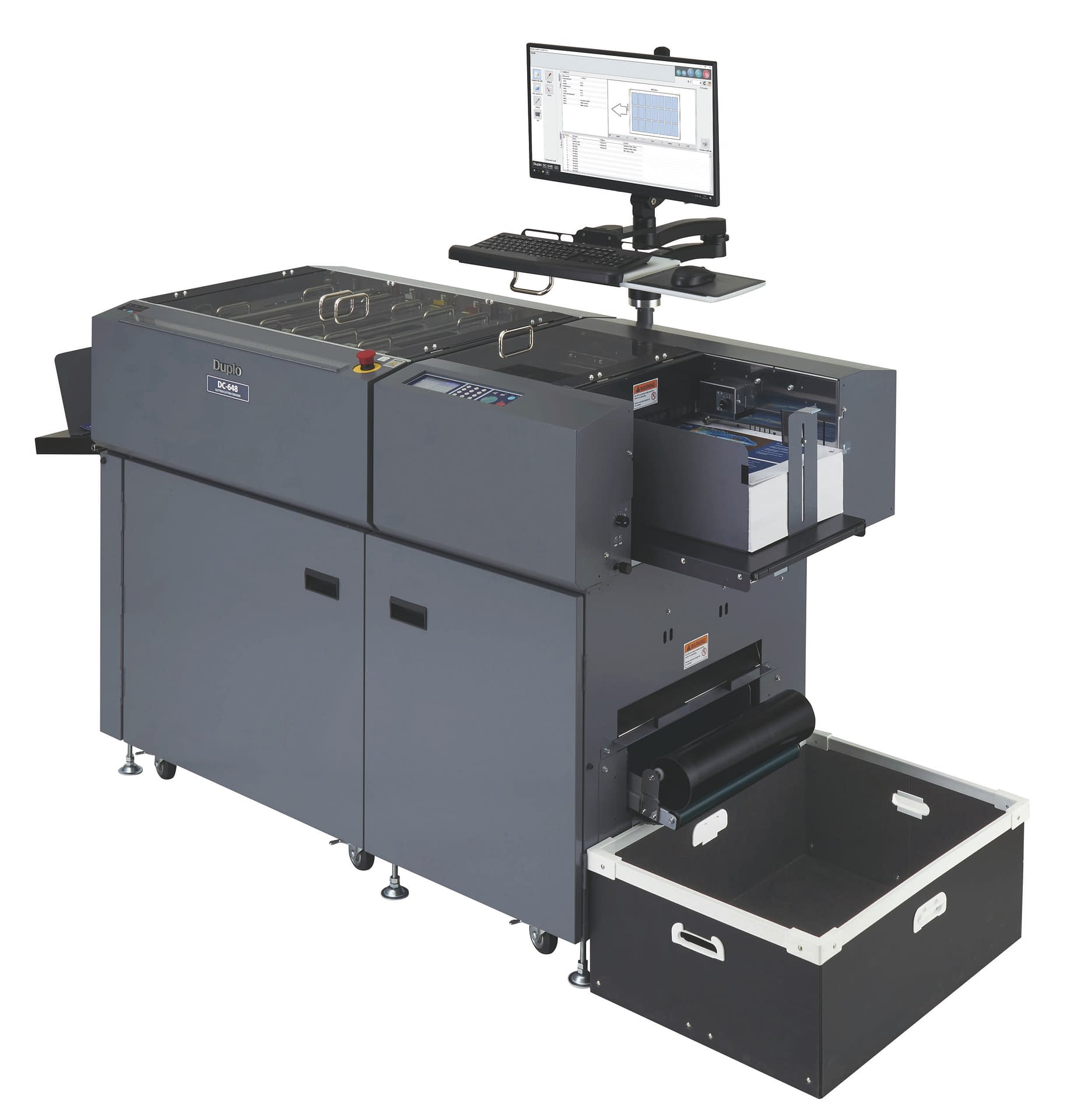

The fully automated DC-646 Slitter/Cutter/Creaser is Duplo’s mid-range solution. With its ability to slit/cut/crease, perforate, and fold digitally-printed applications in one pass, the DC-646 delivers professionally-finished jobs up to 30 sheets per minute. Cut job costs by doing away with time-consuming set ups and make-ready times. Finish jobs in quick turnarounds. Incredibly efficient and easy to use, the DC-646 produces a wide range of full-bleed applications from 24-up business cards to invitations and tickets on demand.



Features

  • Automated job set up and changeovers
  • Lightweight paper crease module to process thinner stock
  • Integrates with Fiery Impose to automate job preparation
  • Perforating and in-line folding options for additional finishing



Key Applications

  • Business cards and postcards
  • Gatefold invitations
  • Slit-scored greeting cards
  • Direct mail with perforated reply cards
  • Marketing collateral

Specifications

SPEED Up to 30 sheets per minute

INPUT PAPER SIZE 8.26” x 8.26” to 14.56” x 26.37”

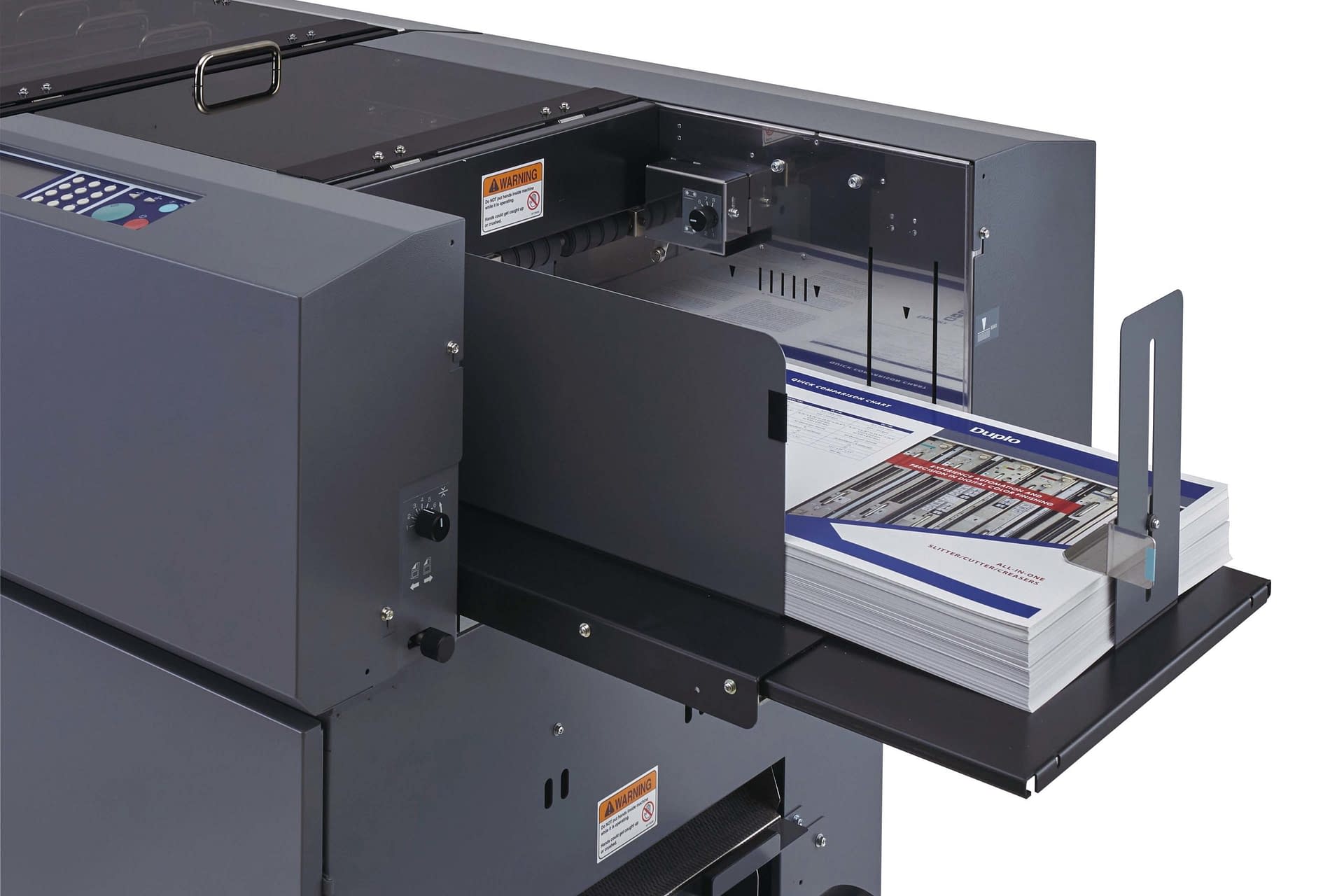

FEEDER CAPACITY 3.9″

PAPER WEIGHT 110-400 gsm (up to 350 gsm when creasing)

SLITS Up to 8 per sheet

CUTS Up to 25 per sheet

CREASES Up to 20 per sheet

OPTIONS 48″ long conveyor stacker, Cross perforating module, Integrated folding system, Lightweight paper creaser module, PC and PC arm, Rotary tool module, Slitting module
