DC-516 Pro Multi-Finisher

Home / Shop / Duplo / Slitter / Cutter / Creasers / DC-516 Pro Multi-Finisher

High Speed Finishing for Production Environments

  • Removes margins and gutters
  • Performs up and down creases
  • Creates custom T- and L-shape perforations

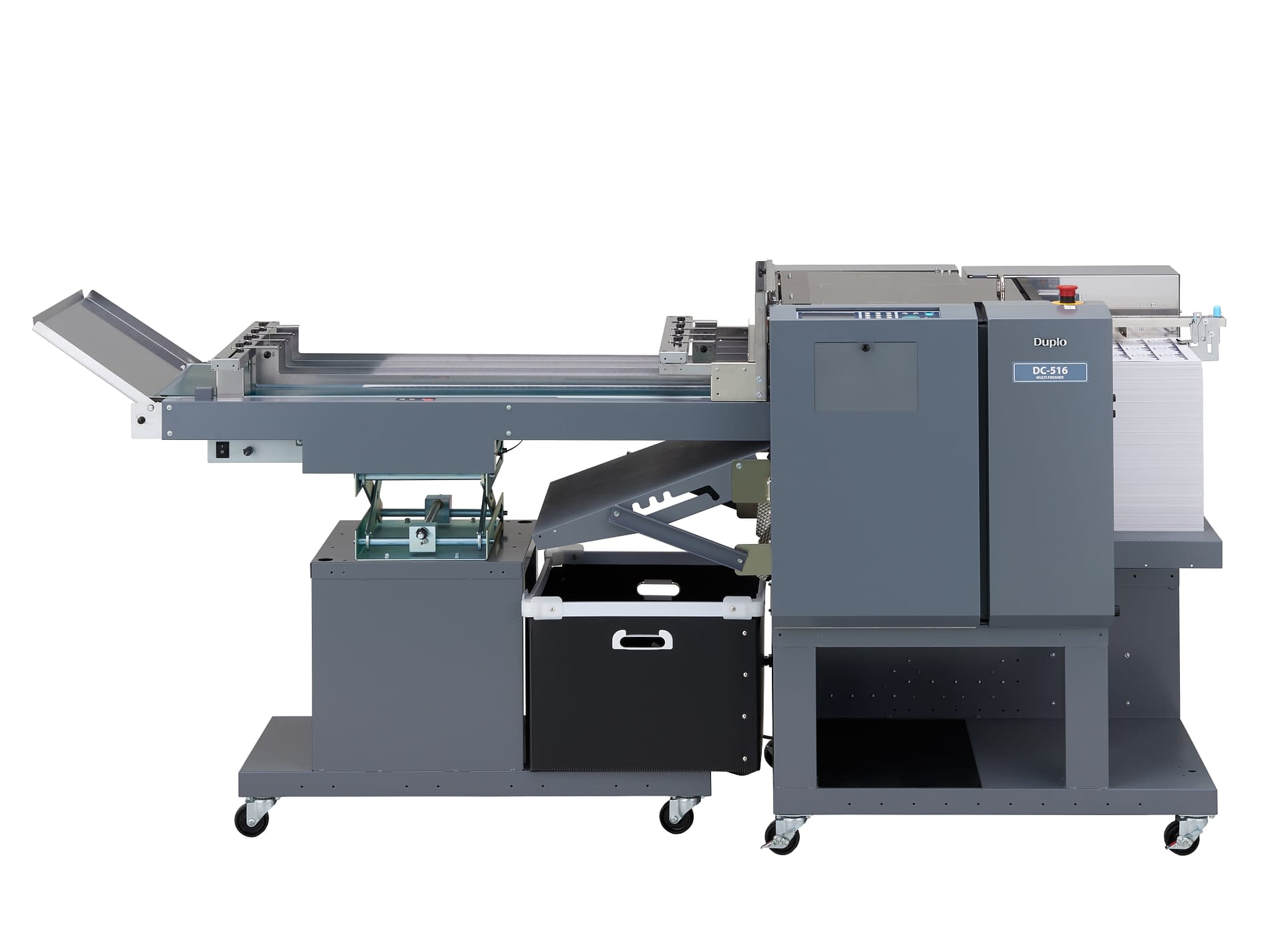

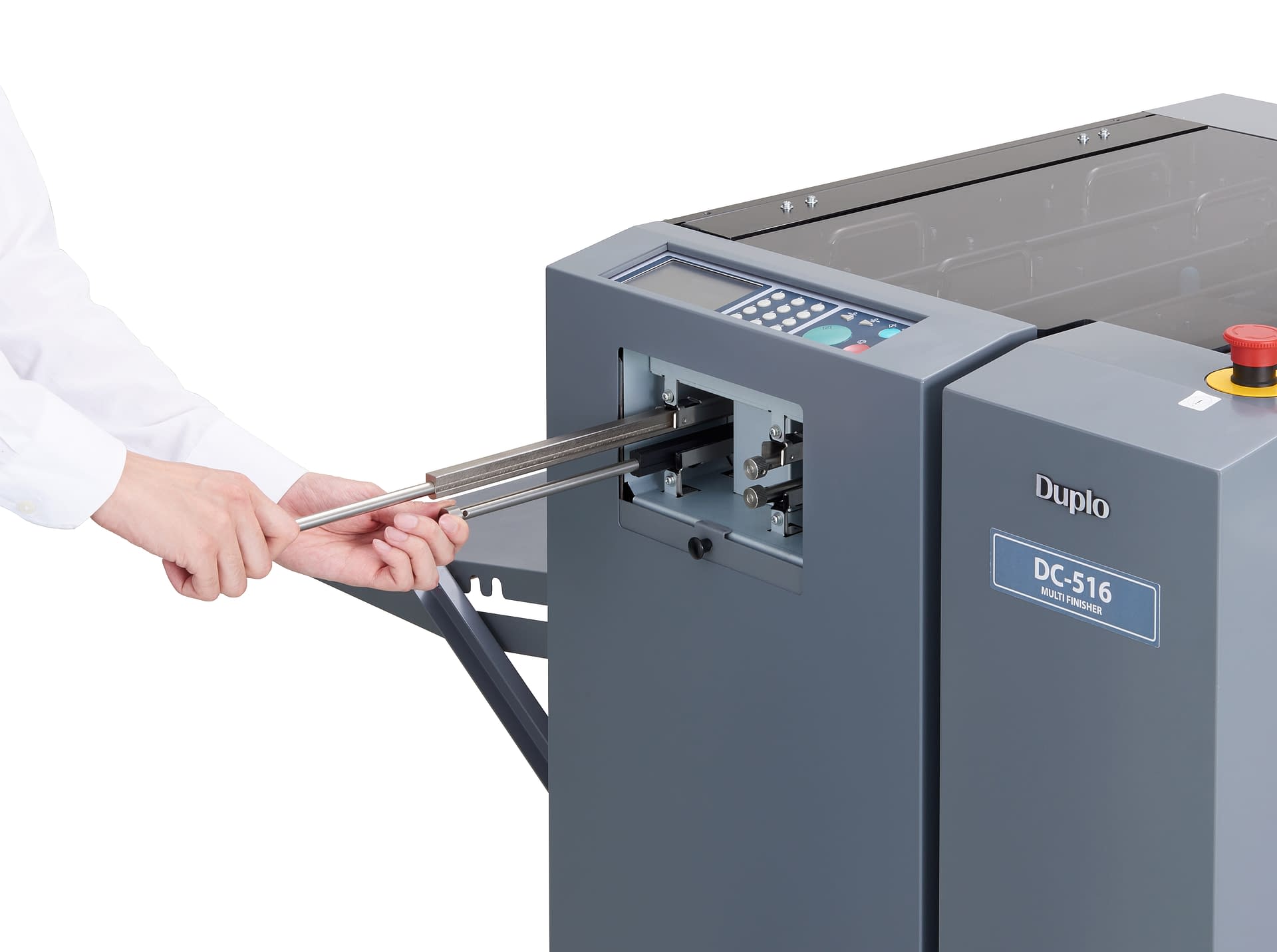

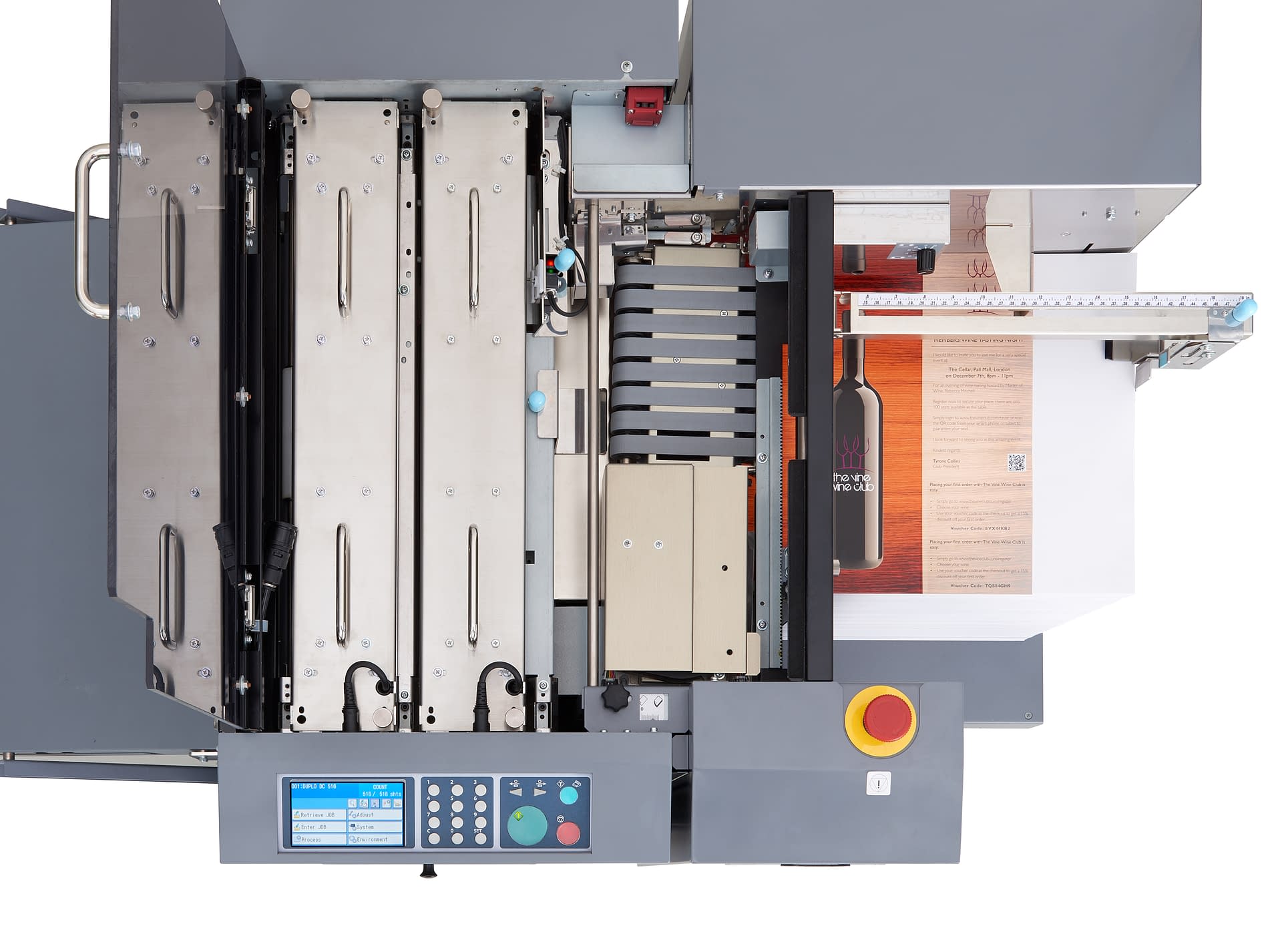

The DC-516 Pro Multi-Finisher offers the flexibility to be used as a high speed creaser, cutter, or perforating device – or a combination of any two – for finishing longer runs. Dual creasing modules perform positive or negative patterns up to 100 sheets per minute and two can be used simultaneously to produce perfect bound covers with hinges and Z-fold pieces. If cutting high volume cards is what you need, you can quickly cut 36-up business cards on 14″ x 20″ using the cutting and slitting modules. The rotary tool and cross perforating modules can be used to create custom T- or L-shape perforations for large production jobs.



Features

  • Easy job set up and changeover

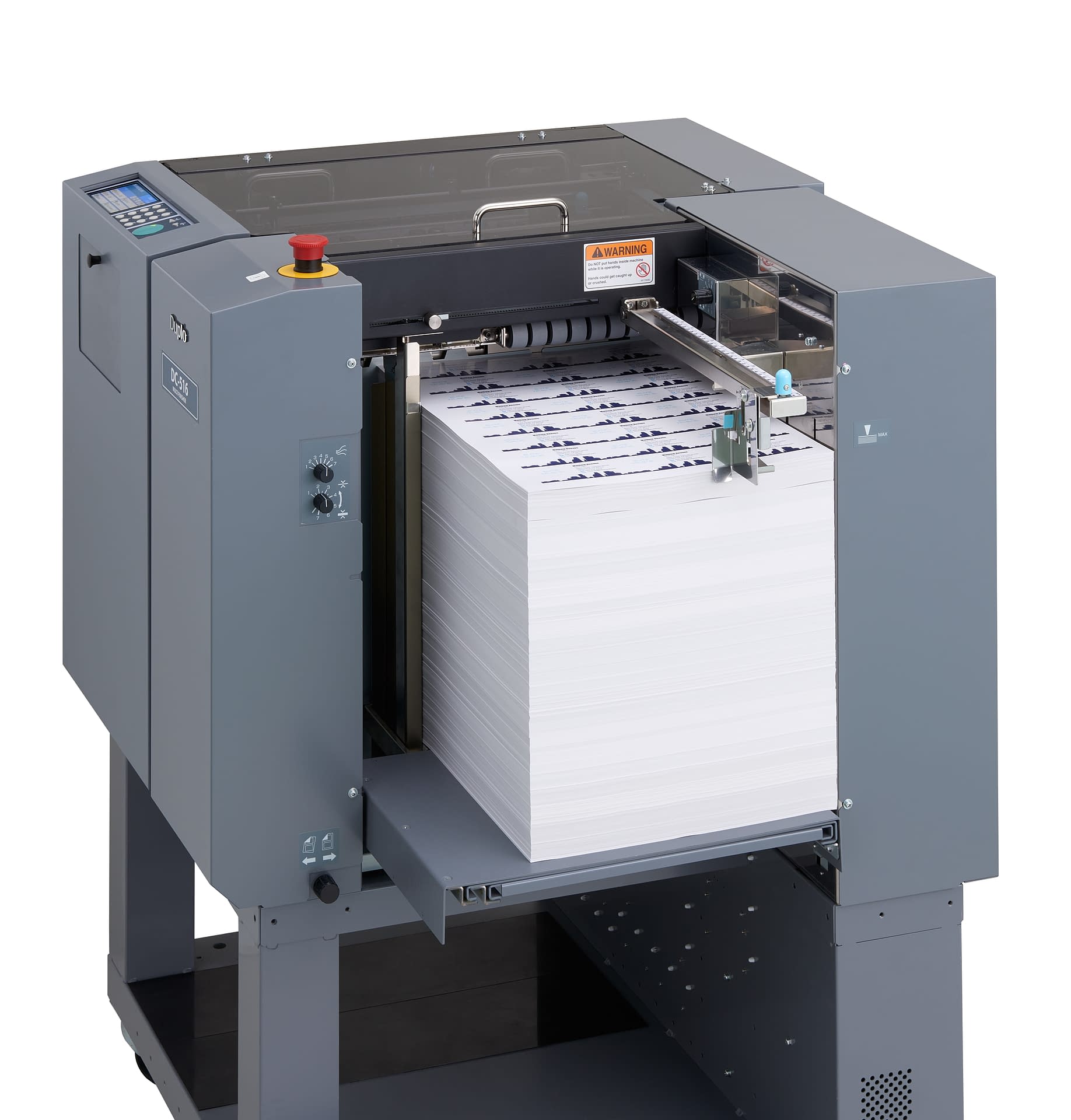

  • 14″ feed capacity for longer runs
  • LCD touchscreen panel with 250 job memory
  • Optional perforating and dual creasing modules for additional finishing



Key Applications

  • Business cards and postcards
  • Z-folds and accordion pieces
  • Perfect bound covers
  • Direct mail with perforated reply cards
  • Marketing collateral

Specifications

SPEED Creasing: 100 sheets per minute, Cutting: 12 sheets per minute

INPUT PAPER SIZE 5.5″ x 5.9″ to 14.56″ x 26.37″

FEEDER CAPACITY 14.2″

PAPER WEIGHT 110-400 gsm

SLITS Up to 10 per sheet

CUTS Up to 30 per sheet

CREASES Up to 20 per sheet

OPTIONS Cross perforating module, Ddditional creasing module for up and down creases, Rotary tool module
