DC-516 High Speed Creaser

Home / Shop / Duplo / Slitter / Cutter / Creasers / DC-516 High Speed Creaser

High Speed Finishing for Production Environments

  • Prevents toner cracking
  • Performs up and down creases
  • Can also cut and perforate

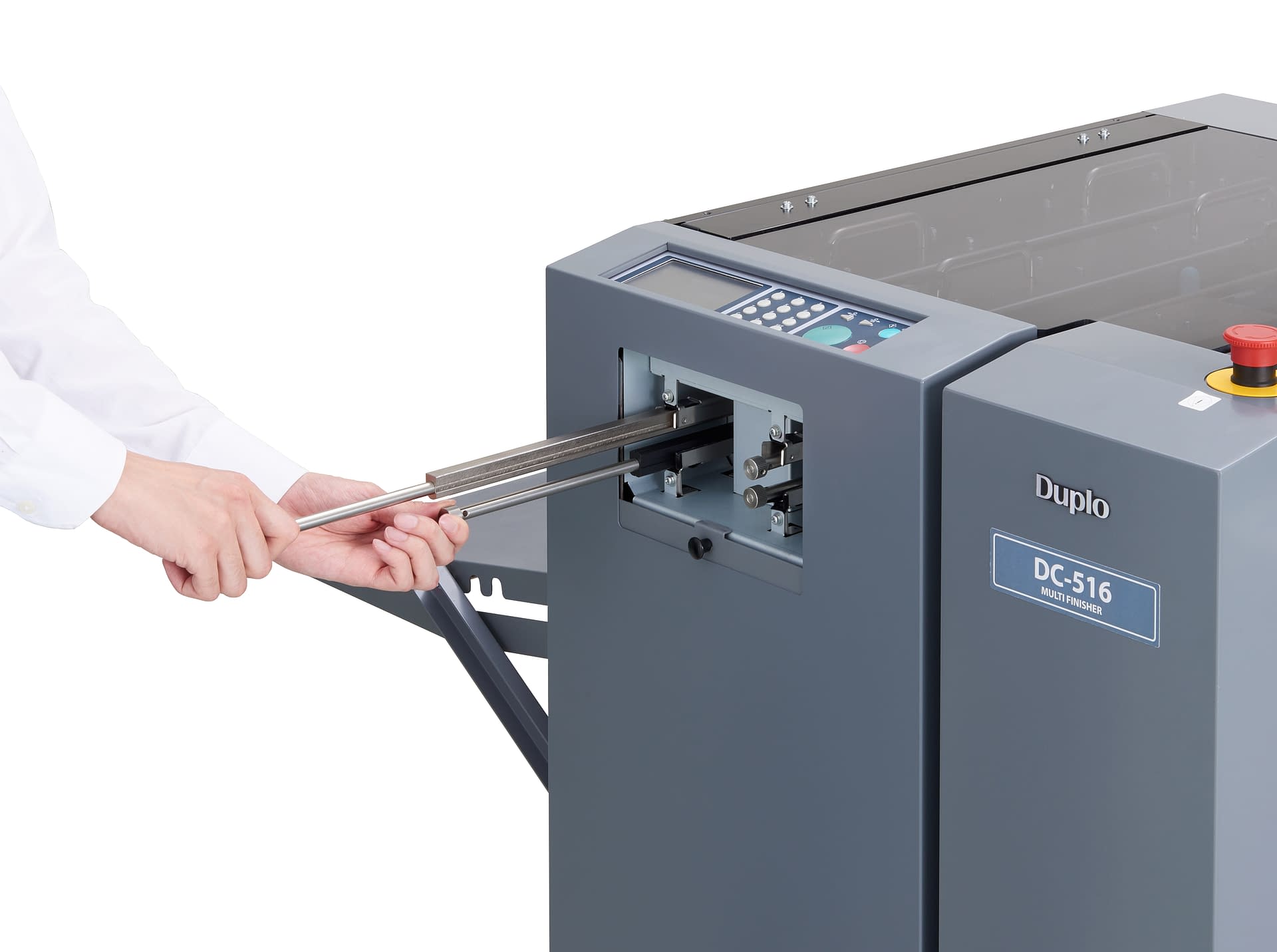

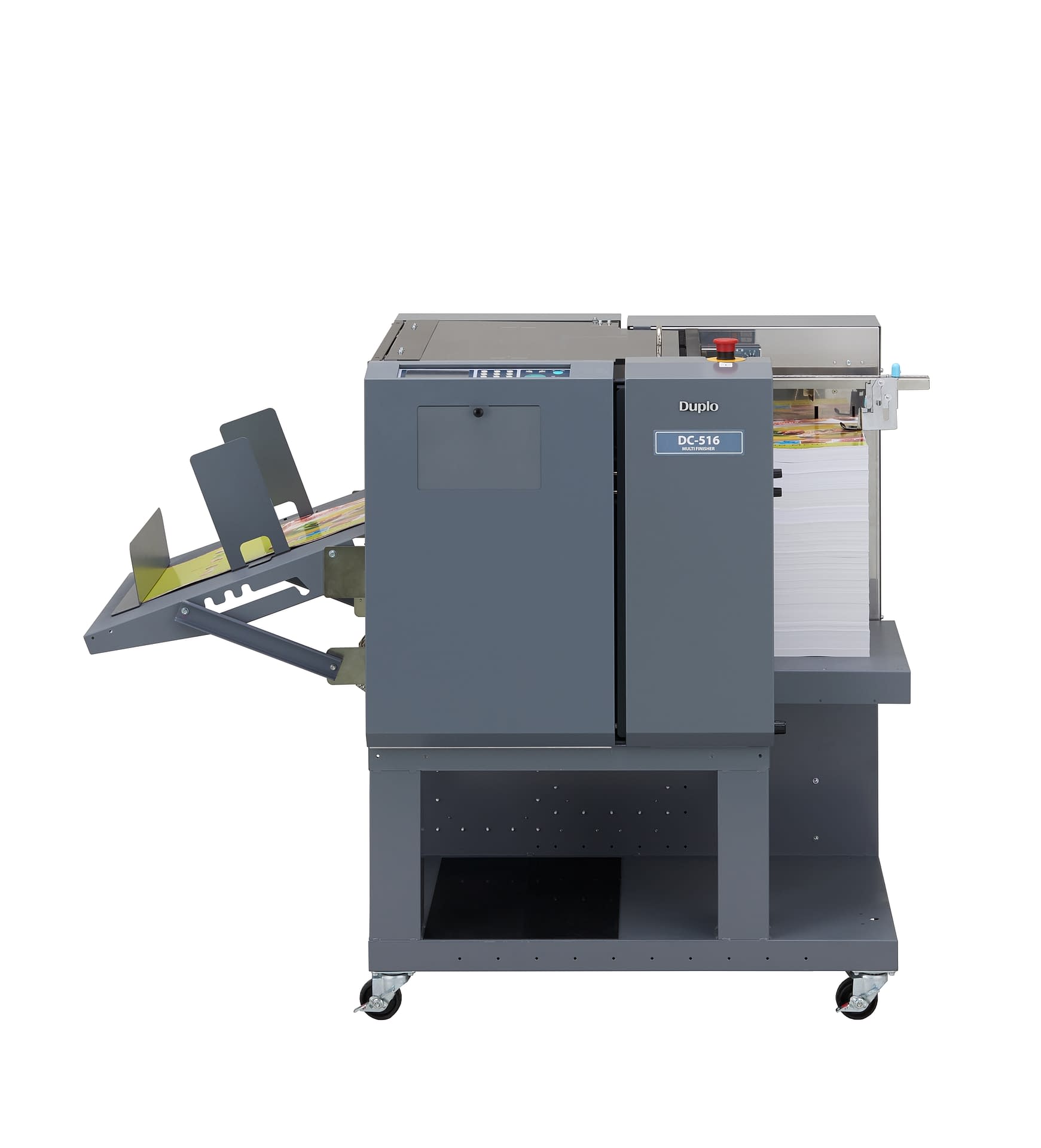

The DC-516 High Speed Creaser eliminates unattractive fold lines on digitally-printed applications up to 100 sheets per minute. Creasing prior to folding allows fold devices to bend the sheets with greater ease, resulting in cleaner fold lines. The DC-516 delivers with two dual creasing modules that perform positive or negative patterns, which can be used simultaneously and interchangeably when up and down creases are required to fold applications in opposite directions. Ideal for producing creative applications such as perfect bound covers with hinges and Z-fold pieces.

Features

  • Easy job set up and changeover
  • 14″ feed capacity for longer runs
  • LCD touchscreen panel with 250 job memory
  • Optional cutting, slitting, and perforating modules for additional finishing



Key Applications

  • Z-folds and accordion pieces
  • Gatefold invitations
  • Perfect bound covers
  • Greeting cards
  • Marketing collateral

Specifications

SPEED Creasing: 100 sheets per minute (8.5″ x 11″ SEF 1 crease), Cutting: 12 sheets per minute (13″ x 19″ 24-up business cards)

INPUT PAPER SIZE 5.5″ x 5.9″ to 14.56″ x 26.37″

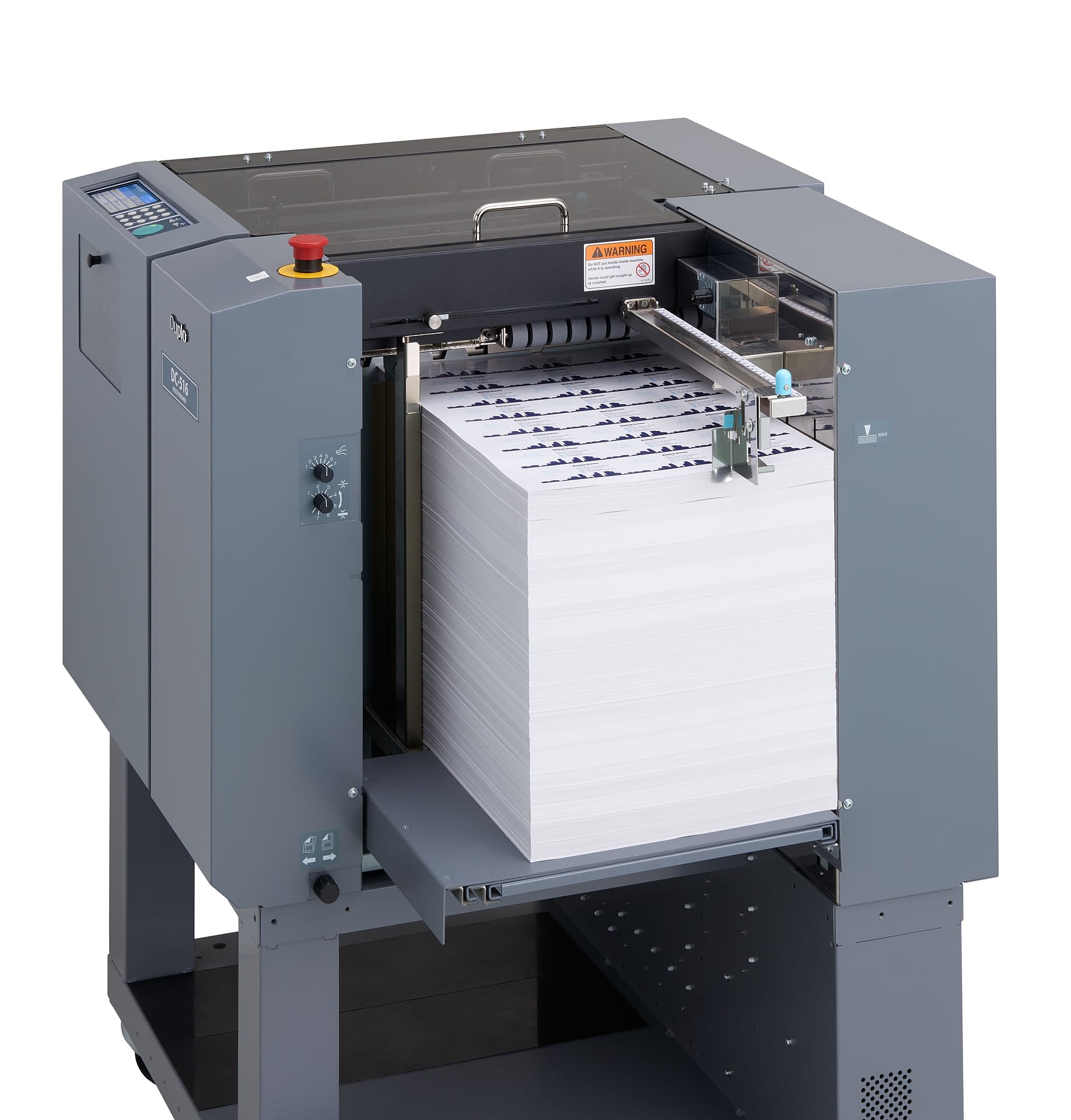

FEEDER CAPACITY 14.2″

PAPER WEIGHT Creasing: 110-400 gsm, Cutting/Slitting: 110-350 gsm

CREASES Up to 20 per sheet

SLITS Up to 10 per sheet with optional modules

CUTS Up to 30 per sheet with optional modules

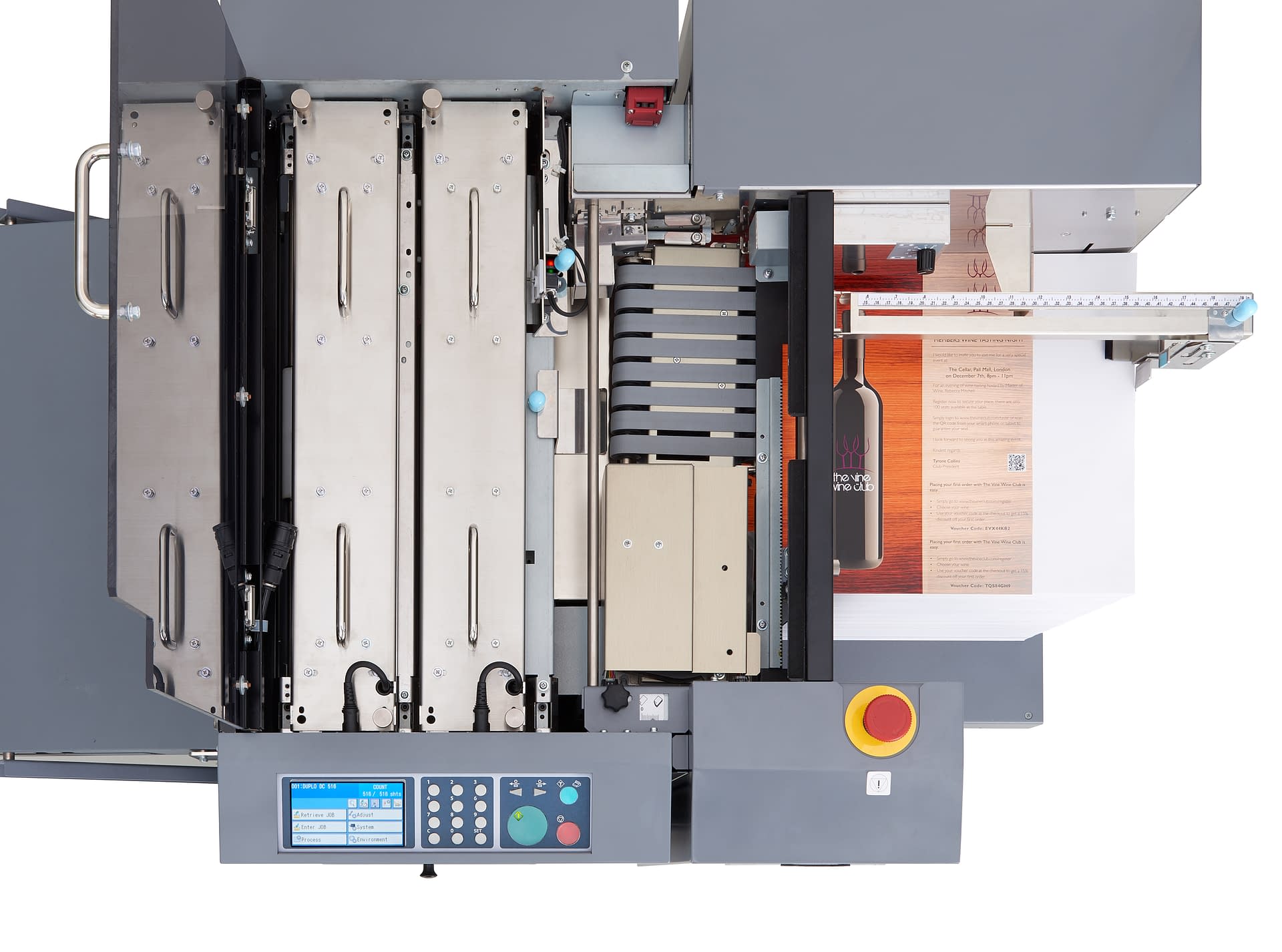

OPTIONS Cross perforating module, Cutting module, Long conveyor stacker, Rotary tool module, Slitting module
