DBM-HSC High Speed Creaser

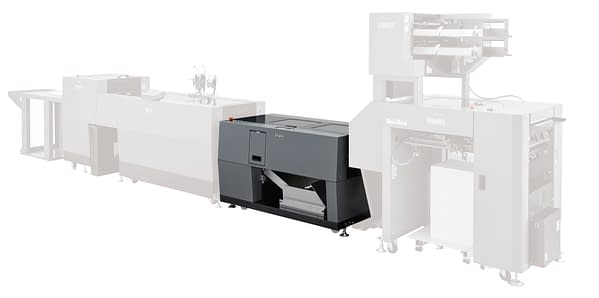

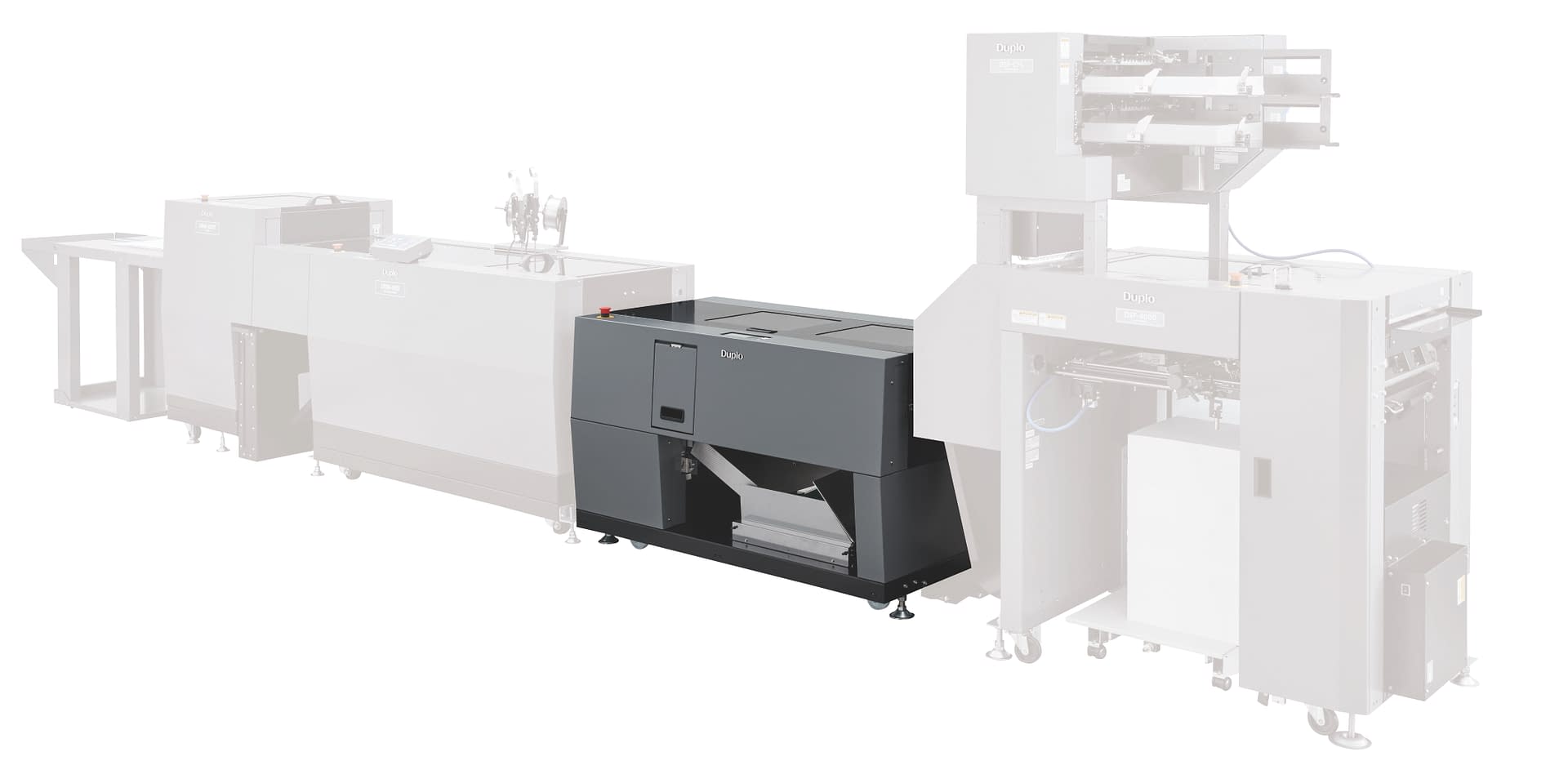

Add In-Line Finishing to your 600i Pro/600i Digital Booklet System

  • Prevents toner cracking
  • Removes white borders
  • Provides a full-bleed finish

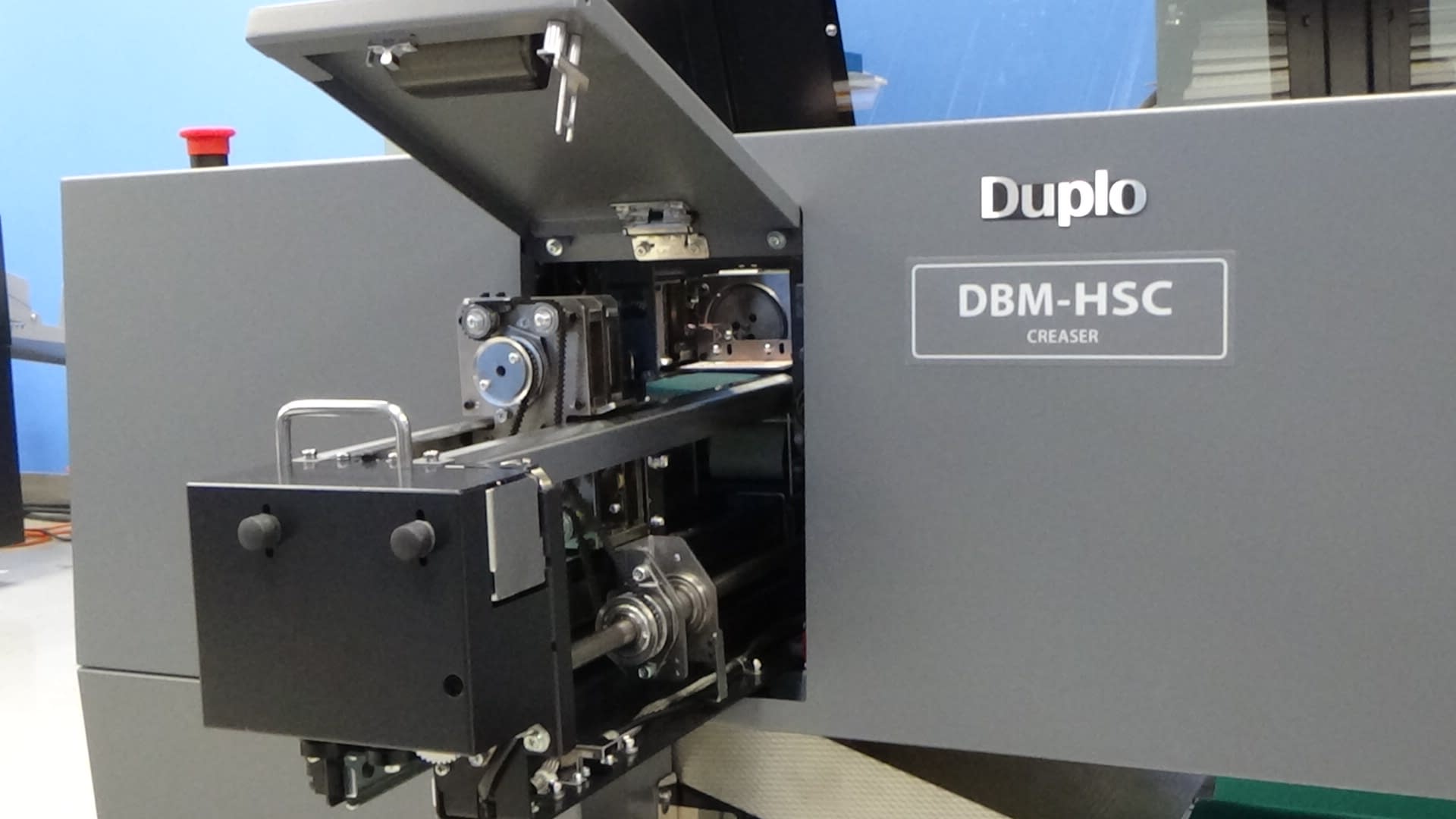

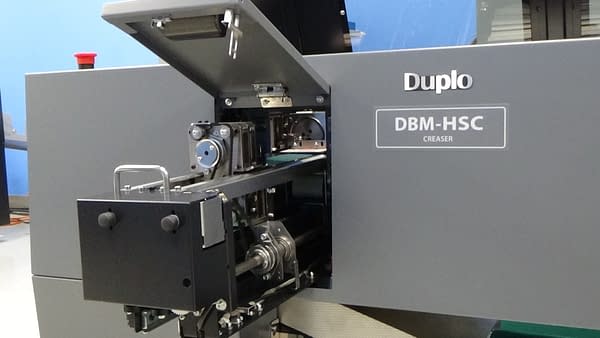

The DBM-HSC High Speed Creaser brings in-line creasing and slitting to your bookletmaking. Creasing the cover and innermost sheets prior to folding results in cleaner folds. The optional slitting module trims the head and foot of each sheet, up to 1″ per side, giving your booklets a full-bleed finish. By performing this in-line, you can eliminate the task of pre-cutting the sheets on a guillotine cutter and reduce downtime.

Features

  • Automated set up and changeovers
  • Job programming via system’s PC Controller

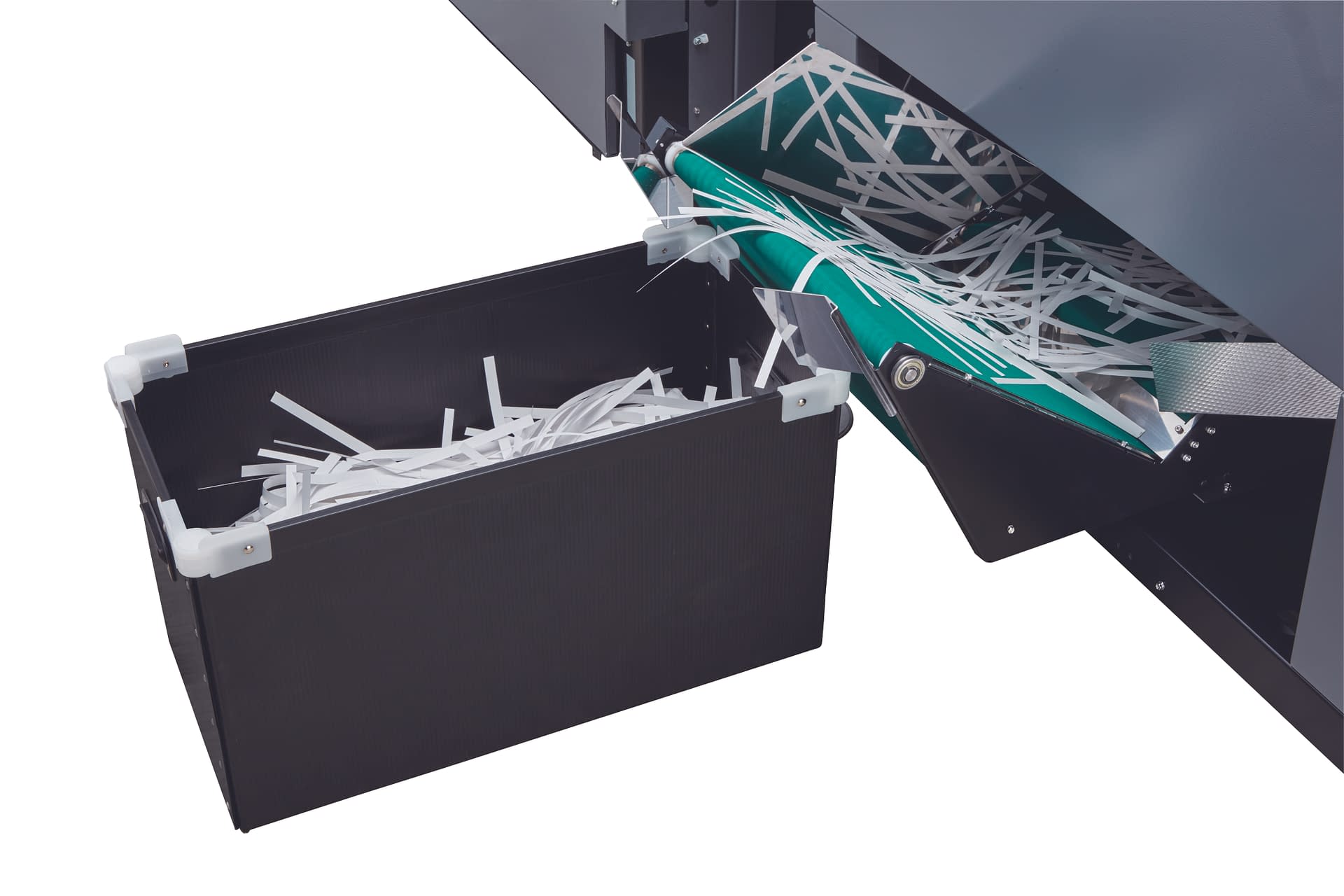

  • Easy waste removal

Key Applications

  • Catalogs
  • Newsletters
  • Magazines
  • Brochures
  • Marketing collateral with spot UV covers

Specifications

SPEED Up to 285 sheets per minute

INPUT PAPER SIZE 4.14″ x 6.70″ to 14.33″ x 25.19″

NUMBER OF SLITS 2

NUMBER OF CREASES 1, center position
