CP375 DUOTF Touchline

Home / Shop / Duplo / Slitter / Cutter / Creasers / CP375 DUOTF Touchline

High Speed Creasing, Perforating, and Folding for Production Environments

  • Prevents toner cracking and folds in-line
  • Performs up and down creases
  • Creates cross perforations

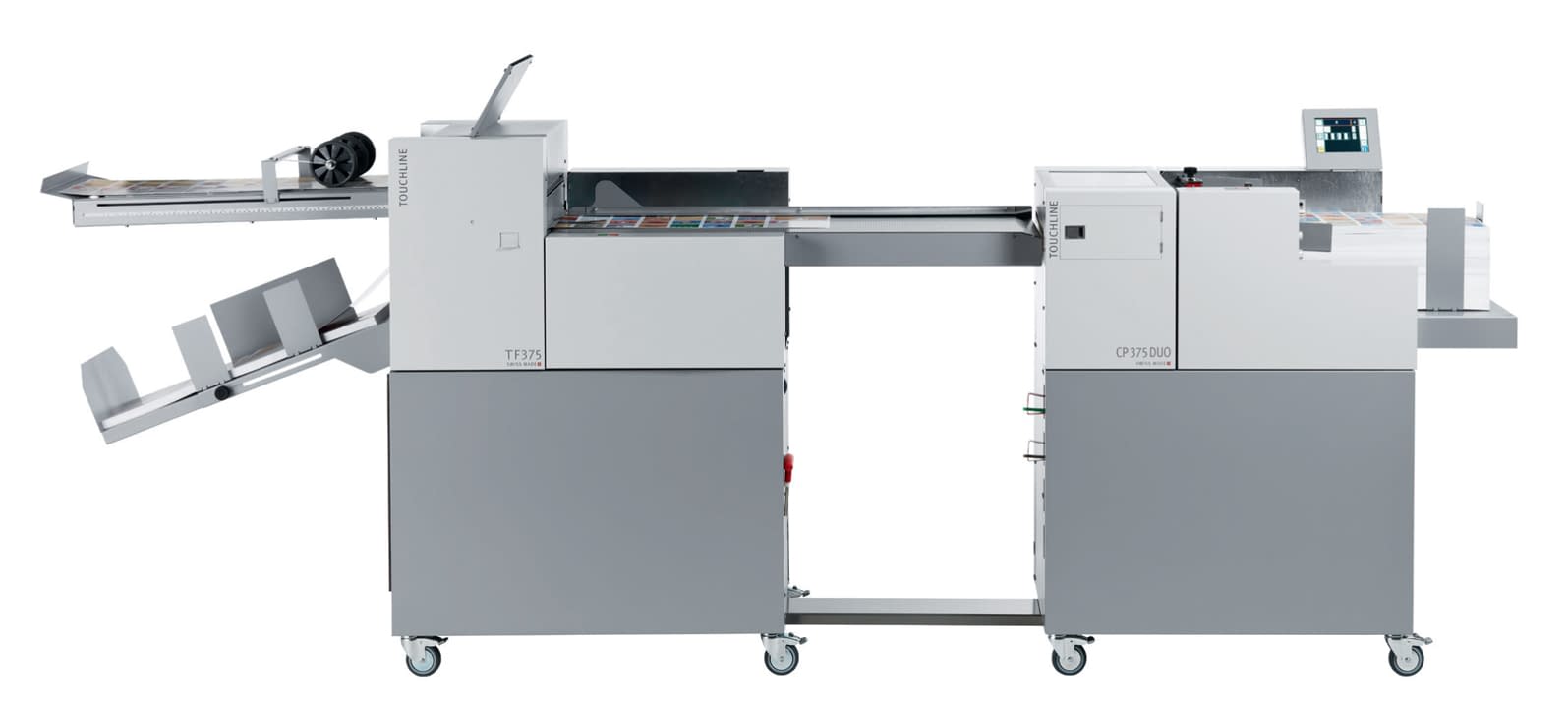

Together with the TF Touchline folding unit, the CP375 DUOTF Touchline creases and folds digitally-printed applications up to 6,000 sheets per hour. The CP375 DUOTF utilizes the Multigraf Swing-Bar creasing system to perform positive or negative patterns. Both tools be used simultaneously and interchangeably when up and down creases are required to fold applications in opposite directions. The cross perforating tool can be used for tear-off applications and can be combined with the stop perforating tool to create cross perforations.



Features

  • Easy job set up and changeover

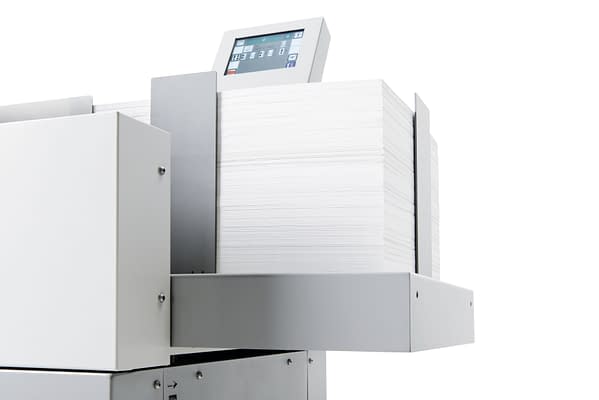

  • High feed capacity for longer runs
  • User-friendly touchscreen control panel
  • Standard positive and negative creasing tools, cross and stop perforation tools, and folding device



Key Applications

  • Z-folds and accordion pieces
  • Gatefold invitations
  • Perfect bound covers
  • Greeting cards
  • Marketing collateral

Specifications

SPEED Up to 6000 sheets per hour

INPUT PAPER SIZE 4.13″ x 5.82″ to 14.76″ x 41.33″

FEEDER CAPACITY 7.08″

PAPER WEIGHT 80-400 gsm

CREASES Up to 20 per sheet

PERFORATIONS Up to 20 per sheet
