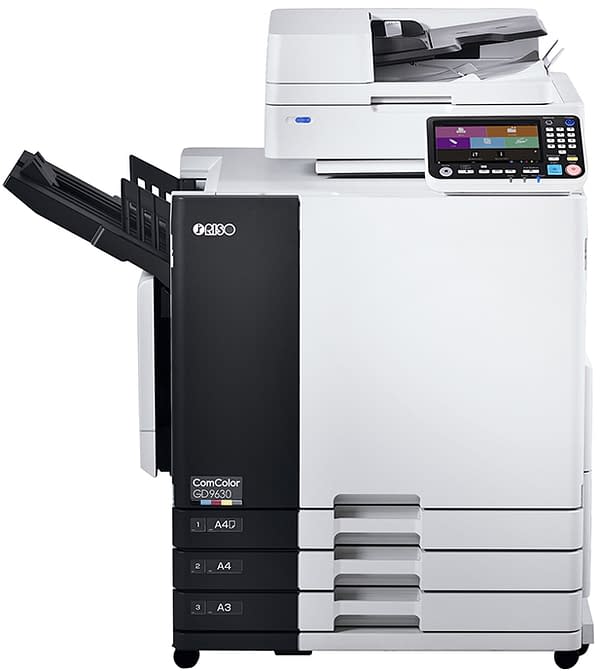

ComColor GD 9630

Home / Shop / Riso / Inkjet Printers / ComColor GD 9630

Engineered to empower your business with high volume, reliable and quality output

Regardless of the number and types of images or volume of text, full-color images remain true to the original with the GD 9630. For text-intensive documents, words remain crisp and easy to read. Super High-speed Printing Single-pass full-color printing of up to 160 Letter size long-edge feed color pages per minute with fast-drying oil-based pigment ink is possible through a unique print engine configured with static inline inkjet heads arranged in parallel. Transactional prints, transpromotional materials, invoices, and other routine business documents are also fast.

Benefits

  • Productive

    The RISO ComColor GD9630 can print 800 full color single-sided pages in approximately 5 minutes. Engineered for high-production environments, the GD9630 is highly reliable and built to last.

  • Superior Quality

    Newly developed ink technology for the ComColor GD series reduces ink see-through and improves black ink density. Envelope printing is improved with an enhanced paper feeding mechanism for reliable envelope handling, and a new image processing printer driver function for enhanced image quality.

  • Superior Simplicity

    With improved performance and functions, ComColor provides convenience and simplicity for the user. Color LCD touch screen, easy-to-change ink cartridges, and direct printing from a USB flash drive make operation a breeze.

  • Reduced Costs

    To minimize ink consumption and maintain optimal print quality, RISO’s standard color profile intelligently controls the quantity of ink drops used for each individual color, according to the paper type, to effectively reproduce the original image.

  • Eco-Friendlier Than Ever

    RISO ComColor GD9630 reduces power consumption to an all-time low with the introduction of an automatic power shut-off, using even less power than previous models. All ComColor machines are ENERGY STAR® certified, and boast many other energy-efficient innovations. The ComColor technology is truly green.

  • Increased Capabilities

    Productivity-enhancing accessories automate your workflow from start to finish. Use the wrapping envelope finisher to have the industry's first complete in-line print-to-mail solution, or add the ComColorExpress FS2000C, an EFI™ Fiery® server to help improve operation and the management of print jobs, files and media. High capacity feeder/stacker, perfect binding, and various finishing options streamline production, and eliminate the need for outsourcing.

Specifications

Print Type Line-type inkjet system

Ink Type Oil-based pigment ink (Cyan, Magenta, Yellow, Black, Gray)

Print Resolution Standard/High Chromogenic
Black: 600 dpi (main scanning direction) × 600 dpi (sub-scanning direction)
Cyan, Magenta, Yellow, Gray: 300 dpi (main scanning direction) × 300 dpi (sub-scanning direction)

Fine
Black: 600 dpi (main scanning direction) × 600 dpi (sub-scanning direction)
Cyan, Magenta, Yellow, Gray: 300 dpi (main scanning direction) × 600 dpi (sub-scanning direction)

Number of Gray Levels Black: 4 gray levels
Cyan, Magenta, Yellow, Gray: 12 gray levels

Data Processing Resolution Standard/High Chromogenic Black: 600 dpi × 600 dpi
Cyan, Magenta, Yellow, Gray: 300 dpi × 300 dpi
Fine Black: 600 dpi × 600 dpi
Cyan, Magenta, Yellow, Gray: 300 dpi × 600 dpi
Line Smoothing 600 dpi × 600 dpi

PDL (Page Description language) RISORINC/C IV

Supported Protocols TCP/IP, HTTP, HTTPs (TLS), DHCP, ftp, lpr, IPP, SNMP, Port9100 (RAW port), IPv4, IPv6, IPSec

Supported Operating Systems (standard) Microsoft®: Windows Vista® (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 10 (32-bit/64-bit), Windows Server® 2008 (32-bit/64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2016 (64-bit)

Supported Operating Systems (optional) (Optional PS kit is required.)
Mac: OS X 10.8 (64-bit), 10.9 (64-bit), 10.10 (64-bit), 10.11 (64-bit), 10.12 (Sierra) (Only works with PS-Kit FG10)
Linux (compatible with PPD only)

Network Interface Ethernet 1000BASE-T, 100BASE-TX, 10BASE-T (2ch)

Memory Capacity 4GB

Hard Disk
(One gigabyte (GB) is calculated as 1 billion bytes.) Capacity: 500 GB
Available Space: Approx. 430 GB

Operating System Linux

Power Source AC 100 V – 240 V, 12.0 A – 6.0 A, 50 Hz – 60 Hz

Power Consumption Max. l,200W
Ready (Without printing and temperature adjustment operation): 150 W or less
Sleep (When setting [(Power Consumption On sleep)] to [Low].): 4 W or less
Stand-by: 0.5 W or less

Printing Speeds

  • Warm-up Time
  • 2 min. 30 sec. or less (at room temperature of 23 ºC (73.4 ºF))
  • First Print Time
    (Within 10 minutes after the last print job)
  • 5 sec. or less (A4 long-edge feed)
  • First Copy Time
    (Within 10 minutes after the last print job)
  • 7 sec. or less (A4 long-edge feed)
  • Continuous Print Speed
  • When using plain paper and recycled paper (85 gsm (23-lb bond)), and standard density setting.
    Chart used: Print measurement pattern [Color measurement sample 2 (JEITA standard pattern J6)]
    The continuous print speed varies depending on the type of optional output equipment connected.
  • A4/Letter long-edge feed
  • Simplex: 160 ppm Duplex: 80 sheets/minute (160 ppm)
  • A4/Letter short-edge feed
  • Simplex: 120 ppm Duplex: 60 sheets/minute (120 ppm)
  • B4 (JIS) short-edge feed
  • Simplex: 102 ppm Duplex: 44 sheets/minute (88 ppm)
  • Legal short-edge feed
  • Simplex: 104 ppm Duplex: 44 sheets/minute (88 ppm)
  • A3 short-edge feed
  • Simplex: 88 ppm Duplex: 42 sheets/minute (84 ppm)
  • Ledger short-edge feed
  • Simplex: 86 ppm Duplex: 42 sheets/minute (84 ppm)

Operating Environment

  • Temperature
  • 15 ºC to 30 ºC (59 ºF to 86 ºF)
  • Humidity
  • 40% to 70% RH (non-condensing)
  • Dimensions (W x D x H)
  • In use: 1,220 mm × 725 mm × 1,160 mm (48 1/32″ × 28 17/32″ × 45 21/32″)
    With cover and tray closed: 1,160 mm × 705 mm × 1,015 mm (45 21/32″ × 27 3/4″ × 39 15/16″)
  • Required Space (W x D x H)
    (Cover and feed trays opened.)
  • 1,220 mm × 1,240 mm × 1,160 mm (48 1/32″ × 48 13/16″ × 45 21/32″)
  • Weight
  • Approx. 175 kg (386 lb)
  • Operating Noise
  • Max. 66 dB (A) A4 long-edge feed (Simplex) at the maximum print speed
