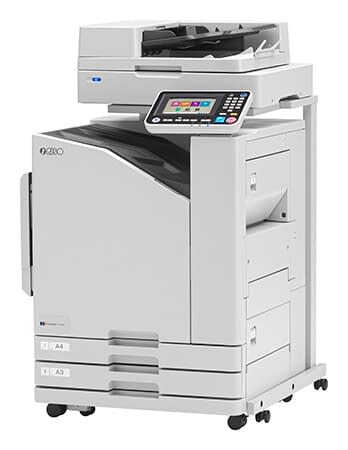

ComColor FT5430

Home / Shop / Riso / Inkjet Printers / ComColor FT5430

Ultra Fast, Full-Color Printing

  • Print Speed: 140 ppm
  • Print Size: A3
  • Full Color CMYK
  • 3 Feed Trays
  • Low Energy Consumption
  • Environmental Certification

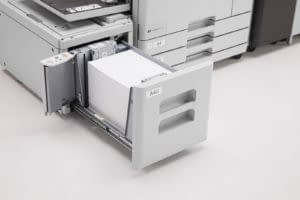

Additional Sheet Feeder

  • Paper is replenishable even during printing
  • Easy access and loading
  • Max. 4,000 sheets in combination with paper feed tray provided with FT main unit

Extra 2,000 Sheets

Benefits

  • Low Running Costs

    Proprietary ink and color profile development enable high quality at low running cost. Short printing time means reduced labor and electricity costs.

  • High Image Quality

    Piezo drop-on-demand print heads provide fast-drying oil-based ink for minimal bleeding and smearing. New, higher black density improves visibility with a resolution of 600dpi.

  • High Media Flexibility

    The FT5430 can accommodate lightweight to heavyweight paper, as well as envelopes. 46gsm-400gsm (when optional accessories attached).

  • Expanded Usability

    The optional PS kit supports a variety of operating systems, and PDF files can be printed directly from USB flash drives, while RISO Print-S application allows printing from smart devices. ComColor FT5430 offers reliable support for any work environment.

  • Energy-Saving Functions

    New features allow you to automatically power the machine on and off at specified times. Up to 10 sets of combinations of start or end time and day of the week can be registered. Users can also set when the printer enters Sleep Mode after the last print job, further decreasing power consumption. This mode keeps power consumption to a miniscule 4W, further enhancing savings on electricity bills. All ComColor machines are ENERGY STAR® certified, and boast many other energy-efficient innovations.

  • High Productivity

    With a print speed of 120 ppm, duplex scanning and a rich feature set, ComColor FT5430 brings a new level of productivity to any workplace. You'll also appreciate its modest footprint - the ideal choice where space is at a premium. Affordable on-demand, full-color printing ensures smooth operation to increase efficiency.

  • FORCEJET™ Technology

    Stable paper feeding ensures the reliable performance necessary for high-speed printing. Paper-feed speed is intelligently controlled, according to how much ink is emitted from the print head. Multiple sensors help ensure high levels of reliability. Instant-drying ink complements the high-speed, duplex printing capability. This specially developed, oil-based ink is also fade-resistant and water-resistant, and minimizes paper curling.

  • Useful Scanner Functions

    The optional Scanner HS7000 can save scanned data over the network to a PC, as an attachment to e-mail, or onto a hard disk of a networked RISO machine. Multi-page documents can be saved in PDF format as either separate files or combined into one file. Documents can be saved as PDF, TIFF, JPEG and PDF/A (suitable for long-term storage) formats.

  • Simple Operation

    An easy-to-view touch panel with instantly recognizable color icons makes printer operation simple for anyone. The tilt panel ensures excellent viewing at any angle up to 90 degrees, expanding installation flexibility. Scan preview windows show scanned images before saving data, ensuring less scan failures. For added convenience when printing and copying, frequently used functions can be saved as Favorites.

Specifications

Print Type Line-type inkjet system

Ink Type Oil-based pigment ink (Cyan, Magenta, Yellow, Black)

Print Resolution Standard: 300 dpi (main scanning direction) × 300 dpi (sub-scanning direction)
Fine: 300 dpi (main scanning direction) × 600 dpi (sub-scanning direction)

Number of Gray Levels For each CMYK color (11 gray levels)

Data Processing Resolution Standard: 300 dpi x 300 dpi
Fine: 600 dpi x 600 dpi
Line smoothing: 600 dpi × 600 dpi

PDL (Page Description language) RISORINC/C IV

Supported Protocols TCP/IP, HTTP, HTTPs (TLS), DHCP, FTP, LPR, IPP, SNMP (SNMP v1), Port 9100 (RAW port), IPv4, IPv6, IPSec (IKEv1)

Supported Operating Systems Microsoft®: Windows®, Windows Server®

Optional Operating Systems
(Optional PS Kit FG10 or ComColor Express RS1200C is required.) Mac: macOS
Linux (compatible with PPD only)

Network Interface Ethernet 1000BASE-T/100BASE-TX/10BASE-T×2 Channel

Memory Capacity 4GB

Hard Disk
(One gigabyte (GB) is calculated as 1 billion bytes.) Capacity: 500GB
Available Space: Approx. 430 GB

Operating System Linux

Printing Speeds

  • Warm-up Time
  • 2 min. 30 sec. or less (at room temperature of 23°C (73.4°F)
  • First Print Time
  • (Within 10 minutes after the last print job)
    5 sec. or less (A4 long-edge feed)
  • Continuous Print Speed
  • When using plain paper or recycled paper (85 gsm (23-lb bond), and density setting 3 (Standard) Chart used: Print measurement pattern [Color measurement sample 2 (JEITA standard pattern J6)]. The continuous print speed varies depending on the type of optional output equipment connected.
  • A4 and Letter long-edge feed
  • Simplex: 140 ppm
    Duplex: 70 sheets/minute (140 ppm)
  • A4
  • Simplex: 108 ppm
    Duplex: 54 sheets/minute (108 ppm)
  • B4 (JIS)
  • Simplex: 90 ppm
    Duplex: 42 sheets/minute (84 ppm)
  • A3
  • Simplex: 79 ppm
    Duplex: 39 sheets/minute (78 ppm)

Operating Environment

  • Power Source
  • AC 100-240 V, 10.0-5.0 A, 50-60 Hz
  • Power Consumption
  • Max. 1,000W
    Ready (Without printing and temperature adjustment operation): 95 W or less
    Sleep (When setting [(Power Consumption On sleep)] to [Low].): 2 W or less
    Stand-by: 0.4 W or less
  • Operating Noise
  • 65 dB (A) or less at printing
  • Operating Environment
  • Temperature: 15ºC to 30ºC
    Humidity: 40% to 70% RH (non-condensing)
  • Dimensions (W x D x H)
  • In use: 1,030 mm × 735 mm × 1,115 mm
    With cover and tray closed: 775 mm × 710 mm × 970 mm
  • Dimensions When Operating (W x D x H)
  • With the front cover open and the operation panel in the upright position:
    1,185 mm × 1,225 mm × 1,115 mm
  • Weight
  • Approx. 137 kg
  • Accessories

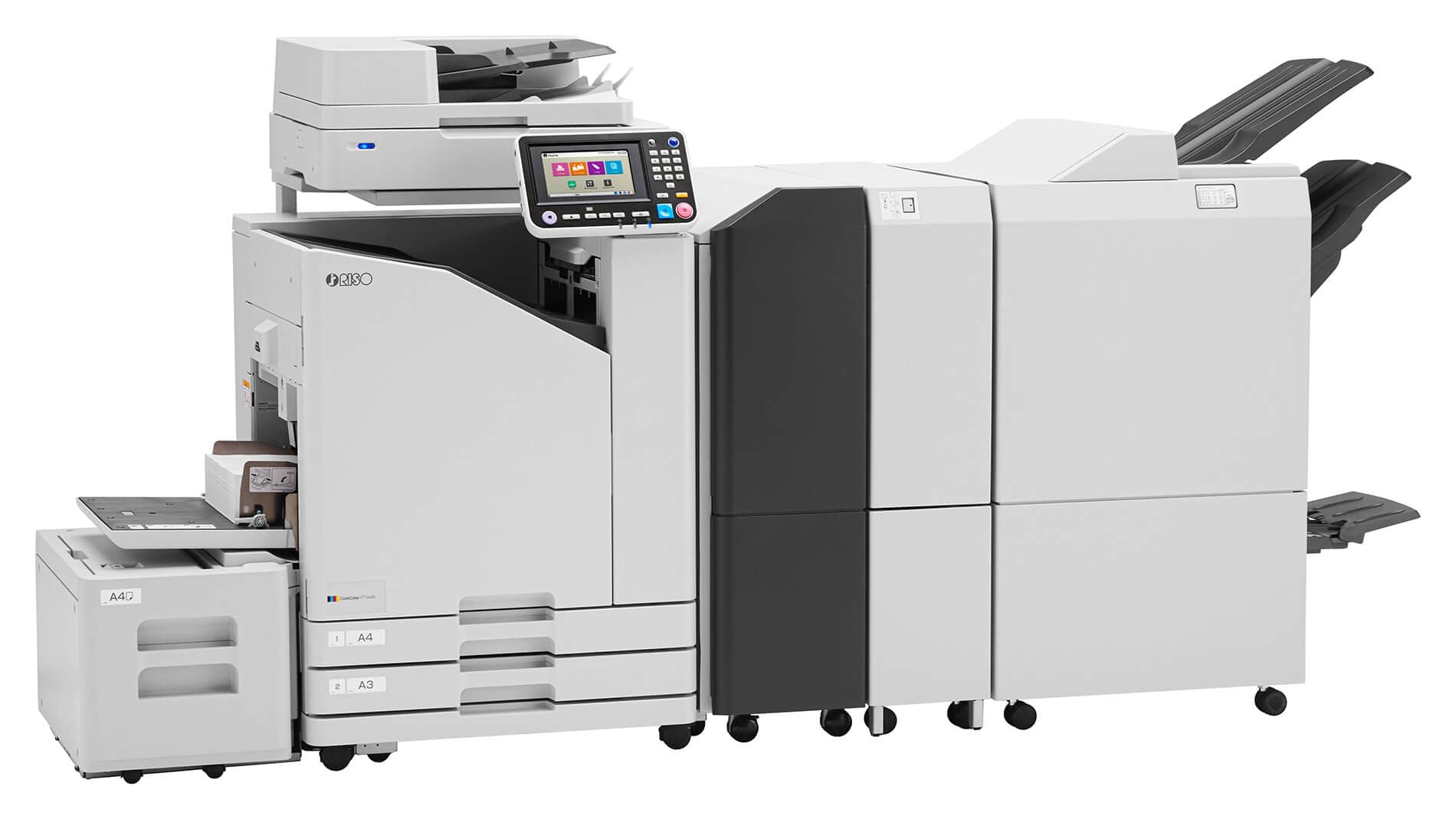

  • Scanner HS7000, Additional 2000 Sheet Feeder FG20, Face Down Finisher F10, Multifunction Finisher FG20/Folder Unit FG20, Auto-Control Stacking Tray II, Wide Stacking Tray, ComColorExpress RS1200C, PS Kit FG10, IC Card Authentication Kit II, Envelope Feed Kit, Card Feed Kit
