The AS-850 is a high-volume in-line monochrome printer designed to print text and barcodes on materials such as envelopes and postcards. The printer has a user-friendly touch screen, is easy to set up and features four print qualities from 150 to 600 dpi.

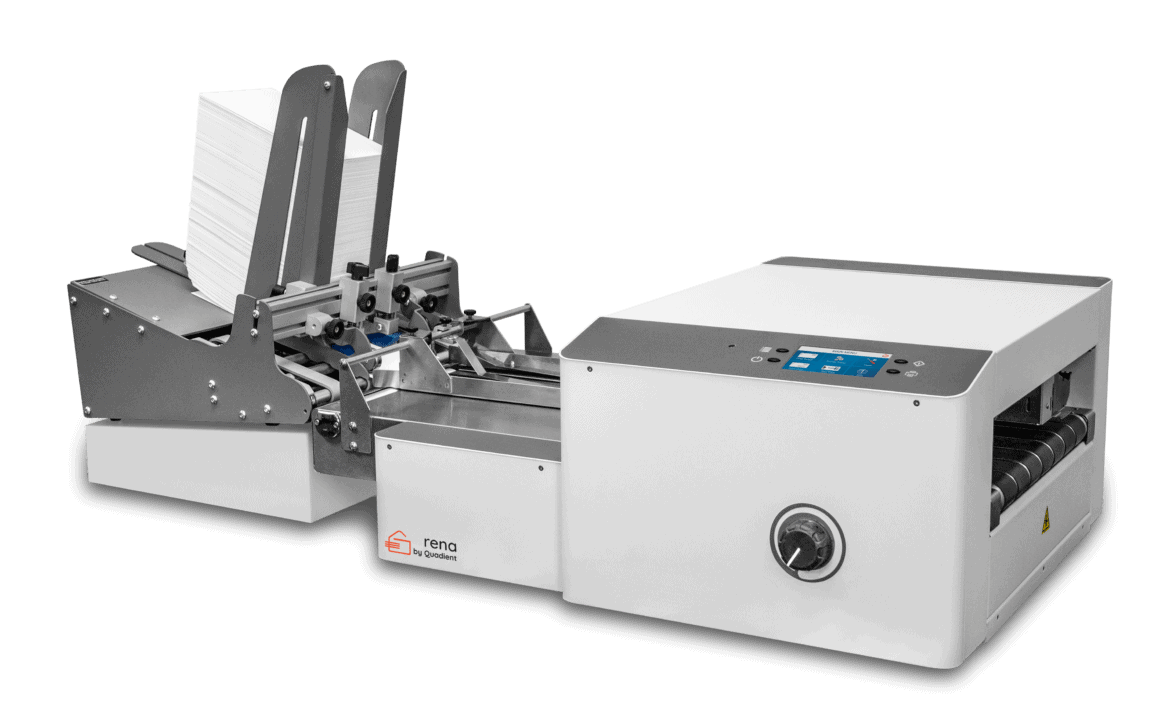

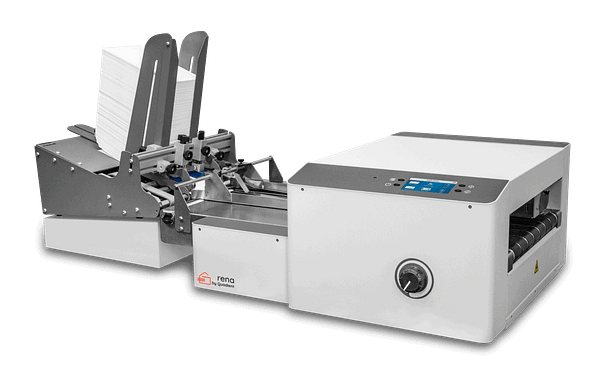

Available as a standalone unit or with the EASYFeed 140 friction feeder (as shown above)
Address with USPS IMB Barcode, Return Address, and Permit Box
With a total print height of 4″, the AS-850 can print the address, USPS IMB barcode, return address, and permit on pre-sorted mail pieces in a single pass through the machine.
Address with USPS IMB Barcode
With a variety of ink formulas to choose from, the AS-850 can print on your glossy and aqueous coated postcards and substrates.
Folded Self Mailer: Addressing a Folded Self Mailer
Tabs can be applied with the T-750 tabber.
Booklet: Addressing a Tabbed Booklet
Tabs can be applied with the T-650 tabber.
Marketing Pieces that Get Opened
Marketing pieces don’t have to look like marketing pieces. Run the AS-850 inline with the T-750 tabber/stamp affixer to apply the presort postage stamp and print the cancellation marks, return address, recipient’s address, and USPS IMB barcode all in a single pass at speeds of up to 20,000 pieces per hour.
Printing on UV coatings and Plastics
With our EASYInk UltraUV and EASYInk UltraSolv inks, drying on UV coated and non-porous media is no problem.
Invisible Security Printing
With our EASYInk Invisible formula of ink, print is only visible under UV light.
Print Area: Print Cartridge Layout
Eight HP45A style cartridges in a 2-4-2 configuration gives a total of 4″ of print while providing the ability to print on three separate areas of the piece.
Cartridge Layout: AS-850 Print Cartridge Layout
Eight HP45A style cartridges in a 2-4-2 layout provides a total of 4″ of print.
Application Finder
Do you have a specific application in mind and need help matching products to your application? Check out the Application Finder for more information.
Print Technology Thermal Inkjet, Eight HP 45 A-Style High Capacity Cartridges
#10 Envelopes 26,000 per hour
Postcards 34,000 per hour
High Quality 600 dpi | 600 x 600 dpi
Letter Quality 300 dpi | 600 x 300 dpi
Standard Quality 200 dpi | 600 x 200 dpi
Hi-Speed Quality 150 dpi | 600 x 150 dpi
Image Area 4″ x 50″
Processor 600 Mhz Dual-core ARM Cortex-A9 MPCore
Memory 16 GB
Fonts All TrueType fonts available on PC
Print Orientation Normal and Reverse
Counters Batch, Job, & Lifetime Counters
Ink Monitor Visible on Display: Per cartridge remembered by printer when removed/installed
Prints Allows printing of graphics, logos, and barcodes
Material Size Minimum (W x L): 3″ x 5″
Maximum (W x L): 15″ x 50″
AS-850S System Feeder Max: 14″ x 17″ and 3/8″ thick
Material Thickness Up to 1/2″ (12.7 mm)
Feeder Capacity 750 #10 Envelopes with Optional EASYFeed 140
Software WindowsTM Printer Drivers for Windows 7/8/8.1/10
PC Interface USB 3.0, Ethernet, WiFi
Diagnostics Resident in firmware
Firmware Update Via USB or replaceable MicroSD
Duty Cycle 75 million addresses total or 1.25 million per month over a 5-year life cycle
Dimensions 12” H x 25” W x 34” D
Weight 96 lbs
Electrical 115VAC or 240VAC 50/60 Hz
Options Ink Supplies, Bulk Mailer Software, FlexMail, Conveyor/Stacker, Infrared Dryer, EASYFeed 140
