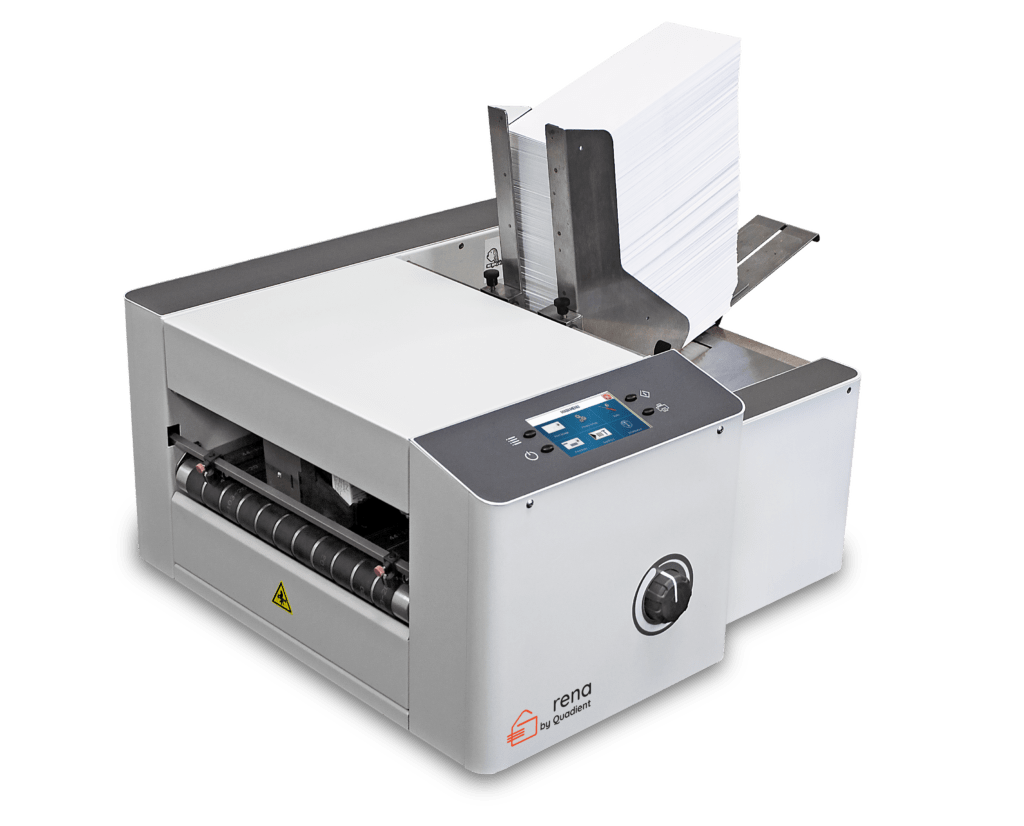

AS-650 Monochrome Inkjet Printer

  • Print Area
    3″ of print height
  • Speed
    Up to 34,000 postcards/hr
  • Connectivity
    WiFi, USB 3.0, and Ethernet

The AS-650 is a mid-level monochrome printer designed to print text and barcodes on materials such as envelopes and postcards. The printer has a user-friendly touch screen, is easy to set up and features four print qualities from 150 to 600 dpi.

Features

  • Envelopes

    Address with USPS IMB Barcode, Return Address, and Permit Box

    With a total print height of 3″, the AS-650 can print the address, USPS IMB barcode, return address, and permit on pre-sorted mail pieces in a single pass through the machine.

  • Postcards

    Address with USPS IMB Barcode

    With a variety of ink formulas to choose from, the AS-650 can print on your glossy and aqueous coated postcards and substrates.

  • Tabbed Media

    Folded Self Mailer: Addressing a Folded Self Mailer

    Tabs can be applied with the T-750 tabber.

    Booklet: Addressing a Tabbed Booklet

    Tabs can be applied with the T-650 tabber.

  • Personalization

    Address using a handwritten font

    Give mail pieces a personal touch by using a handwritten font and blue ink.

  • UV Coated Stock

    Printing on UV coatings and Plastics

    With our EASYInk UltraUV and EASYInk UltraSolv inks, drying on UV coated and non-porous media is no problem.

  • Security

    Invisible Security Printing

    With our EASYInk Invisible formula of ink, print is only visible under UV light.

  • Cartridge Layout

    Print Cartridge Layout

    Six HP45A style cartridges in two groups of three gives the ability to print on two separate areas of the piece.

  • Application Finder

    Application Finder

    Do you have a specific application in mind and need help matching products to your application? Check out the Application Finder for more information.

Specifications

Print Technology Thermal Inkjet, Six HP 45 A-Style High Capacity Cartridges

Address Speed

#10 Envelopes 26,000 per hour

Postcards 34,000 per hour

Print Quality

High Quality 600 dpi | 600 x 600 dpi
Letter Quality 300 dpi | 600 x 300 dpi
Standard Quality 200 dpi | 600 x 200 dpi
Hi-Speed Quality 150 dpi | 600 x 150 dpi

Image Area 3″ x 17″

Processor 600 Mhz Dual-core ARM Cortex-A9 MPCore

Memory 16 GB

Fonts All TrueType fonts available on PC

Print Orientation Normal and Reverse

Counters Batch, Job, & Lifetime Counters

Ink Monitor Visible on Display: Per cartridge remembered by printer when removed/installed

Prints Allows printing of graphics, logos, and barcodes

Material Size Minimum (W x L): 3″ x 5″
Maximum (W x L): 13.5″ x 17″

Material Thickness Up to 3/8″ (9.5 mm)

Feeder Capacity 750 #10 Envelopes

Software WindowsTM Printer Drivers for Windows 7/8/8.1/10

PC Interface USB 3.0, Ethernet, WiFi

Diagnostics Resident in firmware

Firmware Update Via USB or replaceable MicroSD

Duty Cycle 60 million addresses total or 1,000,000 per month over a 5-year life cycle

Dimensions 21” H x 23” W x 29” D

Weight 80 lbs

Electrical 115VAC or 240VAC 50/60 Hz

Options Ink Supplies, Bulk Mailer Software, FlexMail, Conveyor/Stacker, Infrared Dryer
