600i Pro Digital Booklet System

Home / Shop / Duplo / Sheet Feeding & Bookletmaking Systems / 600i Pro Digital Booklet System

Precision Bookletmaking for Production Environments

  • Turns pre-collated sets into finished booklets

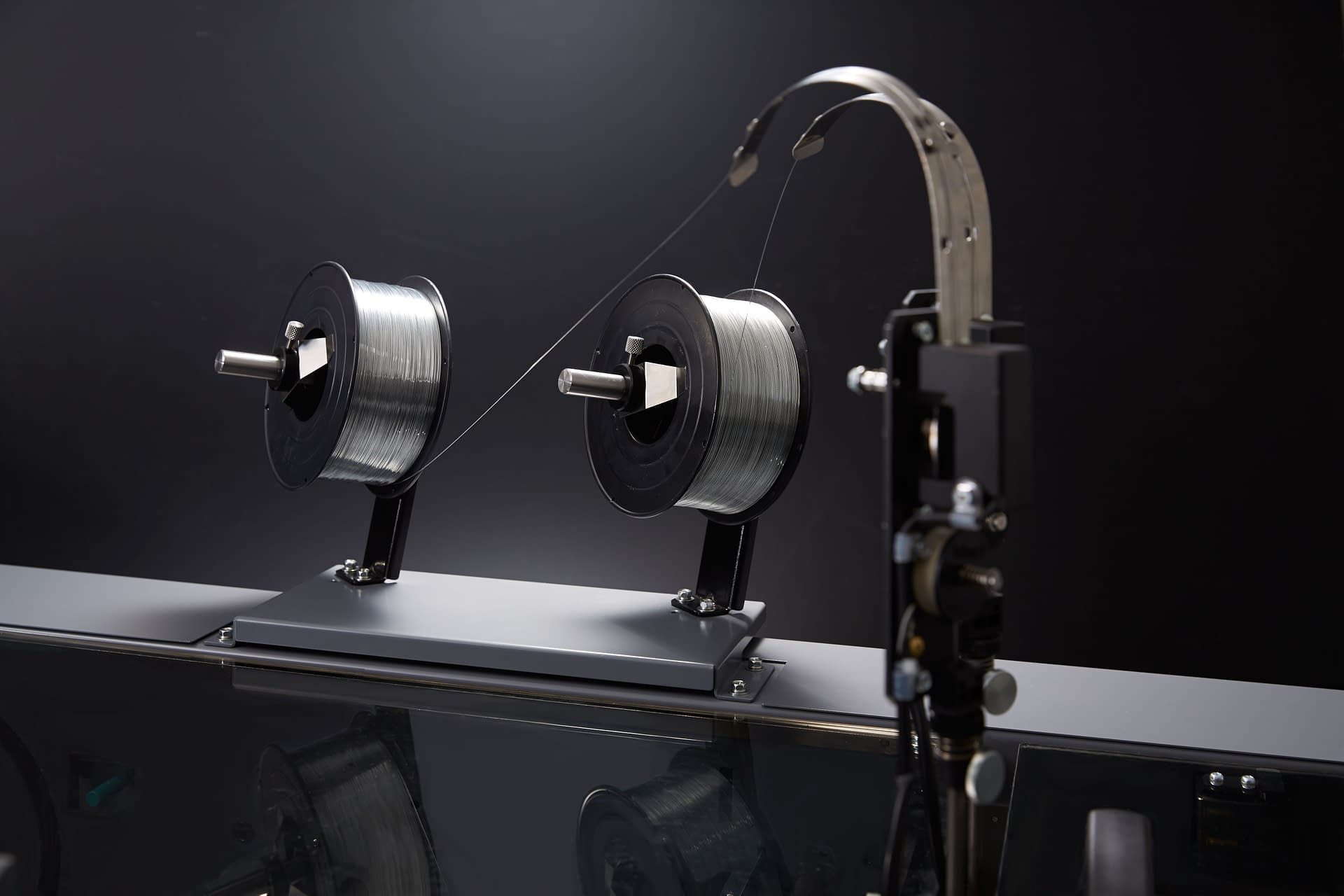

  • Performs saddle, side, and corner-stitching
  • Processes CD-size to letter landscape booklets

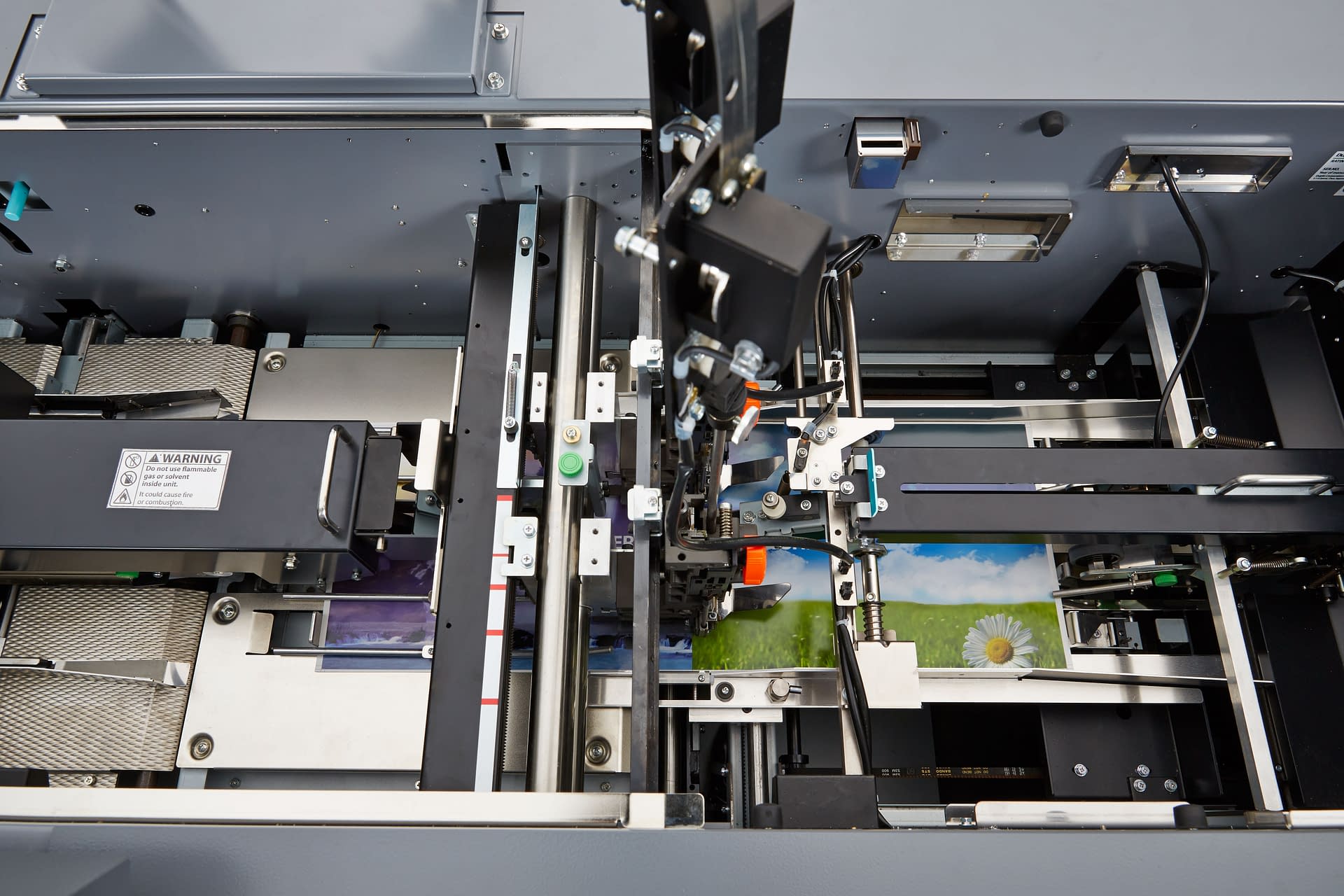

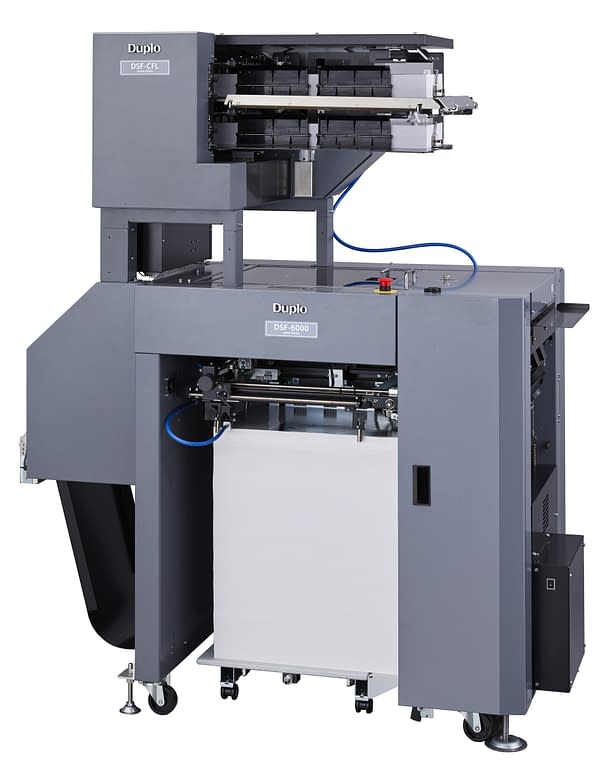

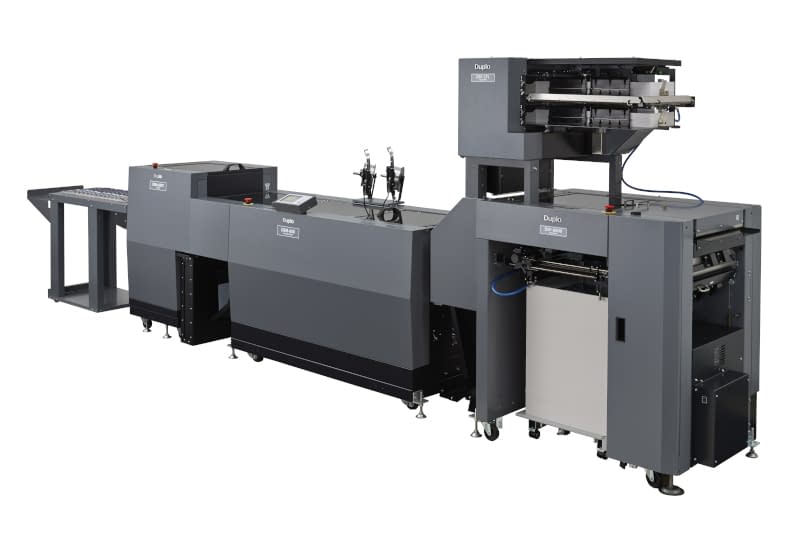

With the fully automated 600i Pro Digital Booklet System, the DBM-600/T Bookletmaker and Trimmer integrate the stitcher, folder, and face trimmer into one. The DSF-6000 Sheet Feeder, with three-side air separation and static eliminator, handles the output printed from your digital presses and offers a barcode reader to process variable data with integrity. No manual set ups. With a speed of up to 4,800 booklets per hour, the 600i Pro delivers a wide variety of applications, from catalogs to corporate reports, on demand.

Features

  • Automated job set up and changeovers
  • 24″ feed capacity for longer runs

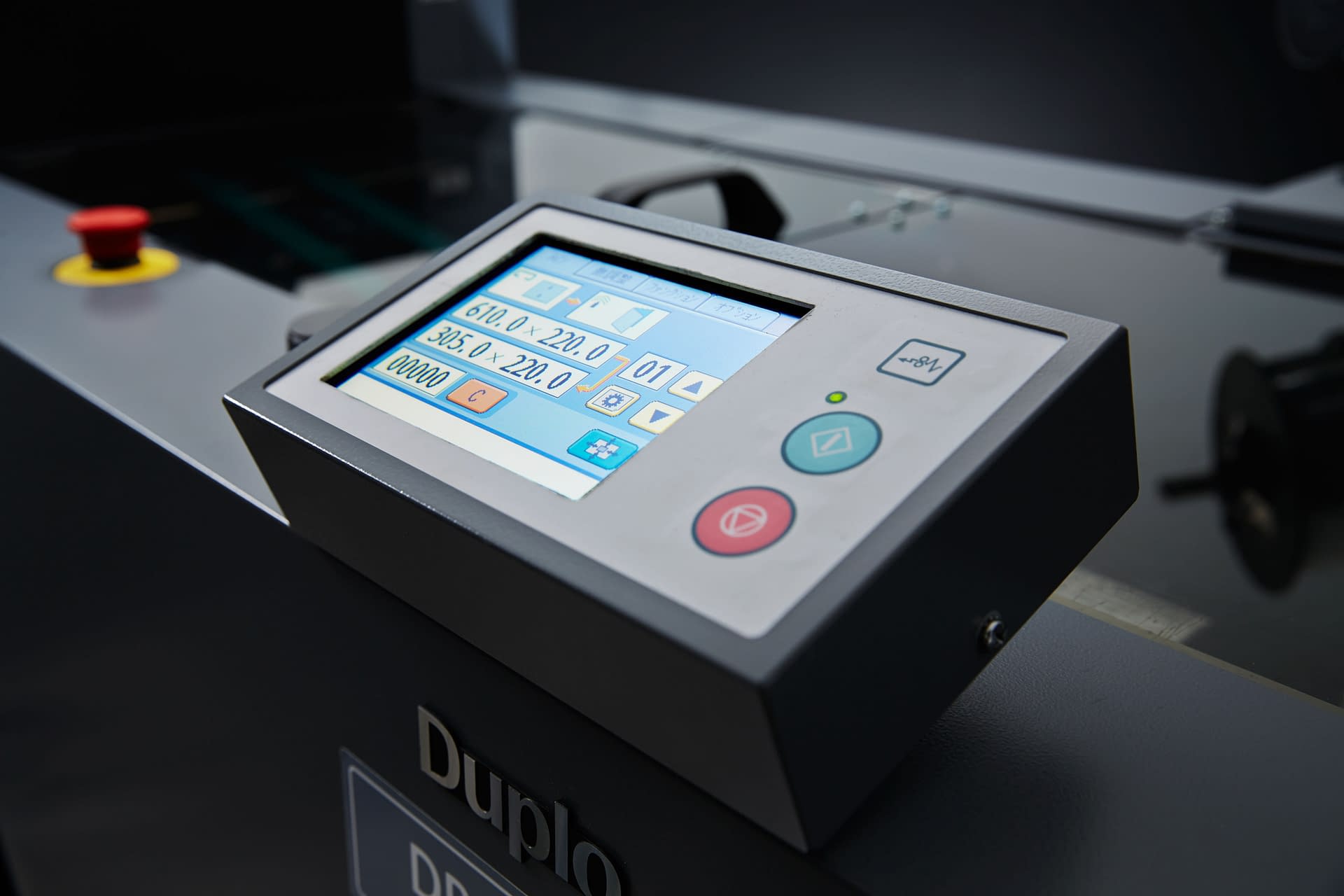

  • PC Controller software to manage system from a PC
  • In-line creasing/slitting option for full-bleed finishing



Key Applications

  • Promotional calendars
  • Letter landscape catalogs
  • CD-size booklets
  • Half letter-size brochures
  • Marketing collateral with spot UV covers

Specifications

SPEED Up to 4800 booklets per hour

FEEDER CAPACITY 24.02″

INPUT PAPER SIZE 4.72″ x 8.27″ to 14.01″ x 24.01″

PAPER WEIGHT Fine quality and coated 64-300 gsm

NUMBER OF SHEETS Up to 30 sheets (saddle stitch), up to 50 sheets (side or corner stitch)

OPTIONS Anti-static bar kit, Barcode kit for DSF-6000 or DSF-CFL, DBM-600 Air Kit, DBM-HSC High Speed Creaser, DBM-LSW Extended Conveyor, DBM-SSW Short Stacker, DSF-CFL Cover Feeder
