Precision Bookletmaking for Production Environments

  • Turns pre-collated sets into finished booklets

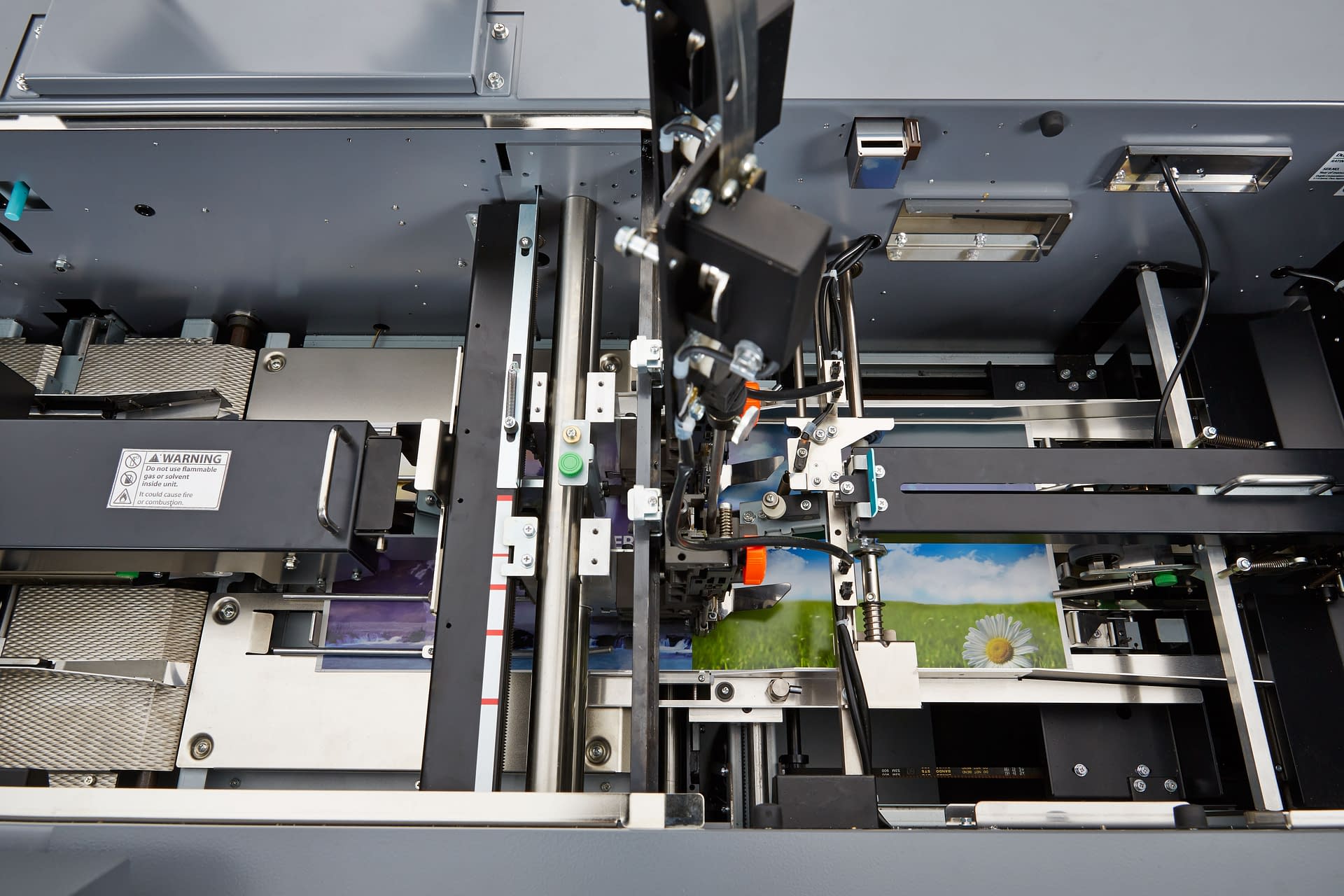

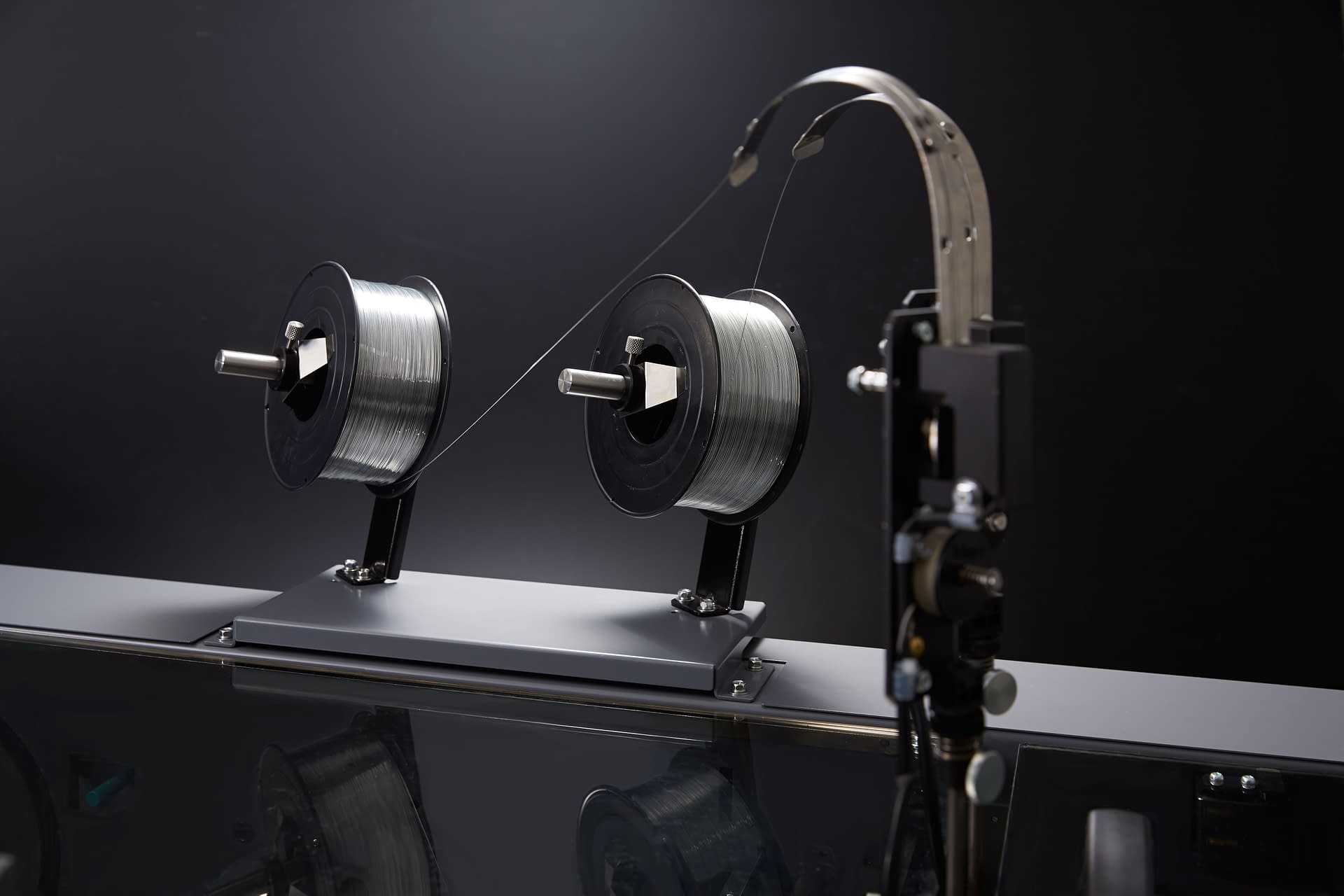

  • Performs saddle, side, and corner-stitching
  • Processes CD-size to letter landscape booklets

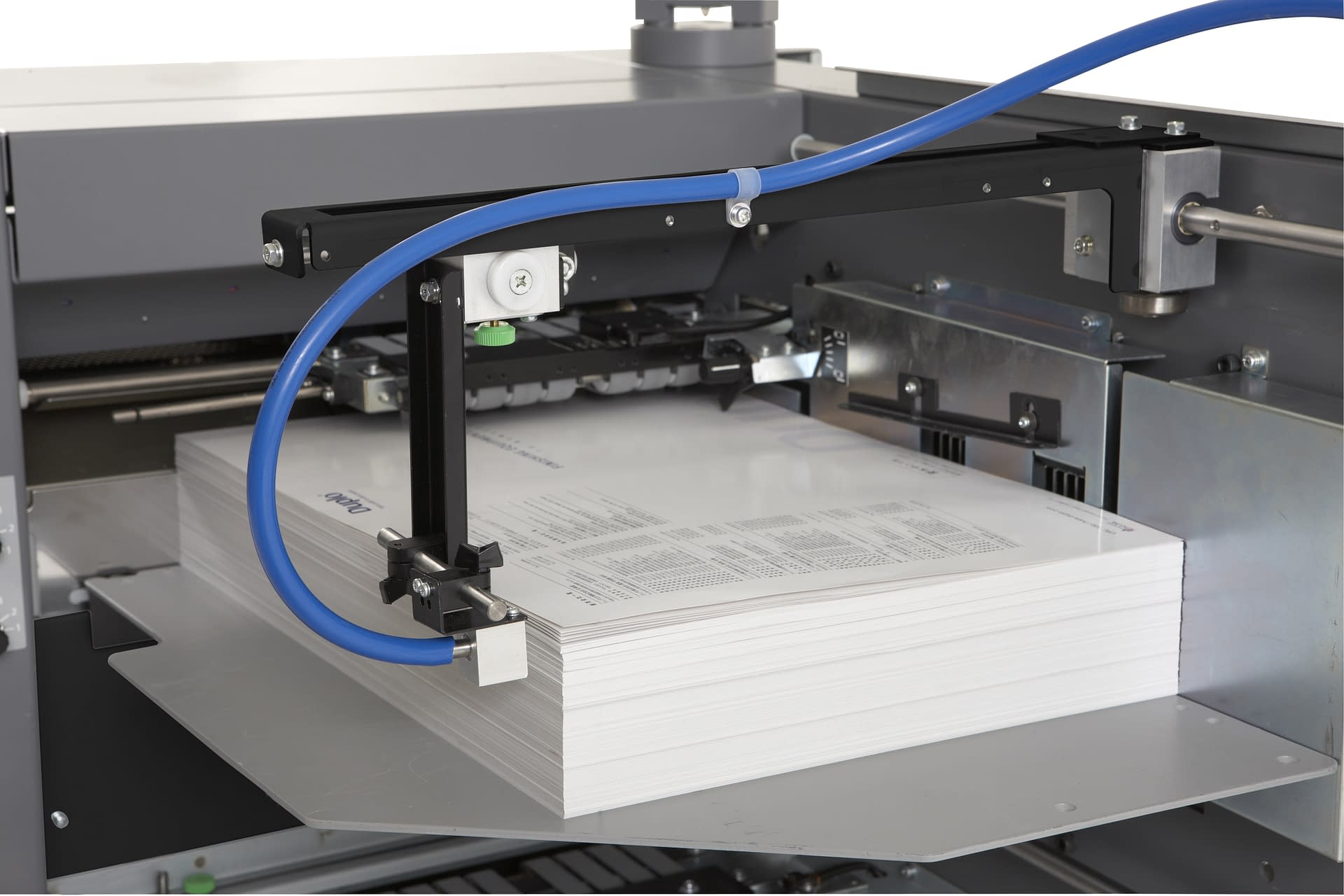

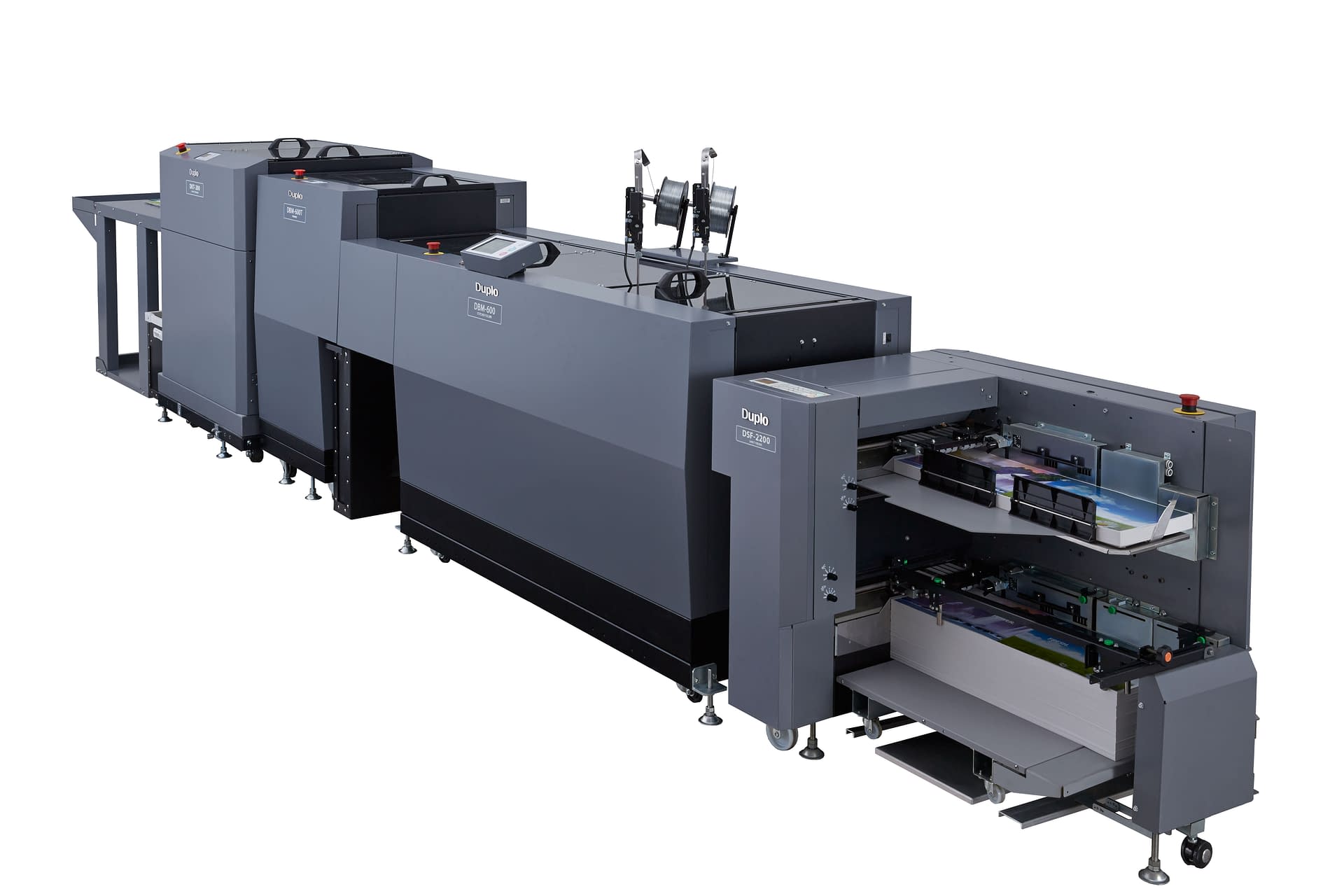

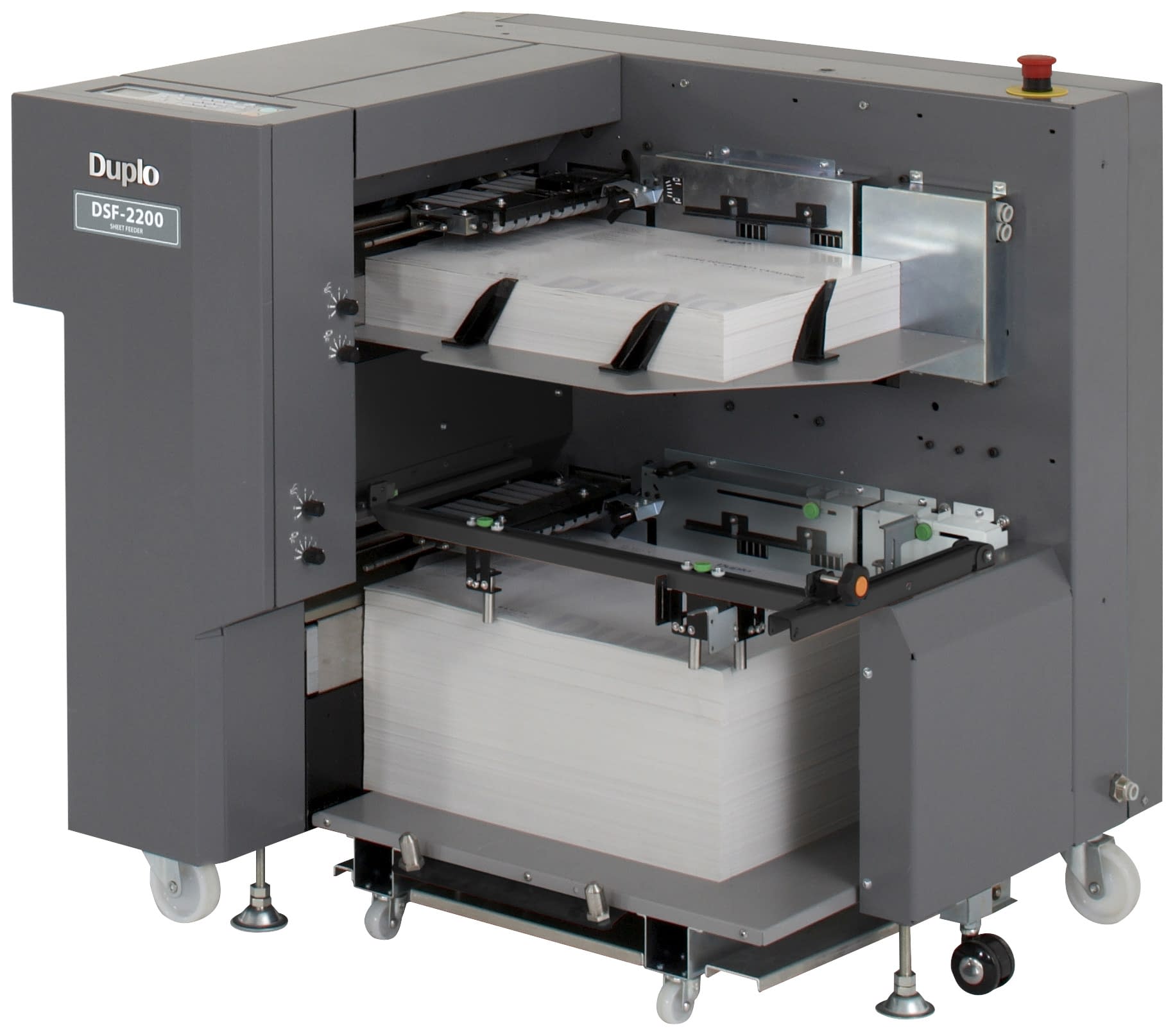

With the fully automated 600i Digital Booklet System, the DBM-600/T Bookletmaker and Trimmer integrate the stitcher, folder, and face trimmer into one. The DSF-2200 Sheet Feeder, with front/side air separation and an anti-static device, handles the output printed from your digital presses and offers a barcode reader option to process variable data with integrity. No manual set ups. With a speed of up to 3,272 booklets per hour, the 600i Digital Booklet System delivers a wide variety of applications, from catalogs to corporate reports, on demand.

Features

  • Automated job set up and changeovers
  • Two air suction bins with built-in end mark reader
  • PC Controller software to manage system from a PC
  • In-line creasing/slitting option for full-bleed finishing

Key Applications

  • Promotional calendars
  • Letter landscape catalogs
  • CD-size booklets
  • Half letter-size brochures
  • Marketing collateral with spot UV covers

Specifications

SPEED Up to 3272 booklets per hour

FEEDER CAPACITY Tray A 2.56″, Tray B 7.87″

INPUT PAPER SIZE 4.72″ x 8.27″ to 14.01″ x 24.01″

PAPER WEIGHT Art coated 79-300 gsm, Fine quality 52.3-300 gsm

NUMBER OF SHEETS Up to 30 sheets (saddle stitch), up to 50 sheets (side or corner stitch)

OPTIONS 1D and 2D barcode reader, Anti-static bar kit, Barcode kit, DBM-600 Air Kit, DBM-HSC High Speed Creaser, DBM-LSW Extended Conveyor, DBM-SSW Short Stacker, Pre-loading kit
