Precision Bookletmaking for Production Environments

  • Turns flat sheets into finished booklets
  • Performs saddle, side, and corner-stitching
  • Processes CD-size to letter landscape booklets

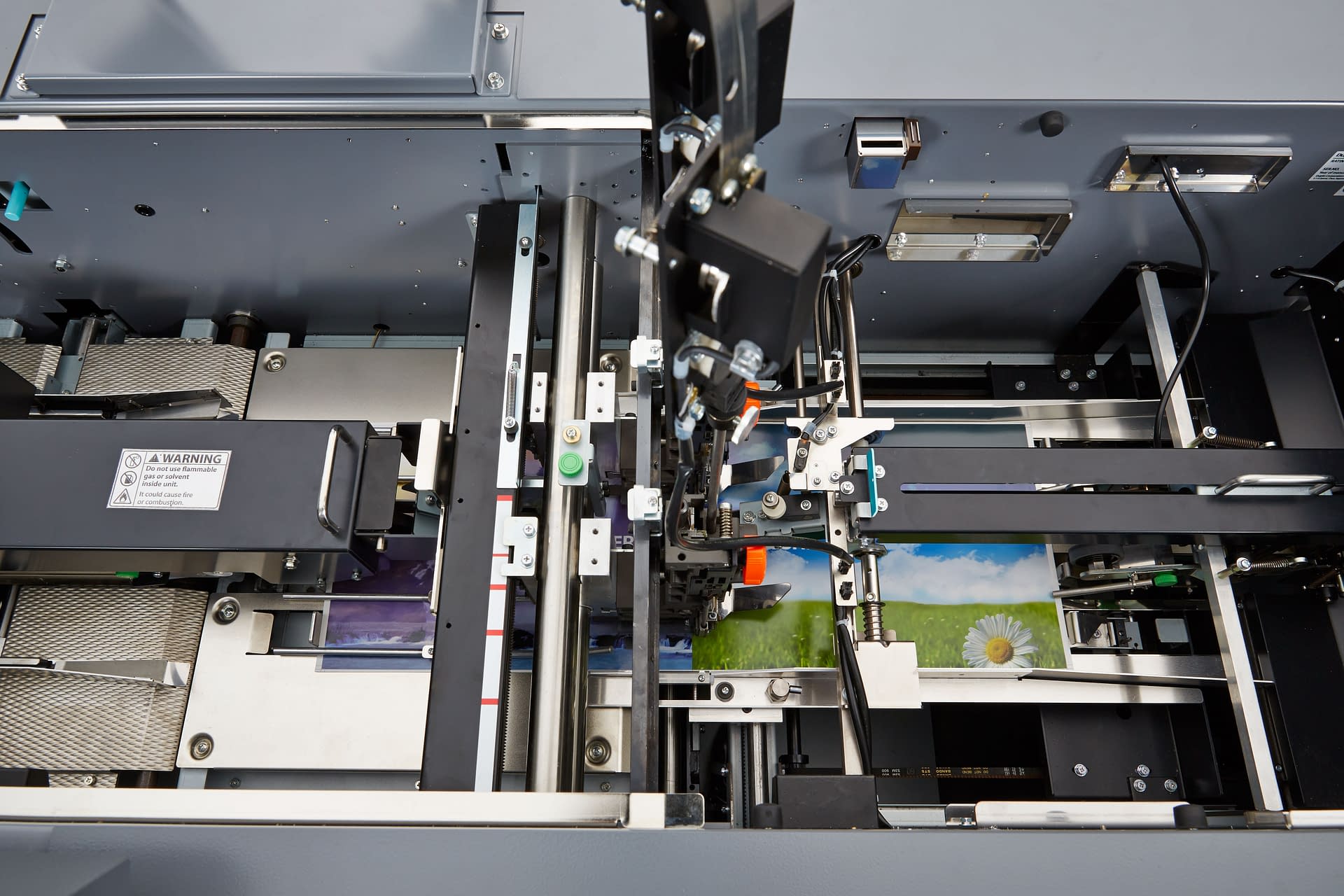

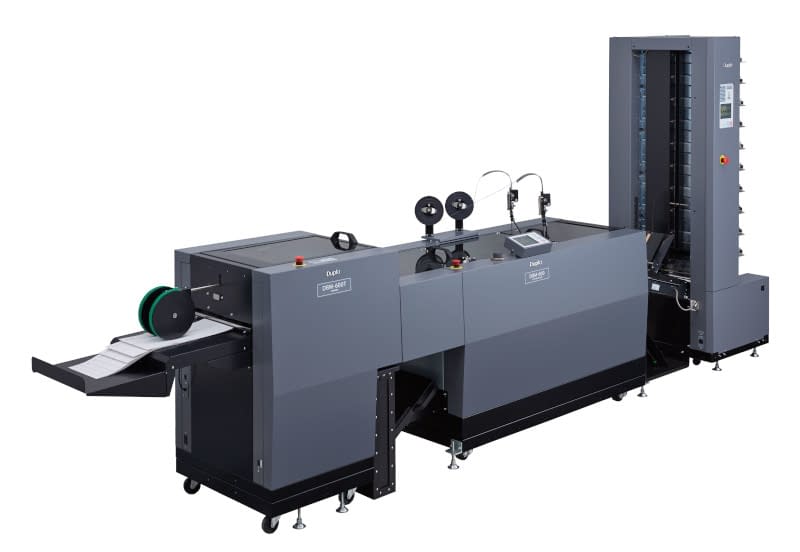

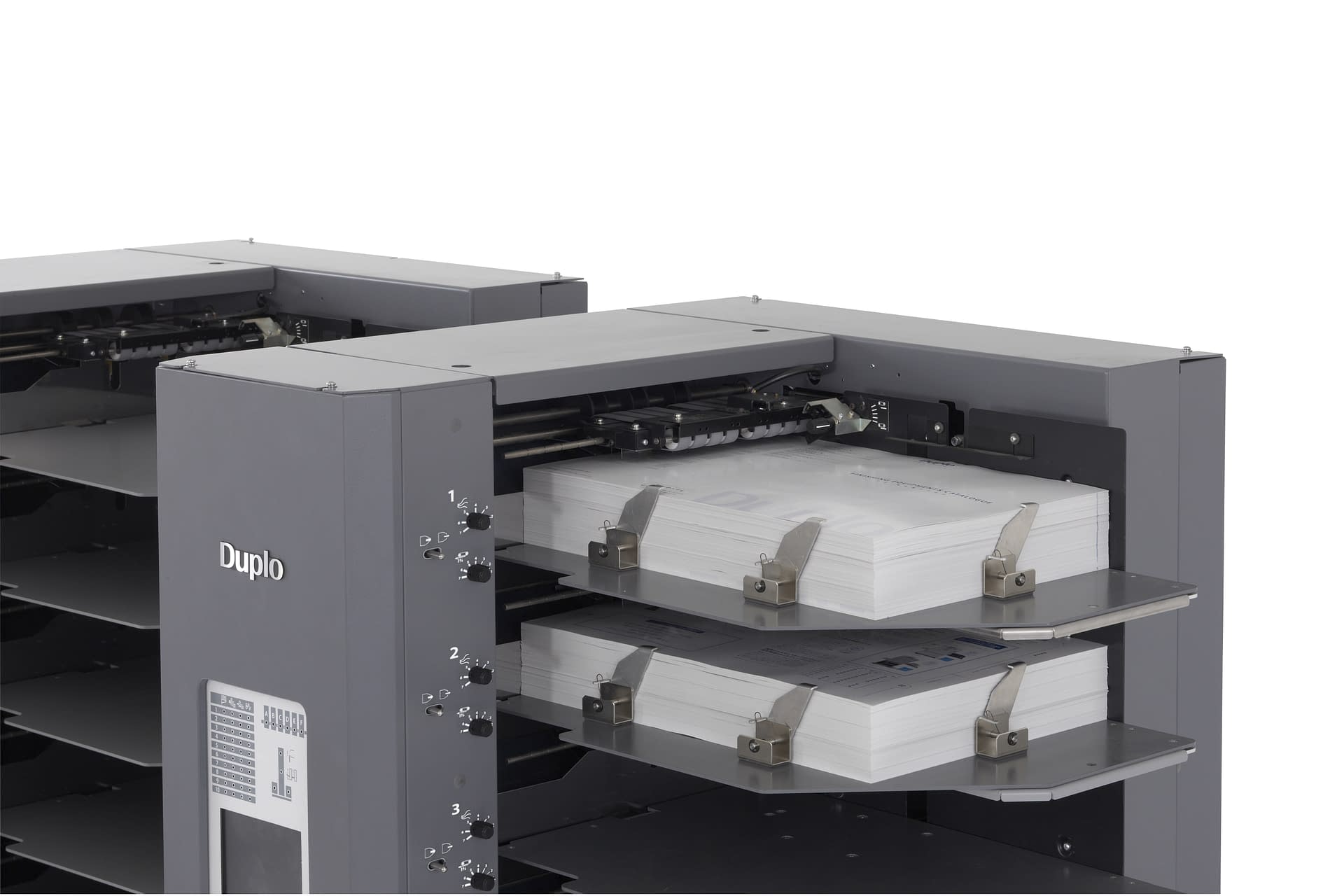

With the fully automated 600i Booklet System, the DBM-600/T Bookletmaker and Trimmer integrate the stitcher, folder, and face trimmer into an efficient system – eliminating the task of setting and folding signatures separately. The DSC-10/60i Suction Collator offers the flexibility to feed output from multiple presses, both offset and digital. Cut job costs by removing manual set ups and finish jobs in faster turnarounds. With a speed of up to 5,200 booklets per hour, the 600i Booklet System delivers a wide range of applications, from catalogs to collated work, on demand.


  • Automated job set up and changeovers
  • 10-bin feeding per tower with dual fan technology
  • Custom feed jobs via Intelligent Multi-Bin Feed
  • Two-up applications with two knife trimmer and 4-stitch head option


Key Applications

  • Promotional calendars
  • Letter landscape catalogs
  • CD-size booklets
  • Half letter-size brochures
  • Marketing collateral with spot UV covers


SPEED Up to 5200 booklets per hour

MAXIMUM NUMBER OF BINS 60 (Six DSC-10/60i towers)

INPUT PAPER SIZE 4.72″ x 8.27″ to 14.01″ x 24.01″

PAPER WEIGHT Art coated paper 79 – 157gsm, Cover 52-300 gsm, Cover 79-300 gsm, Fine quality paper 52 – 157gsm

NUMBER OF SHEETS Up to 30 sheets (saddle stitch), up to 50 sheets (side or corner stitch)

OPTIONS 4-stitch head kit, DBM-400STR Deep Pile Stacker, DCR-ST Cross Stacker, DKTS-200 Two Knife Trimmer, Envelope kit, Ultrasonic sensor kit
