350i Digital Booklet System

Home / Shop / Duplo / Sheet Feeding & Bookletmaking Systems / 350i Digital Booklet System

Precision Bookletmaking for Shorter Runs

  • Turns pre-collated sets into finished booklets
  • Performs saddle, side, and corner stapling
  • Processes CD to letter-size booklets

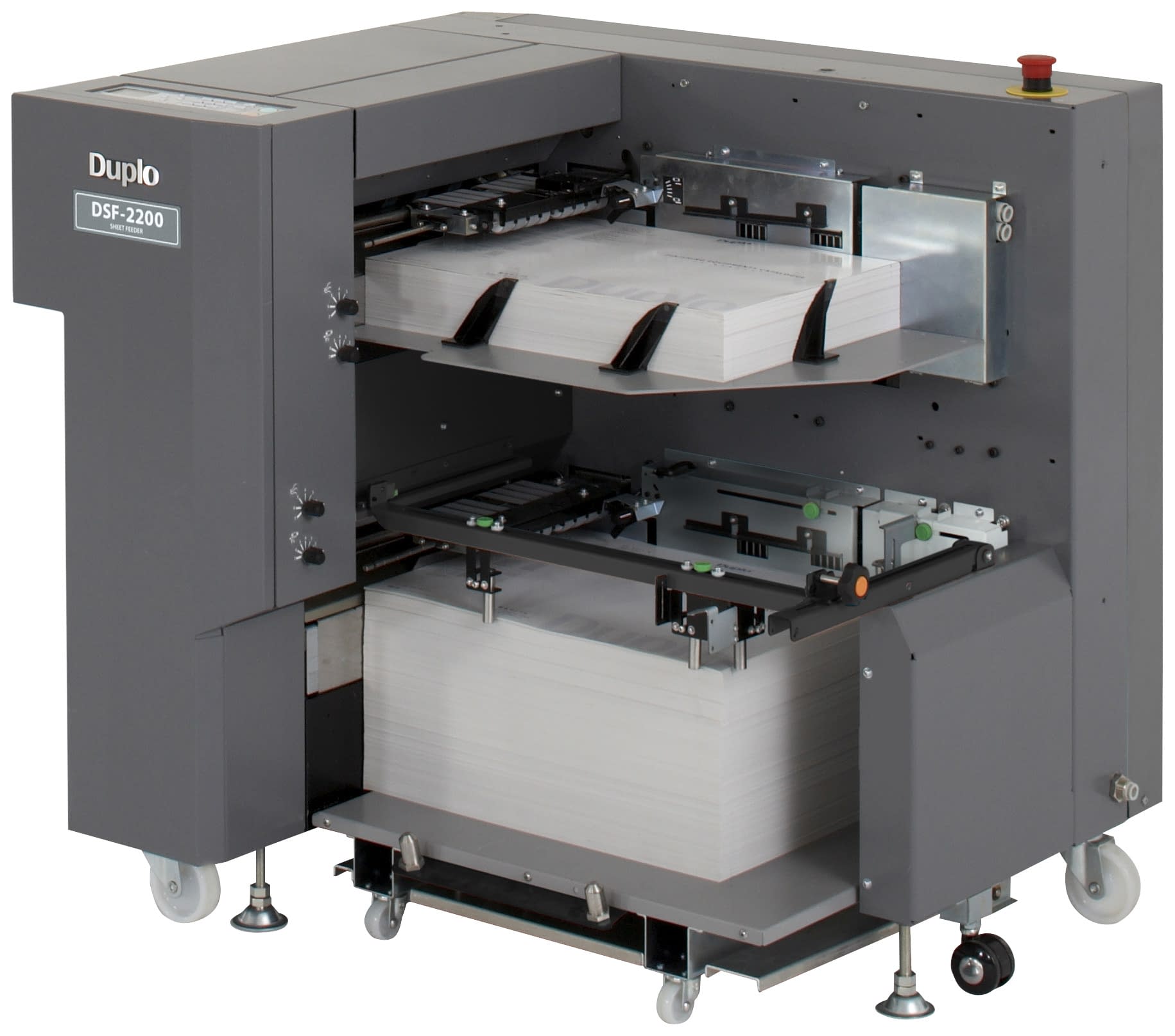

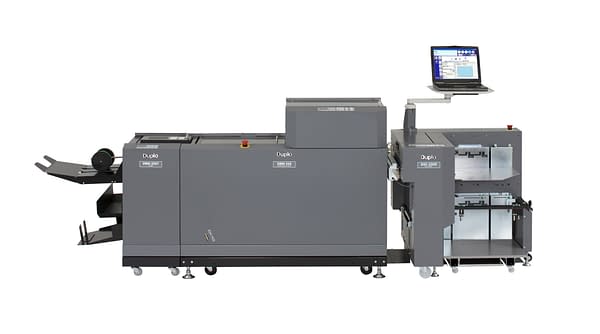

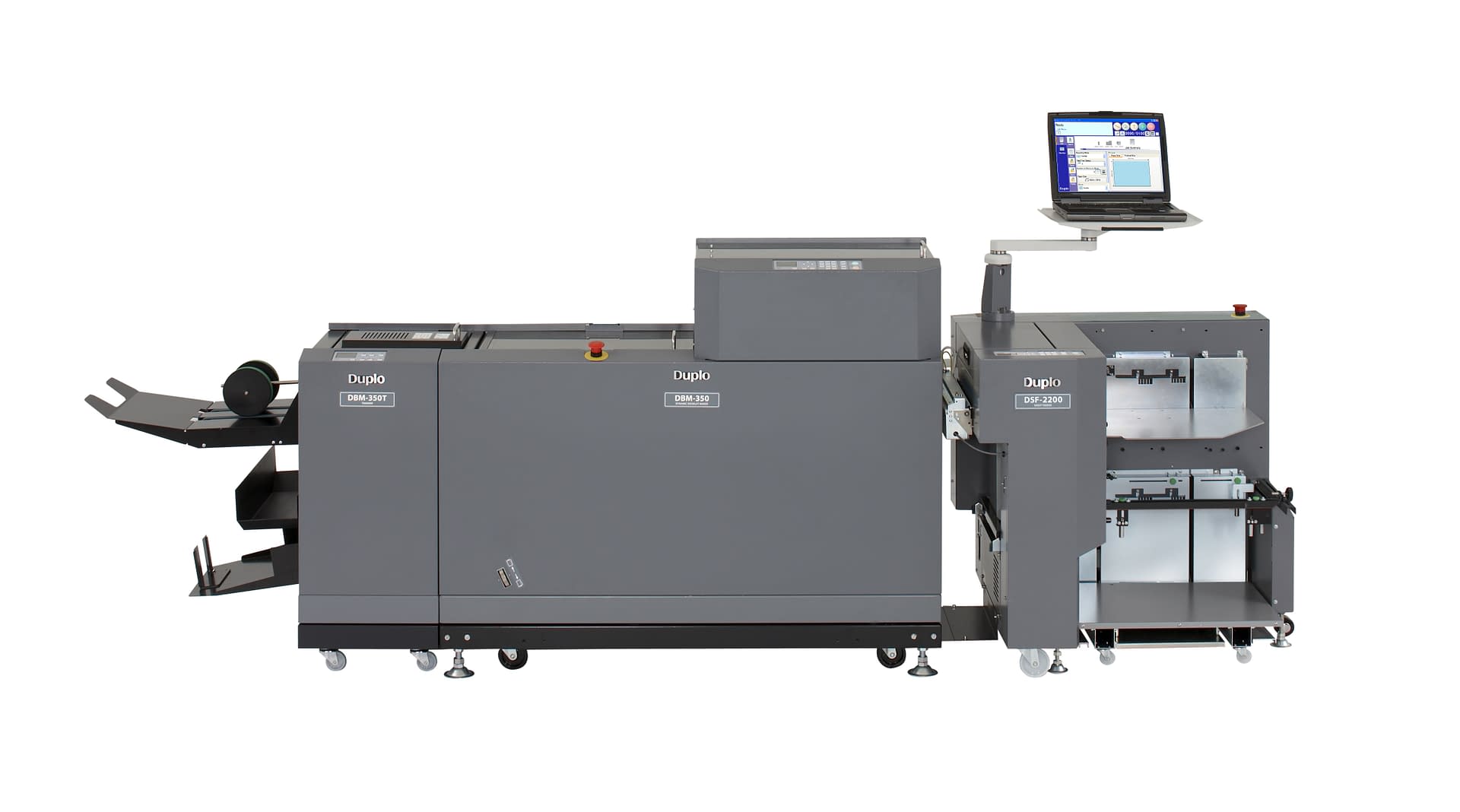

With the fully automated 350i Digital Booklet System, the DBM-350/T Bookletmaker and Trimmer integrate the stitcher, folder, and face trimmer into one. The DSF-2200 Sheet Feeder, with front/side air separation and an anti-static device, handles the output printed from your digital presses and offers a barcode reader option to process variable data with integrity. No manual set ups. Add the DSS-350 Square Spine module to give your booklets a lay flat finish. With a speed of up to 3,000 booklets per hour, the 350i Digital Booklet System delivers a wide variety of applications, from catalogs to corporate reports, on demand.

Features

  • Automated job set up and changeovers

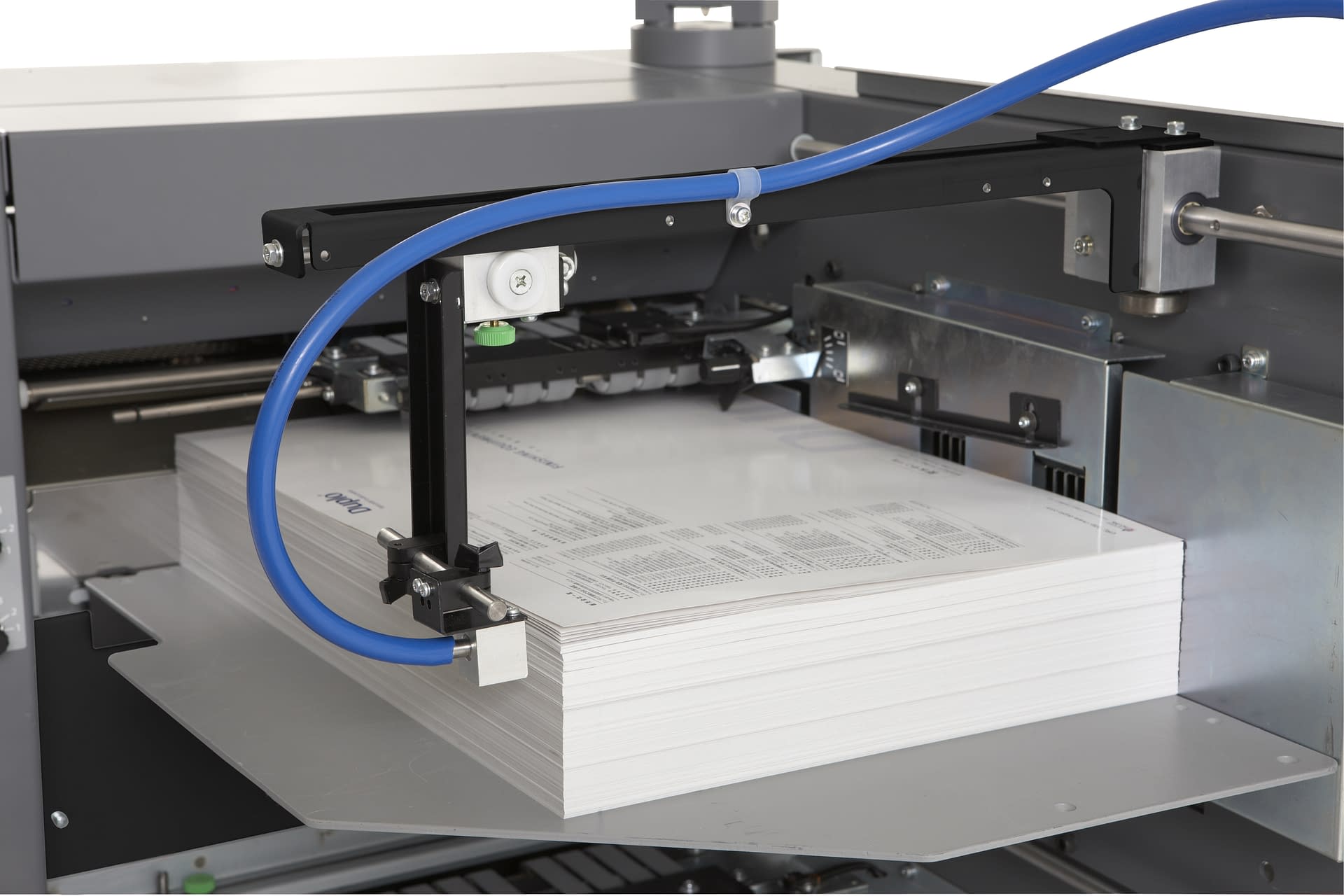

  • Two air suction bins with built-in end mark reader
  • PC Controller software to manage system from a PC
  • Small booklet and side/corner stitch kit for additional finishing



Key Applications

  • Manuals
  • Newsletters
  • CD-size booklets
  • Half letter-size brochures
  • Marketing collateral with spot UV covers

Specifications

SPEED Up to 3000 booklets per hour

FEEDER CAPACITY Tray A 2.56″, Tray B 7.87″

INPUT PAPER SIZE 5.82″ x 8.27″ to 12.60″ x 18.11″

PAPER WEIGHT Art coated 79-300 gsm, Fine quality 52.3-300 gsm

NUMBER OF SHEETS Up to 20 sheets

OPTIONS 1D and 2D barcode reader, DSS-350 Square Spine module, Pre-loading kit, Side/corner stitch kit, Small booklet kit
