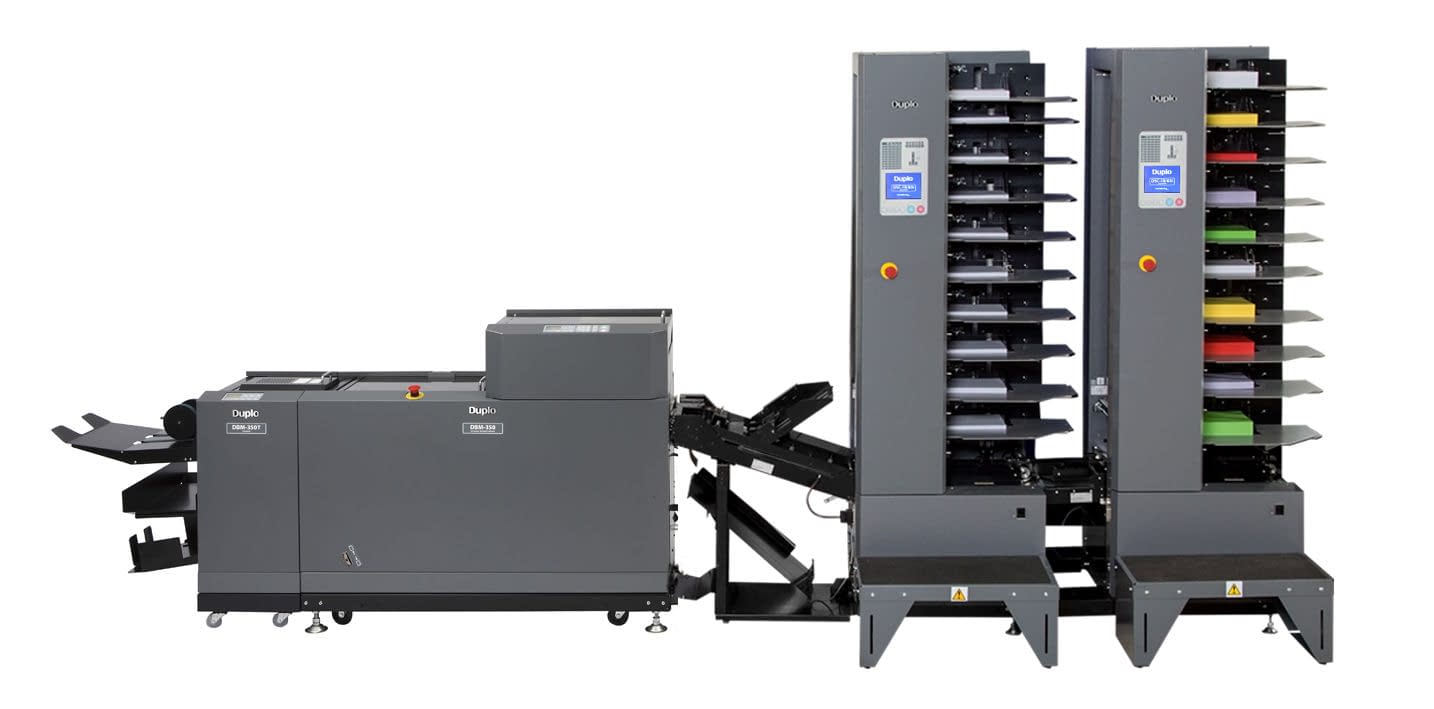

350 Booklet System

Precision Bookletmaking for Mid-Range Production

  • Turns flat sheets into finished booklets
  • Performs saddle, side, and corner-stitching
  • Processes CD to letter-size booklets

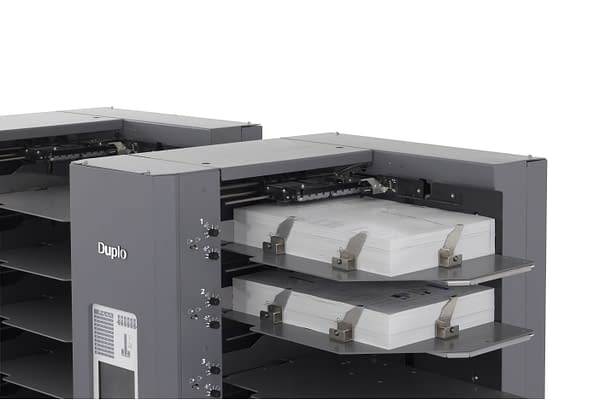

With the fully automated 350 Booklet System, the DBM-350/T Bookletmaker and Trimmer integrate the stitcher, folder, and face trimmer into an efficient system – eliminating the task of setting and folding signatures separately. The DSC-10/60i Suction Collator offers the flexibility to feed output from multiple presses, both offset and digital. Add the DSS-350 Square Spine module to give your booklets a lay flat finish. Cut job costs by removing manual set ups and finish jobs in quick turnarounds. With a speed of up to 3,000 booklets per hour, the 350 Booklet System produces a range of applications, from catalogs to collated work, on demand.

Features

  • Automated job set up and changeovers
  • 10-bin feeding per tower with dual fan technology
  • LCD control panel with 20-job memory
  • Small booklet and side/corner stitch kits for additional finishing



Key Applications

  • Manuals
  • Newsletters
  • CD-size booklets
  • Half letter-size brochures
  • Marketing collateral with spot UV covers

Specifications

SPEED Up to 3000 booklets per hour

MAXIMUM NUMBER OF BINS 40 (Four DSC-10/60i towers)

INPUT PAPER SIZE 5.82″ x 8.27″ to 12.60″ x 18.11″

PAPER WEIGHT Art coated paper 104.7 – 157gsm, Cover 52-300 gsm, Cover 79-300 gsm, Fine quality paper 52 – 157gsm

NUMBER OF SHEETS Up to 20 sheets
