150 Digital Booklet System

Home / Shop / Duplo / Sheet Feeding & Bookletmaking Systems / 150 Digital Booklet System

Precision Bookletmaking for Shorter Runs

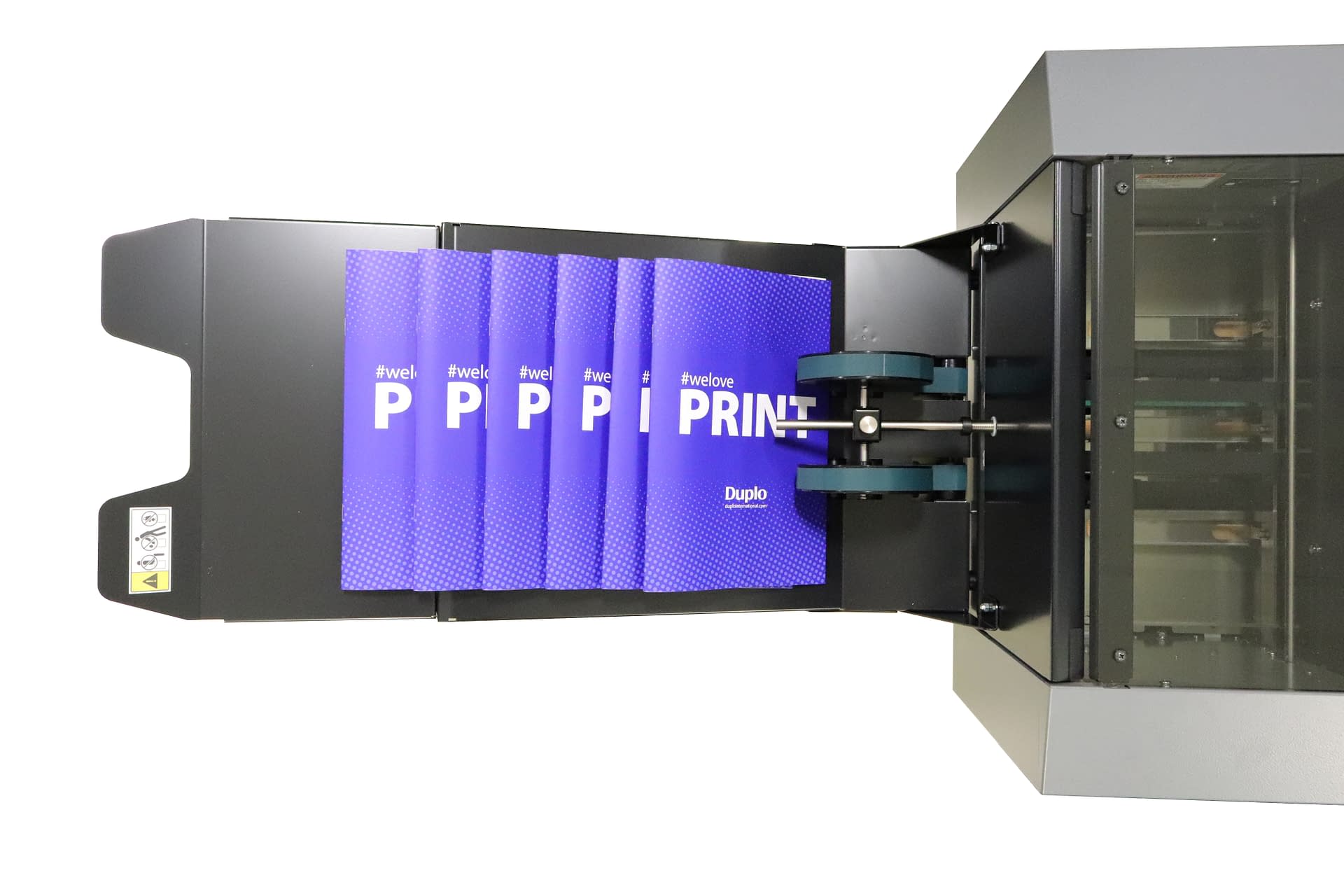

  • Turns pre-collated sets into finished booklets

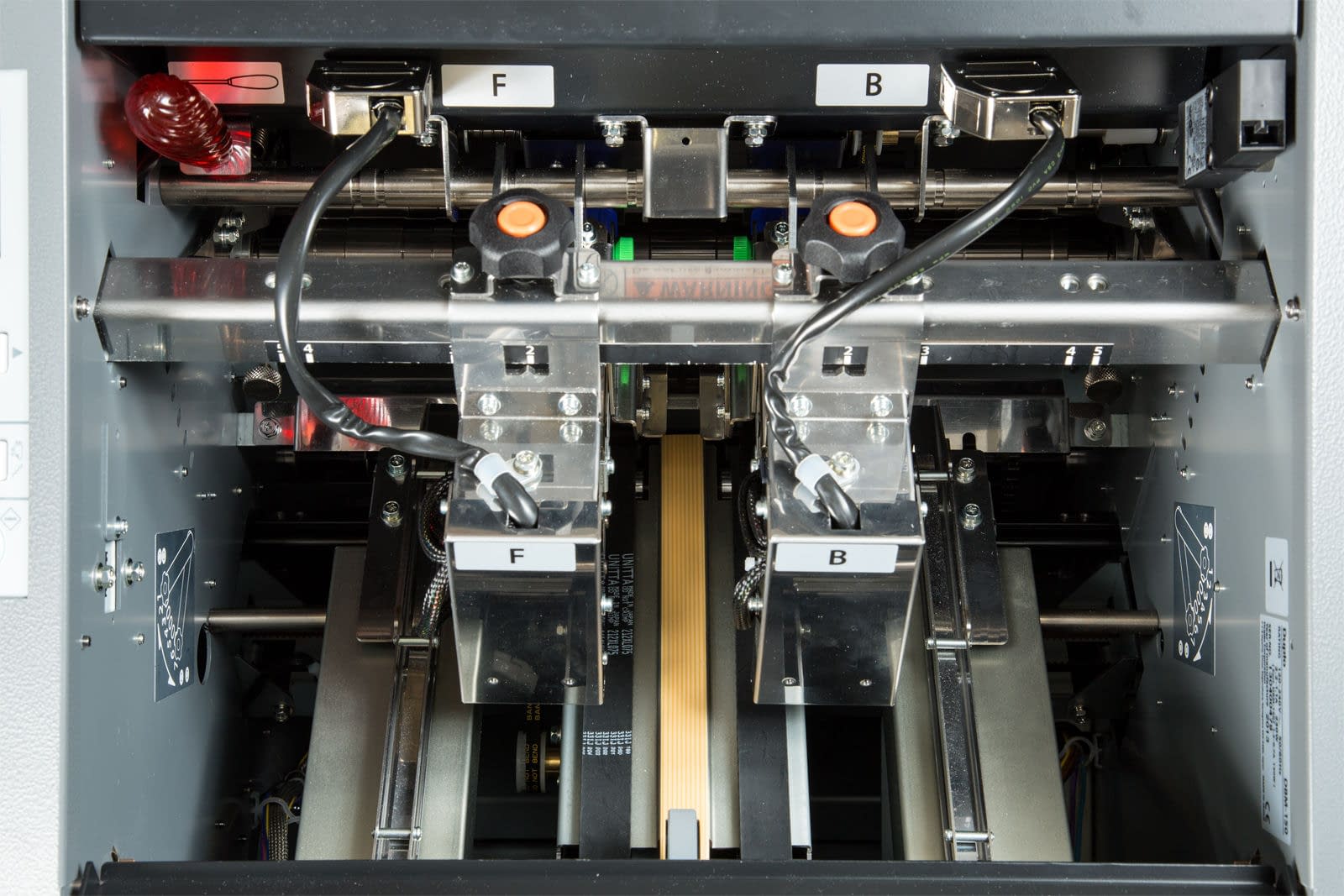

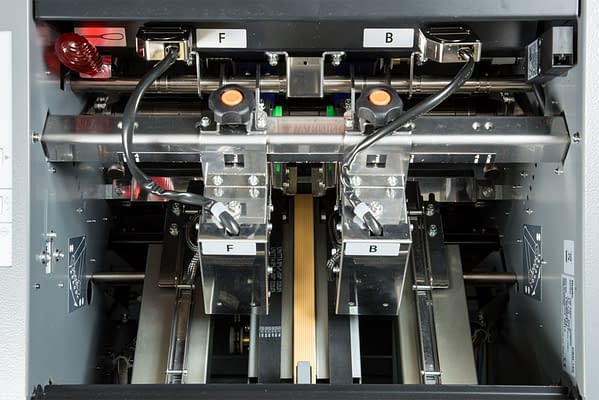

  • Performs saddle, side, and corner stapling
  • Processes CD to letter-size booklets

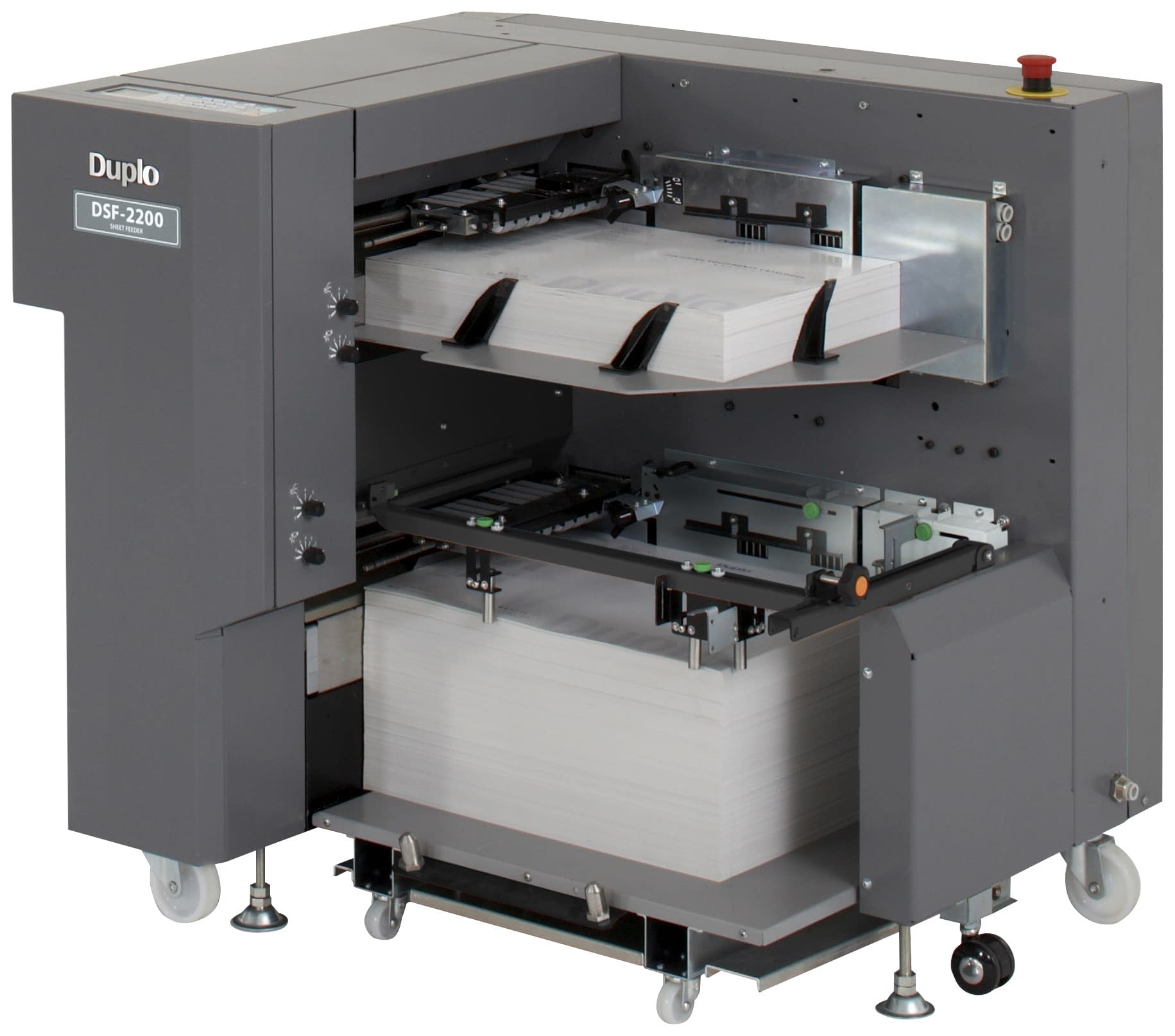

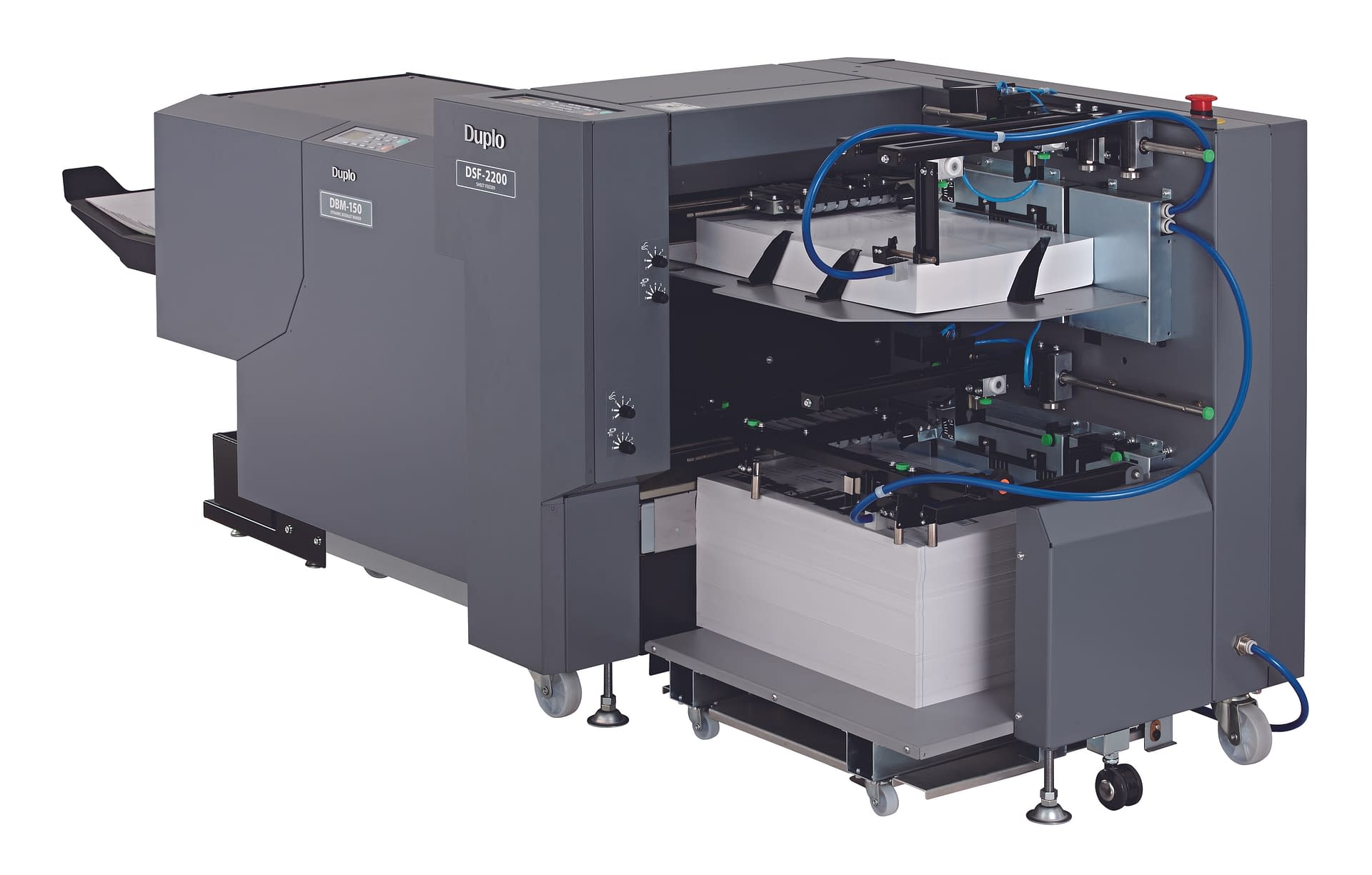

With the entry-level 150 Digital Booklet System, the DBM-150S/T Bookletmaker and Trimmer integrate the stapler, folder, and face trimmer into one. The DSF-2200 Sheet Feeder, with front/side air separation and an anti-static device, handles the output printed from your digital presses and offers a barcode reader option to process variable data with integrity. With a speed of up to 1,720 booklets per hour, the 150 Digital Booklet System delivers a variety of applications, from catalogs to corporate reports, on demand.


  • Automated job set up and changeovers

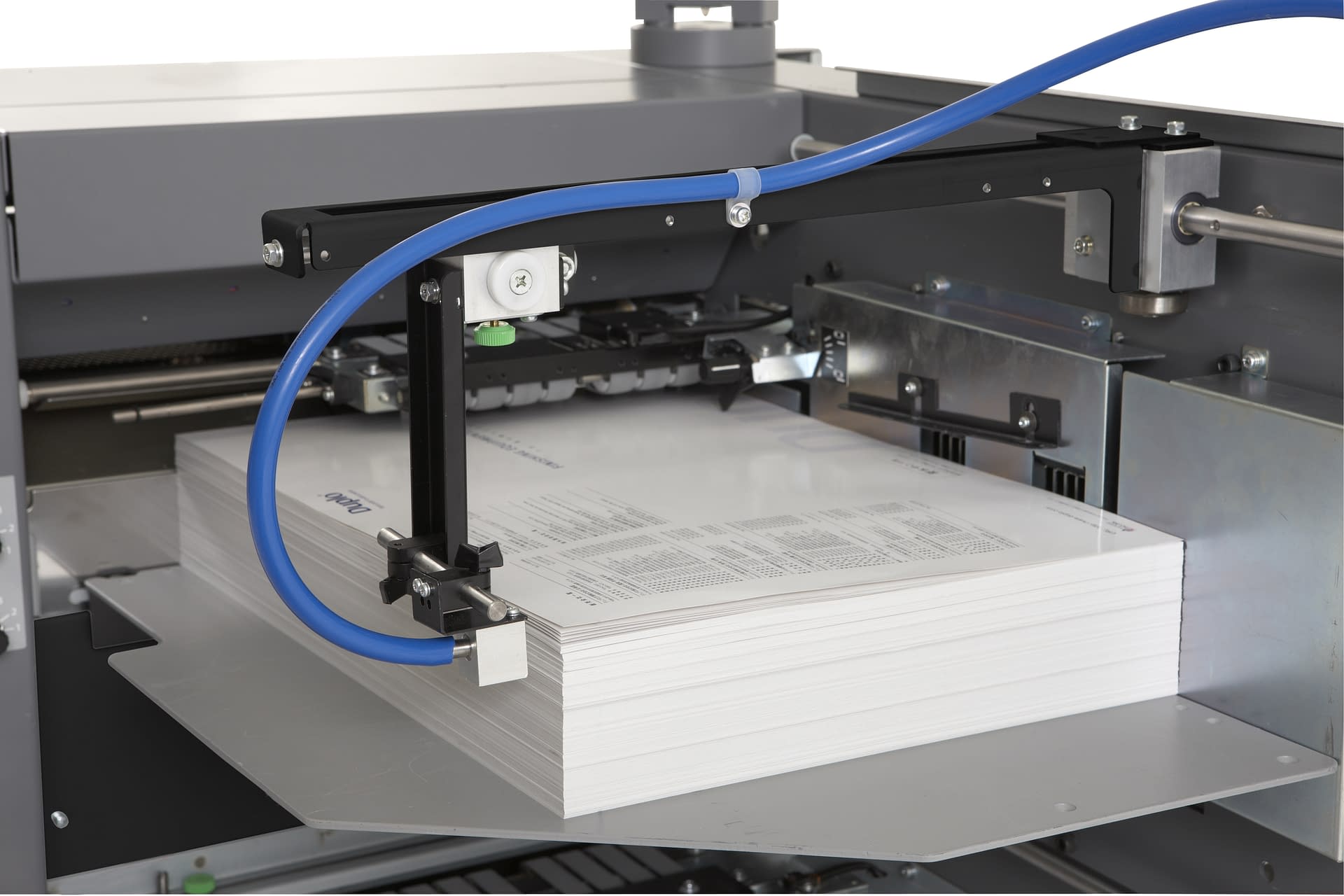

  • Two air suction bins with built-in end mark reader
  • LCD control panel with 16-job memory
  • PC Controller option to manage system from a PC


Key Applications

  • Manuals
  • Newsletters
  • CD-size booklets
  • Half letter-size brochures
  • Marketing collateral with spot UV covers


SPEED Up to 1720 booklets per hour

FEEDER CAPACITY Tray A 2.56″, Tray B 7.87″

INPUT PAPER SIZE 4.72″ x 8.27″ to 12.60″ x 18.11″

PAPER WEIGHT Art coated 79-300 gsm, Fine quality 52.3-300 gsm

NUMBER OF SHEETS Up to 25 sheets

OPTIONS 1D and 2D barcode reader, PC controller software, Pre-loading kit
