150 Booklet System

Precision Bookletmaking for Shorter Runs

  • Turns flat sheets into finished booklets
  • Performs saddle, side, and corner-stapling
  • Processes CD to letter-size booklets

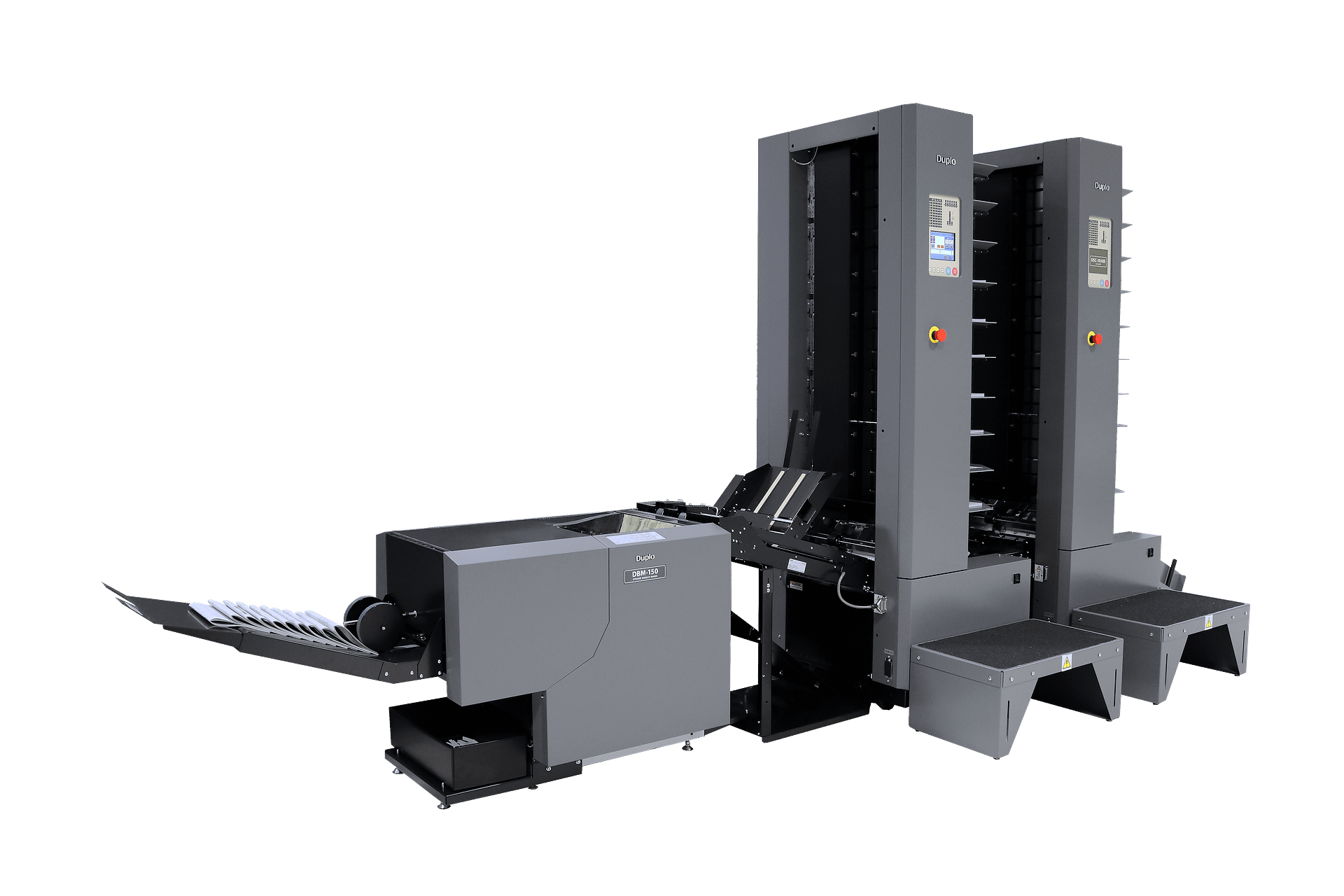

With the entry-level 150 Booklet System, the DBM-150/T Bookletmaker and Trimmer integrate the stapler, folder, and face trimmer into an efficient system – eliminating the task of setting and folding signatures separately. The DSC-10/60i Suction Collator offers the flexibility to feed output from multiple presses, both offset and digital. Cut job costs by removing time-consuming set ups and finish jobs in fast turnarounds. With a speed of up to 2,400 booklets per hour, the 150 Booklet System produces a range of offset and digitally-printed applications, from catalogs to collated work, on demand.

Features

  • Automated job set up and changeovers
  • 10-bin feeding per tower with dual fan technology

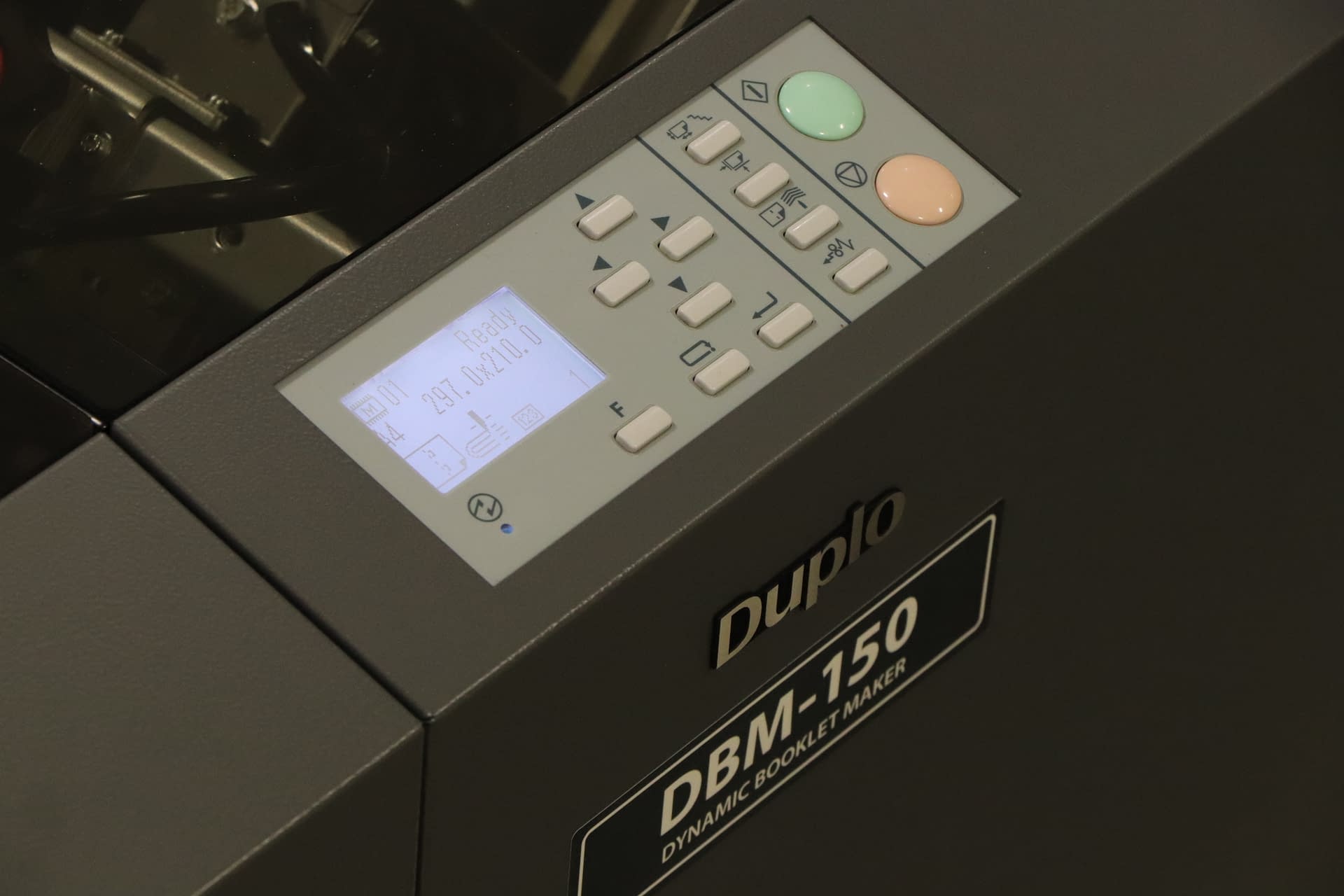

  • LCD control panel with 16-job memory

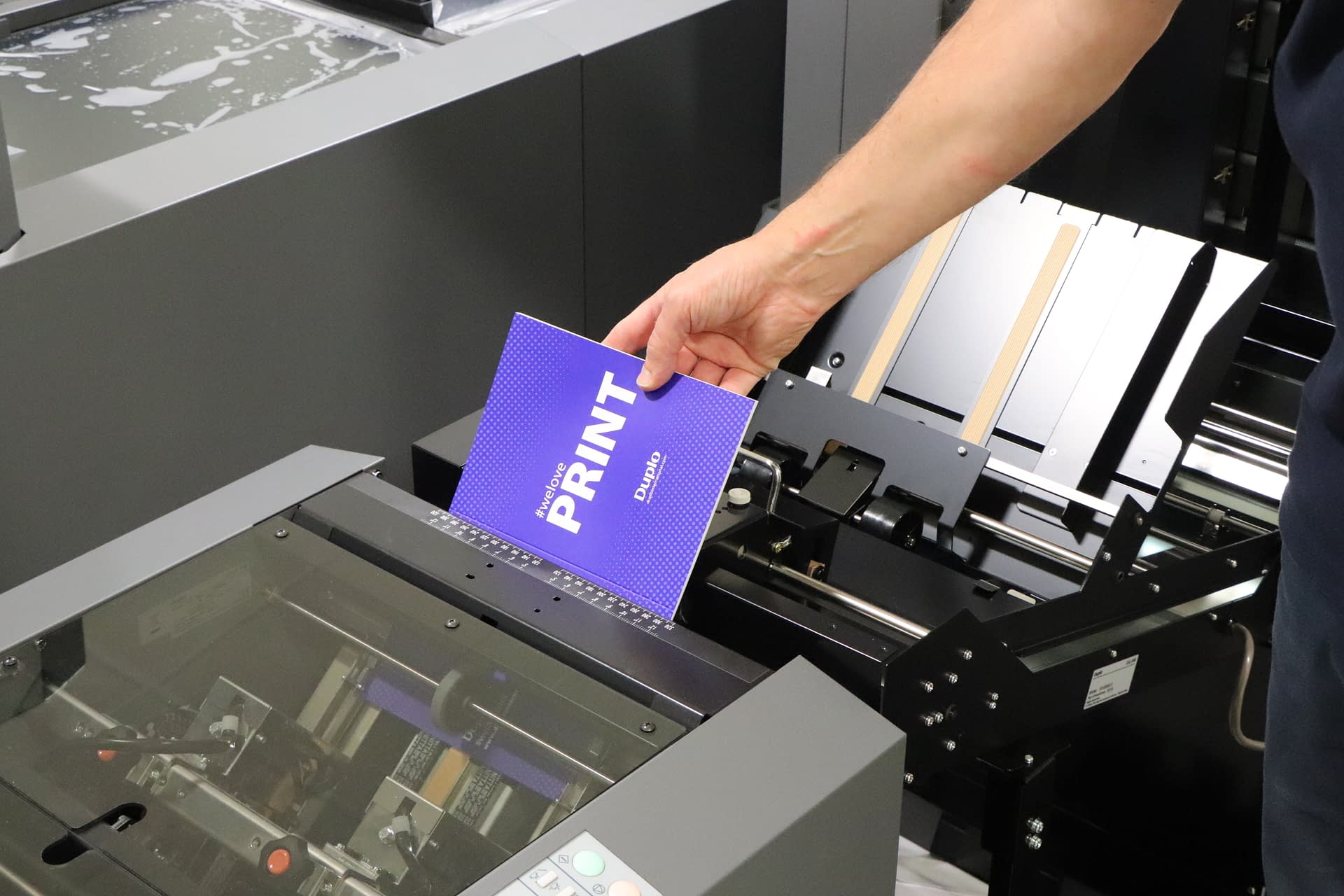

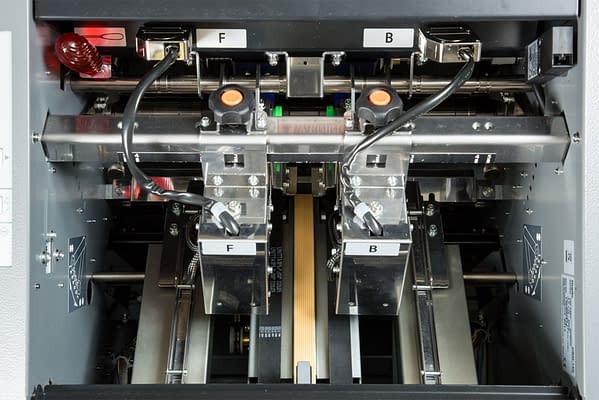

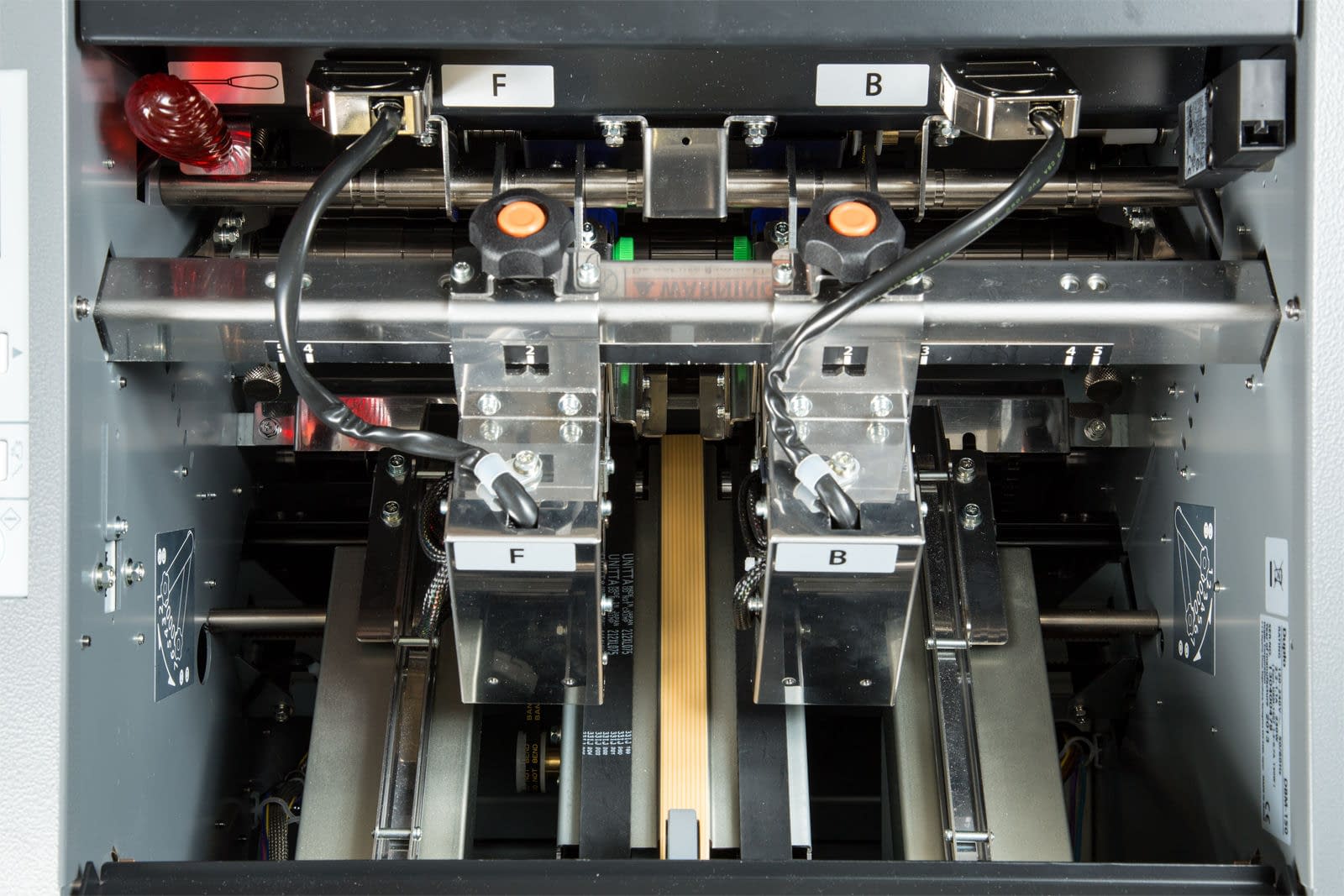

  • Standard side/corner staple kit and manual feed



Key Applications

  • Manuals
  • Newsletters
  • CD-size booklets
  • Half letter-size brochures
  • Marketing collateral with spot UV covers

Specifications

SPEED Up to 2400 booklets per hour

MAXIMUM NUMBER OF BINS 20 (Two DSC-10/60i towers)

INPUT PAPER SIZE 4.72″ x 8.27″ to 12.60″ x 18.11″

PAPER WEIGHT Art coated paper 79 – 157gsm, Cover 52-300 gsm, Cover 79-300 gsm, Fine quality paper 52 – 157gsm

NUMBER OF SHEETS Up to 25 sheets

OPTIONS DBM-400STR Deep Pile Stacker, Envelope kit, Ultrasonic sensor kit
